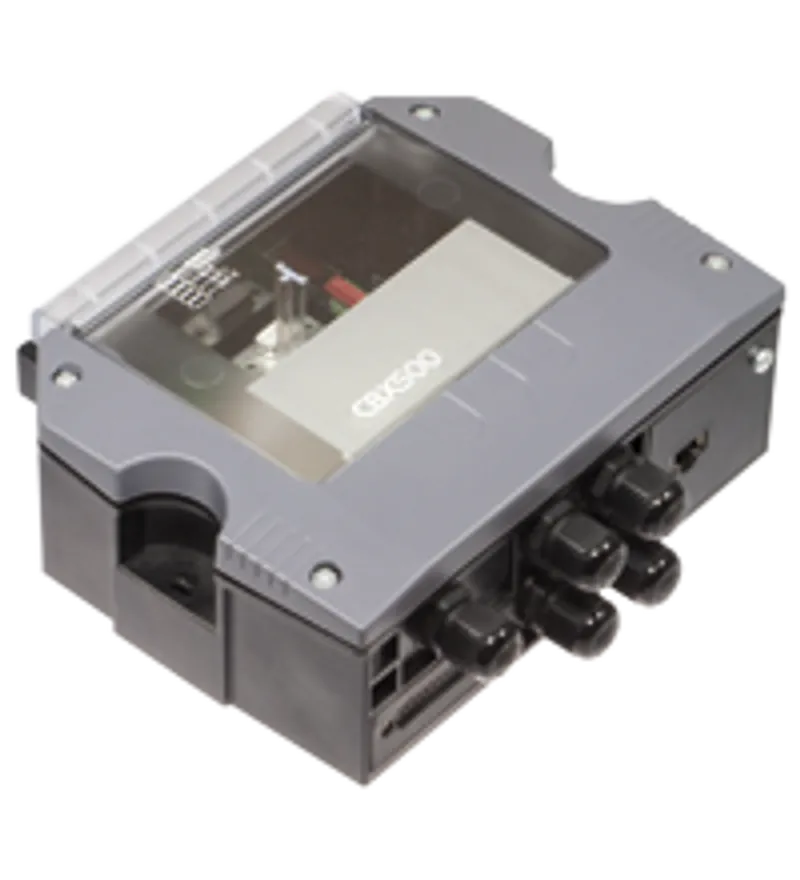

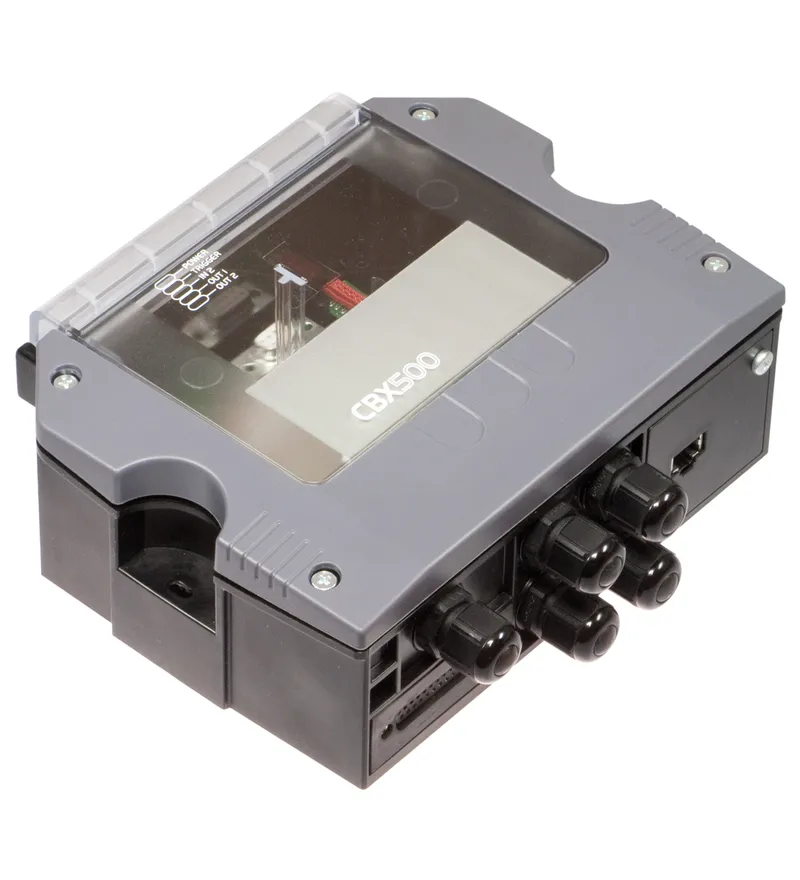

Pepperl Fuchs CBX500-KIT-B17
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Ethernet Devices |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CBX500-KIT-B17 be shipped?
CBX500-KIT-B17 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CBX500-KIT-B17 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CBX500-KIT-B17 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CBX500-KIT-B17, subject to availability and destination.
Connector box for barcode scanner. PROFINET Connector box for barcode scanner, Connect up to 32 scanners to a network with ID-Net<SUP>TM</SUP>, Easy scanner connection by means of clamp terminals. Display elements: 5 LEDs (POWER, TRIGGER, IN 2, OUT 1, OUT 2). Operating voltage: 10 ... 30 V DC PELV. Current consumption: max. 2.5 A. Power consumption: max. 3 W. Physical: Ethernet. Protocol: PROFINET IO. Transfer rate: 100 MBit/s. Directive conformity: 89/336 EWG. Standard conformity: . Noise immunityEN 61000-6-2Degree of protectionEN 60529Shock and impact resistanceEN 60068-2-27Vibration resistanceEN 60068-2-6: . Noise immunity: EN 61000-6-2. Degree of protection: EN 60529. Shock and impact resistance: EN 60068-2-27. Vibration resistance: EN 60068-2-6. Ambient temperature: 0 ... 50 °C (32 ... 122 °F). Storage temperature: -20 ... 70 °C (-4 ... 158 °F). Relative humidity: 90 % , noncondensing. Shock resistance: 30G ; 11 ms ; 3 impacts on each axis. Vibration resistance: 1.5 mm ; 10 ... 55 Hz ; 2 hours on each axis. Degree of protection: IP20. Connection: 25-pin Sub-D socket for Barcode scanner M16 cable gland for system connection (5x) , RJ-45 socket, 8-pin .... Material: . HousingPC (Polycarbonate): . Housing: PC (Polycarbonate). Mass: 780 g. Dimensions: . Height71 mmWidth192 mmDepth180 mm: . Height: 71 mm. Width: 192 mm. Depth: 180 mm
Specifications
Indicators/operating means
| Display elements | 5 LEDs (POWER, TRIGGER, IN 2, OUT 1, OUT 2) |
Electrical specifications
| Operating voltage | 10 ... 30 V DC PELV UB |
| Current consumption | max. 2.5 A |
| Power consumption | max. 3 W P0 |
Interface
| Physical | Ethernet |
| Protocol | PROFINET IO |
| Transfer rate | 100 MBit/s |
Compliance with standards and directives
| Directive conformity | 89/336 EWG |
| Standard conformity | |
| Noise immunityEN 61000-6-2Degree of protectionEN 60529Shock and impact resistanceEN 60068-2-27Vibration resistanceEN 60068-2-6 | Noise immunity |
| Noise immunity | EN 61000-6-2 |
| Degree of protection | EN 60529 |
| Shock and impact resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
Ambient conditions
| Ambient temperature | 0 ... 50 °C (32 ... 122 °F) |
| Storage temperature | -20 ... 70 °C (-4 ... 158 °F) |
| Relative humidity | 90 % , noncondensing |
| Shock resistance | 30G ; 11 ms ; 3 impacts on each axis |
| Vibration resistance | 1.5 mm ; 10 ... 55 Hz ; 2 hours on each axis |
Mechanical specifications
| Degree of protection | IP20 |
| Connection | 25-pin Sub-D socket for Barcode scanner M16 cable gland for system connection (5x) , RJ-45 socket, 8-pin ... |
| Material | |
| HousingPC (Polycarbonate) | Housing |
| Housing | PC (Polycarbonate) |
| Mass | 780 g |
| Dimensions | |
| Height71 mmWidth192 mmDepth180 mm | Height |
| Height | 71 mm |
| Width | 192 mm |
| Depth | 180 mm |
