Pepperl Fuchs 50FY41-V4A-50
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Magnetic Field Sensors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 50FY41-V4A-50 be shipped?
50FY41-V4A-50 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 50FY41-V4A-50 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 50FY41-V4A-50 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 50FY41-V4A-50, subject to availability and destination.

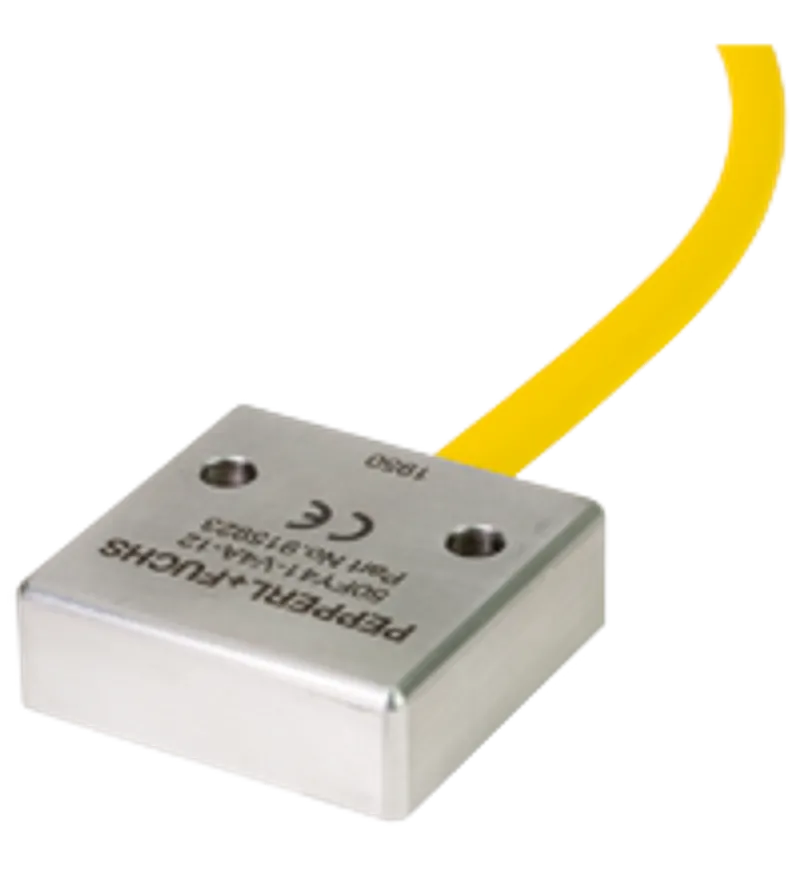

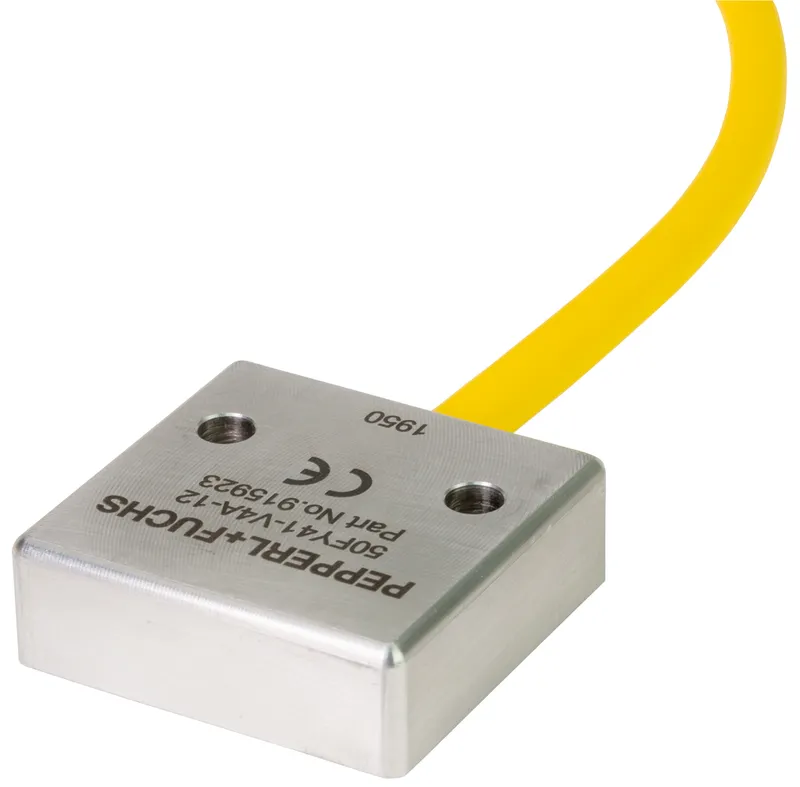

Magnetic field sensor. Switching function: Normally open (NO), Output type: PNP/NPN, Rated operating distance: 2.5 mm at 0 mm offset, 1.3 mm at 3.5 mm offset, 0 mm at 4.0 mm offset, Installation: non-flush, Output polarity: DC, Output type: 4-wire, Construction type: Rectangular, Series: Rectangular type, Threading: without, Type of voltage: DC, Connection type: cable, Housing material: 316 stainless steel, Degree of protection: IP69K. Switching function: Normally open (NO). Output type: PNP/NPN. Rated operating distance: 2.5 mm at 0 mm offset, 1.3 mm at 3.5 mm offset, 0 mm at 4.0 mm offset. Installation: non-flush. Output polarity: DC. Output type: 4-wire. Operating voltage: 10 ... 12 V. Short-circuit protection: NO. Voltage drop: 7 V @ 10 K load, 12 V supply. Operating current: 0.5 mA. Current consumption: 30 mA. Standard conformity: . StandardsIEC 60947-5-2:2012 IEC 60947-5-3:2013 IEC 61236-3-1:2008: . Standards: IEC 60947-5-2:2012 IEC 60947-5-3:2013 IEC 61236-3-1:2008. CE conformity: 2014/30/EU. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 12 V DC. Ambient temperature: -40 ... 100 °C (-40 ... 212 °F). Connection type: cable. Housing material: 316 stainless steel. Sensing face: 316 stainless steel. Degree of protection: IP69K. Cable: . Wire end ferrulesyesCable diameter6.35 mm ± 0.4 mmBending radius> 10 x cable diameterMaterialPVCColoryellowNumber of cores4Core cross section0.34 mm2LengthL15 m: . Wire end ferrules: yes. Cable diameter: 6.35 mm ± 0.4 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: yellow. Number of cores: 4. Core cross section: 0.34 mm2. Length: 15 m. Dimensions: . Width39 mmDepth12.7 mmLength39 mm: . Width: 39 mm. Depth: 12.7 mm. Length: 39 mm. Note: Only approved for use with FYQLA1-140R-3 and KE5D2-6H/2R-SUse only with actuator 52FY31-V4A
Specifications
General specifications
| Switching function | Normally open (NO) |
| Output type | PNP/NPN |
| Rated operating distance | 2.5 mm at 0 mm offset, 1.3 mm at 3.5 mm offset, 0 mm at 4.0 mm offset sn |
| Installation | non-flush |
| Output polarity | DC |

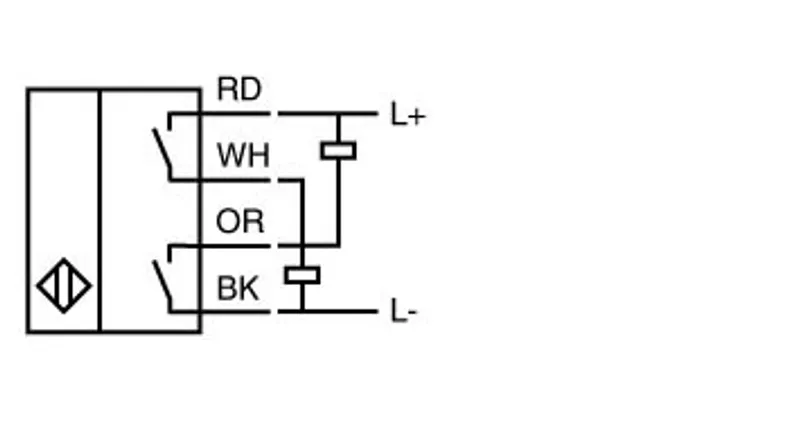

| Output type | 4-wire |
Nominal ratings
| Operating voltage | 10 ... 12 V UB |
| Short-circuit protection | NO |
| Voltage drop | 7 V @ 10 K load, 12 V supply Ud |
| Operating current | 0.5 mA IL |
| Current consumption | 30 mA |
Compliance with standards and directives
| Standard conformity | |
| StandardsIEC 60947-5-2:2012 IEC 60947-5-3:2013 IEC 61236-3-1:2008 | Standards |
| Standards | IEC 60947-5-2:2012 IEC 60947-5-3:2013 IEC 61236-3-1:2008 |
Approvals and certificates
| CE conformity | 2014/30/EU |
| UL approval | cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 12 V DC |
Ambient conditions
| Ambient temperature | -40 ... 100 °C (-40 ... 212 °F) |
Mechanical specifications
| Connection type | cable |
| Housing material | 316 stainless steel |
| Sensing face | 316 stainless steel |
| Degree of protection | IP69K |
| Cable | |
| Wire end ferrulesyesCable diameter6.35 mm ± 0.4 mmBending radius> 10 x cable diameterMaterialPVCColoryellowNumber of cores4Core cross section0.34 mm2LengthL15 m | Wire end ferrules |
| Wire end ferrules | yes |
| Cable diameter | 6.35 mm ± 0.4 mm |
| Bending radius | > 10 x cable diameter |
| Material | PVC |
| Color | yellow |
| Number of cores | 4 |
| Core cross section | 0.34 mm2 |
| Length | 15 m L |

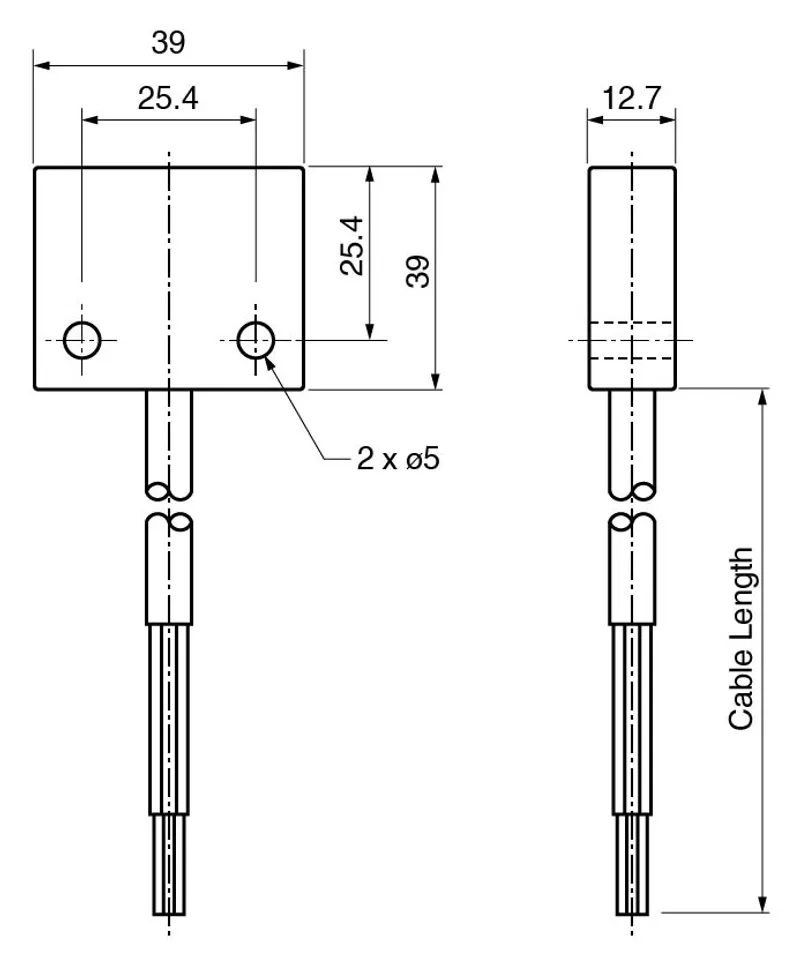

| Dimensions | |
| Width39 mmDepth12.7 mmLength39 mm | Width |
| Width | 39 mm |
| Depth | 12.7 mm |
| Length | 39 mm |

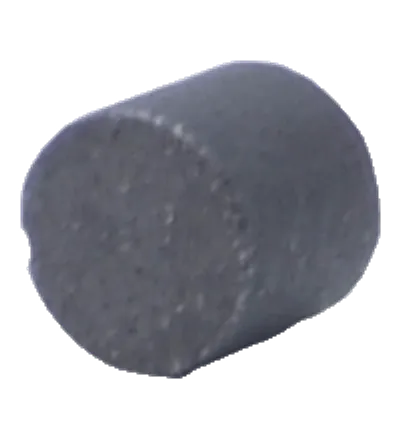

| Note | Only approved for use with FYQLA1-140R-3 and KE5D2-6H/2R-SUse only with actuator 52FY31-V4A |
