Pepperl Fuchs 50FY41-V4A-6-KIT
Magnetic field sensor
- MPN
- 50FY41-V4A-6-KIT
- Category
- Magnetic Field Sensors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs 50FY41-V4A-6-KIT?
Hall Effect Sensor
Sensing range 2.5 mm
4-wire DC
Magnet and Hall Effect Sensor included in kit
Switching function: Normally open (NO), Output type: PNP/NPN, Rated operating distance: 2.5 mm at 0 mm offset, 1.3 mm at 3.5 mm offset, 0 mm at 4.0 mm offset, Installation: non-flush, Output polarity: DC, Output type: 4-wire, Construction type: Rectangular, Series: Rectangular type, Threading: without, Type of voltage: DC, Connection type: cable, Housing material: 316 stainless steel, Degree of protection: IP69K
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70120924 |
| Switching function | Normally open (NO) |
| Output type | PNP/NPN |
| Rated operating distance | 2.5 mm at 0 mm offset, 1.3 mm at 3.5 mm offset, 0 mm at 4.0 mm offset sn |
| Installation | non-flush |
| Output polarity | DC |
| Output type | 4-wire |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Nominal ratings
| Operating voltage | 10 ... 12 V UB |
| Short-circuit protection | NO |
| Voltage drop | 7 V @ 10 K load, 12 V supply Ud |
| Operating current | 0.5 mA IL |
| Current consumption | 30 mA |
Compliance with standards and directives
| Standard conformity: Standards | IEC 60947-5-2:2012 IEC 60947-5-3:2013 IEC 61236-3-1:2008 |
Approvals and certificates
| CE conformity | 2014/30/EU |
| UL approval | cULus Listed, General Purpose |
Ambient conditions
| Ambient temperature | -40 ... 100 °C (-40 ... 212 °F) |
Mechanical specifications
| Connection type | cable |
| Housing material | 316 stainless steel |
| Sensing face | 316 stainless steel |
| Degree of protection | IP69K |
| Cable: Cable diameter | 6.4 mm ± 0.4 mm |
| Cable: Bending radius | > 10 x cable diameter |
| Cable: Material | PVC |
| Cable: Color | yellow |
| Cable: Number of cores | 4 |
| Cable: Core cross section | 0.34 mm2 |
| Cable: Length | 1.8 m L |
| Dimensions: Width | 39 mm |
| Dimensions: Depth | 12.7 mm |
| Dimensions: Length | 39 mm |

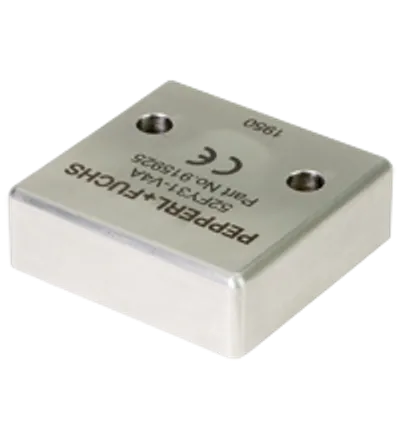

| Note | Only approved for use with FYQLA1-140R-3 and KE5D2-6H/2R-S Use only with actuator 52FY31-V4A |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
50FY41-V4A-6-KIT: frequently asked questions
When can 50FY41-V4A-6-KIT be shipped?
50FY41-V4A-6-KIT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 50FY41-V4A-6-KIT in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 50FY41-V4A-6-KIT and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 50FY41-V4A-6-KIT, subject to availability and destination.
