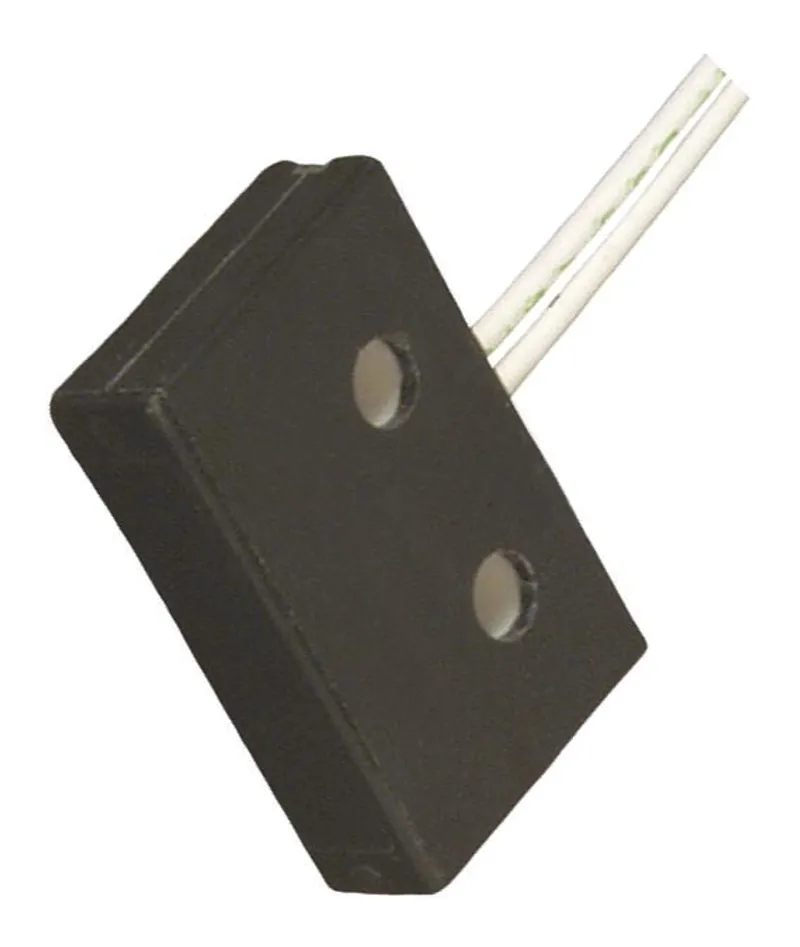

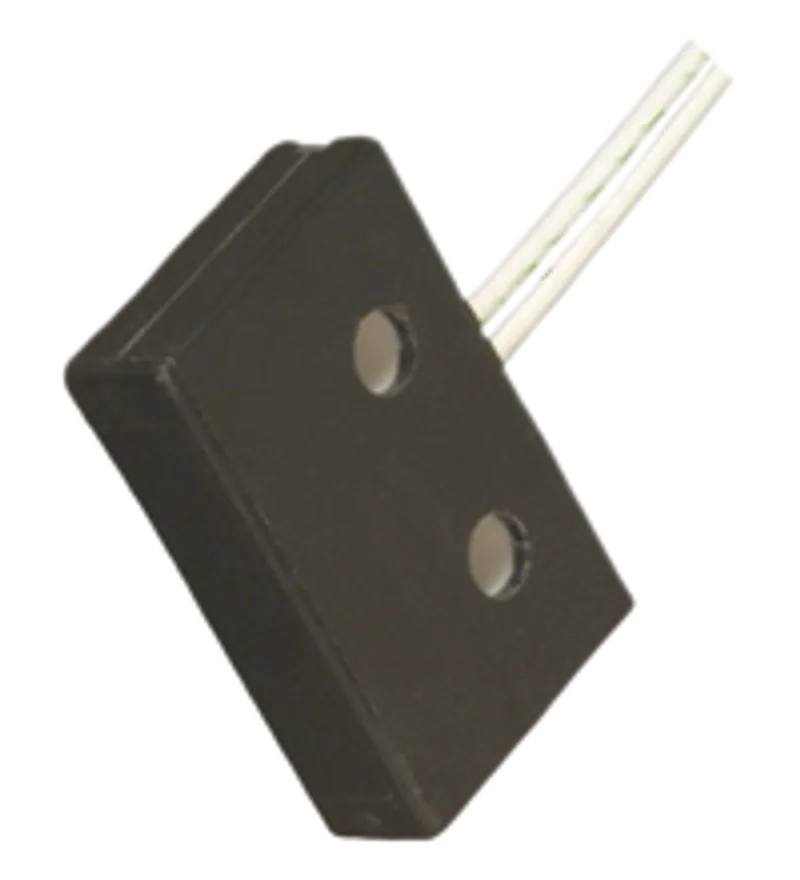

Pepperl Fuchs 50FR2-3-1
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Magnetic Field Sensors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 50FR2-3-1 be shipped?
50FR2-3-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 50FR2-3-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 50FR2-3-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 50FR2-3-1, subject to availability and destination.
Magnetic field sensor. Switching function: Normally open (NO), Output type: Reed Contact, Installation: non-flush, Output polarity: AC/DC, Output type: 2-wire AC/DC, Construction type: Rectangular, Series: Rectangular -Magnetic Prox. Switches, Threading: without, Operating voltage: 100 V DC, 250 mA 115 V AC, 250 mA, Connection type: cable PVDF , 914 mm, Housing material: Phenolic, Degree of protection: IP68. Switching function: Normally open (NO). Output type: Reed Contact. Rated operating distance: 11.4 mm. Installation: non-flush. Output polarity: AC/DC. Output type: 2-wire AC/DC. Mechanical life: 3 x 107 operations. Operating voltage: 100 V DC, 250 mA 115 V AC, 250 mA. Hysteresis: 22 ... 145 %. Contact resistance: 0.2 Ω. Insulation resistance: min. 100 MΩ at 200 V DC. Dielectric strength: 200 V AC, 60 Hz. Release point: max. 17.8 mm. Electrical rating: AC supply: 10 VA, 132 V AC, 750 mA DC supply: 10 W, 100 V DC, 300 mA. Ambient temperature: -40 ... 125 °C (-40 ... 257 °F). Connection type: cable PVDF , 914 mm. Core cross section: 0.5 mm2. Housing material: Phenolic. Sensing face: Phenolic. Degree of protection: IP68. Dimensions: . Height8.9 mmWidth35.6 mmDepth22.9 mm: . Height: 8.9 mm. Width: 35.6 mm. Depth: 22.9 mm
Specifications
General specifications

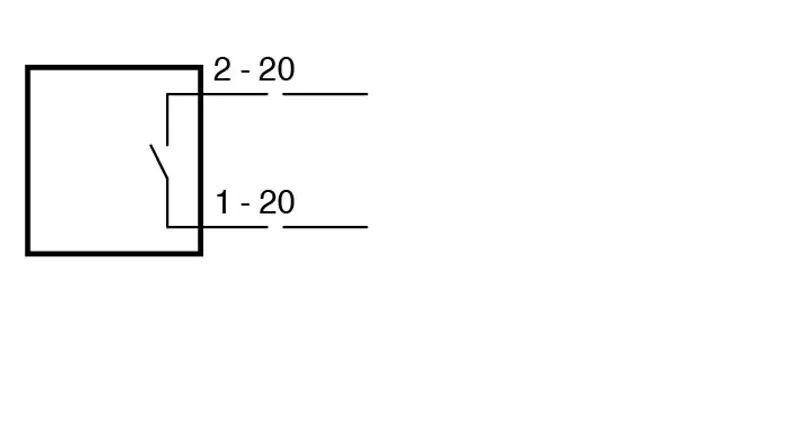

| Switching function | Normally open (NO) |
| Output type | Reed Contact |
| Rated operating distance | 11.4 mm sn |
| Installation | non-flush |
| Output polarity | AC/DC |
| Output type | 2-wire AC/DC |
| Mechanical life | 3 x 107 operations |
Nominal ratings
| Operating voltage | 100 V DC, 250 mA 115 V AC, 250 mA UB |
| Hysteresis | 22 ... 145 % H |
| Contact resistance | 0.2 Ω |
| Insulation resistance | min. 100 MΩ at 200 V DC |
| Dielectric strength | 200 V AC, 60 Hz |
| Release point | max. 17.8 mm |
Electrical specifications
| Electrical rating | AC supply: 10 VA, 132 V AC, 750 mA DC supply: 10 W, 100 V DC, 300 mA |
Ambient conditions
| Ambient temperature | -40 ... 125 °C (-40 ... 257 °F) |
Mechanical specifications
| Connection type | cable PVDF , 914 mm |
| Core cross section | 0.5 mm2 |
| Housing material | Phenolic |
| Sensing face | Phenolic |
| Degree of protection | IP68 |

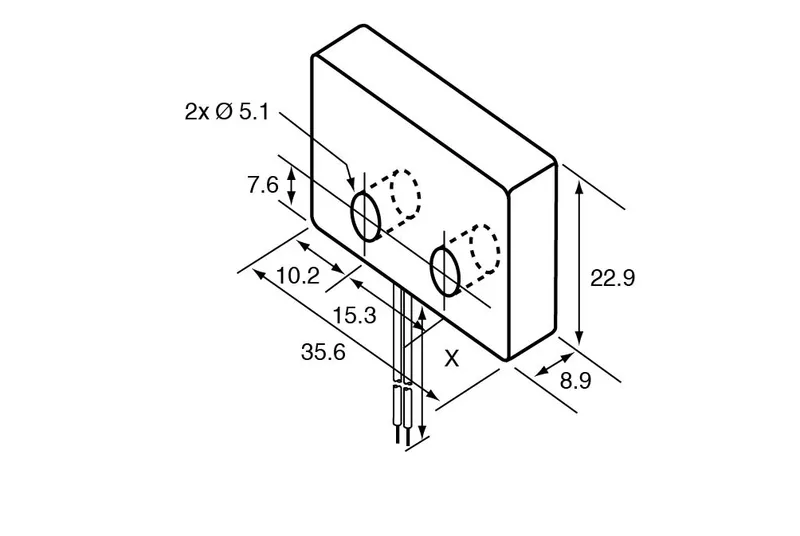

| Dimensions | |
| Height8.9 mmWidth35.6 mmDepth22.9 mm | Height |
| Height | 8.9 mm |
| Width | 35.6 mm |
| Depth | 22.9 mm |
