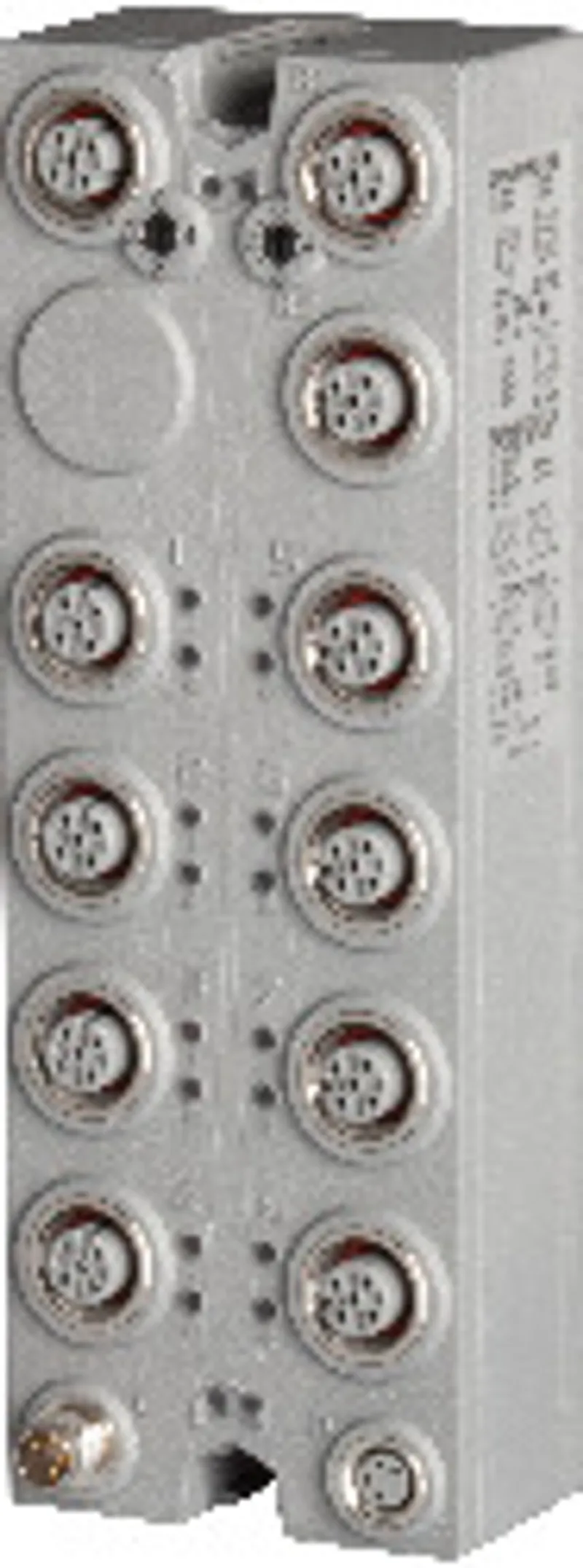

B&R X67BC8780.L12 – Bus controller, POWERLINK (V1/V2) controlled node
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Bus controller modules |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can X67BC8780.L12 be shipped?
X67BC8780.L12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X67BC8780.L12 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X67BC8780.L12 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X67BC8780.L12, subject to availability and destination.
• POWERLINK
• 8 CAN interfaces
• M12 connections
• Integrated hub for efficient cabling
This bus controller makes it possible to connect 8 CAN interfaces to the POWERLINK network. The CAN interfaces are operated via an integrated hub, which increases the total cable length defined by classical CAN bus topology.
POWERLINK is a standard protocol for Fast Ethernet equipped with hard real-time characteristics. The Ethernet POWERLINK Standardization Group (EPSG) ensures openness and continuous development: www.ethernet-powerlink.org .
Specifications
Short description
| Bus controller | POWERLINK (V1/V2) controlled node |
General information
| B&R ID code – Bus controller | 0xED84 |
| Diagnostics – Outputs | Yes, using LED status indicator and software |
| Diagnostics – Power supply | Yes, using LED status indicator and software |
| Support – Dynamic node allocation (DNA) | Yes |
| Connection type – Fieldbus | M12, D-coded |
| Connection type – Inputs/Outputs | 8x M12, A-coded |
| Connection type – I/O power supply | M8, 4-pin |
| Power consumption – Internal I/O | 2.5 W |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Inputs/Outputs | 8 CAN interfaces |
| Insulation voltage between channel and bus | 500 V eff |
| Nominal voltage | 24 VDC |
| Status indicators | TX/RX per CAN interface, supply voltage, bus function |
Fieldbus
| Transfer – Physical layer | 100BASE-TX |
| Transfer – Half-duplex | Yes |
| Transfer – Full-duplex | No |
| Transfer – Autonegotiation | Yes |
| Transfer – Auto-MDI/MDIX | Yes |
| Type | POWERLINK (V1/V2) controlled node |
| Variant | 2x M12 interface (hub), 2x female connector on module |
| Line length | Max. 100 m between 2 stations (segment length) |
| Transfer rate | 100 Mbit/s |
| Hub propagation delay | 0.96 to 1 µs |
| Cycle time | 200 µs (note: The minimum cycle time specifies how far the bus cycle can be reduced without communication errors occurring.) |
Interfaces
| Type | CAN |
| Variant | 8x M12 interface (hub) |
| Max. distance | 1000 m |
| Transfer rate | Bus length ≤25 m: Max. 500 kbps; Bus length ≤100 m: Max. 250 kbps; Bus length ≤700 m: Max. 50 kbps (note: The actual transfer rate depends on the nodes (number and properties of the nodes) and the cable used.) |
| Hub propagation delay | 250 ns |
| Terminating resistor | Integrated in module |
Sensor/Actuator power supply
| Voltage | 9 to 32 V |
| Voltage drop for short-circuit protection at 0.5 A | Max. 2 VDC |
| Summation current | Max. 1.6 A (200 mA per channel) |
| Short-circuit proof | Yes |
Power supply
| Nominal voltage | 24 VDC |
| Voltage range | 9 to 32 VDC |
| Reverse polarity protection | Yes |
Electrical properties
| Electrical isolation | POWERLINK isolated from channel; Channel not isolated from channel |
Operating conditions
| Mounting orientation – Any | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP67 |
Ambient conditions
| Temperature – Operation | -25 to 60°C |
| Temperature – Derating | - |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
Mechanical properties
| Dimensions – Width | 53 mm |
| Dimensions – Height | 155 mm |
| Dimensions – Depth | 42 mm |
| Torque for connections – M8 | Max. 0.4 Nm |
| Torque for connections – M12 | Max. 0.6 Nm |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Data sheet X67BC8780.L12 | PDF · 2 MB · 1.27 (12/01/2025) - EN |
| POWERLINK Bus Controller User's Manual | PDF · 3 MB · 2.67 (05/07/2026) - EN |
| X67 System User´s Manual | PDF · 21 MB · 4.40 (08/27/2026) - EN |
CAD & dimension drawings
| STEP File X67BC8xxx.L12 | ZIP · 1 MB · 1.00 (04/22/2015) |
Certificates (3)
| EU Declaration ATEX X67 | PDF · 191 KB · 2021-04 (07/02/2021) |
| EU Declaration PLC X67 | PDF · 674 KB · 2024-02 (02/02/2024) |
| UK Declaration PLC X67 | PDF · 469 KB · 2024-02 (02/02/2024) |
