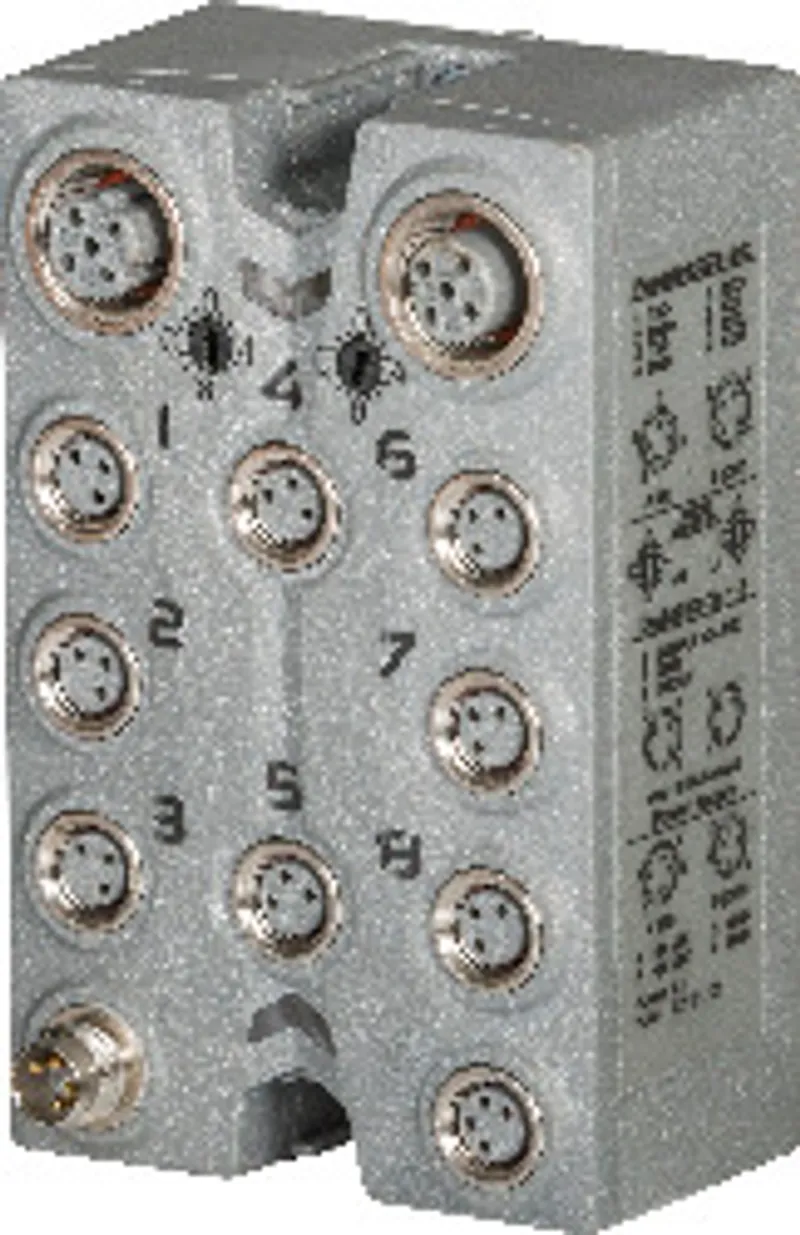

B&R X67BC8331 – Bus controller, POWERLINK (V1/V2) controlled node

Name: B&R X67BC8331 – Bus controller, POWERLINK (V1/V2) controlled node
Brand: B&R
SKU: X67BC8331

MPN: X67BC8331 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Bus controller modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	200 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can X67BC8331 be shipped?

X67BC8331 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X67BC8331 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X67BC8331 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X67BC8331, subject to availability and destination.

• POWERLINK V1/V2

• 8 digital channels, configurable as inputs or outputs

• I/O configuration and firmware update via the fieldbus

• Integrated connection to the local expansion via X2X Link for up to 250 additional modules

• Configurable I/O cycle (starting at 200 µs)

The bus controller makes it possible to connect X2X Link I/O nodes to POWERLINK. It is also possible to operate the X2X Link cycle synchronously 1:1 or synchronous to POWERLINK using a prescaler.

Additional X2X Link I/O nodes (X67 modules or other modules based on X2X Link) can be connected using the integrated X2X Link connection. Mechanically, POWERLINK is connected via an IP67-rated standard D-coded M12 Ethernet connector.

POWERLINK is a standard protocol for Fast Ethernet equipped with hard real-time characteristics. The POWERLINK Standardization Group (EPSG) ensures that the standard remains open and is continually developed:: www.ethernet-powerlink.org .

Specifications

Short description

Bus controller

POWERLINK (V1/V2) controlled node

General information

B&R ID code – Bus controller	0xA7A5
B&R ID code – Internal I/O module	0x1311
Diagnostics – Outputs	Yes, using LED status indicator and software
Diagnostics – I/O power supply	Yes, using LED status indicator and software
Support – Dynamic node allocation (DNA)	Yes
Connection type – Fieldbus	M12, D-coded
Connection type – X2X Link	M12, B-coded
Connection type – Inputs/Outputs	8x M8, 3-pin
Connection type – I/O power supply	M8, 4-pin
Power consumption – Fieldbus	3.5 W
Power consumption – Internal I/O	2.5 W
Power consumption – X2X Link power supply	4.2 W at maximum power output for connected I/O modules
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA IIA T5 Gc; IP67, Ta = 0 - Max. 60°C; TÜV 05 ATEX 7201X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KC	Yes
Inputs/Outputs	8 digital channels, configurable as inputs or outputs using software, inputs with additional functions
Insulation voltage between channel and bus	860 V eff
Nominal voltage	24 VDC
Sensor/Actuator power supply	0.5 A summation current
Status indicators	I/O function per channel, supply voltage, bus function
Power output	3 W X2X Link power supply for I/O modules

Interfaces

Transfer – Physical layer	100BASE-TX
Transfer – Half-duplex	Yes
Transfer – Full-duplex	No
Transfer – Autonegotiation	Yes
Transfer – Auto-MDI/MDIX	Yes
Min. cycle time " data-placement="top" data-html="true" data-container="body" data-content="The minimum cycle time specifies how far the bus cycle can be reduced without communication errors occurring."> – Fieldbus	200 μs
Min. cycle time " data-placement="top" data-html="true" data-container="body" data-content="The minimum cycle time specifies how far the bus cycle can be reduced without communication errors occurring."> – X2X Link	200 μs
Fieldbus	POWERLINK (V1/V2) controlled node
Type	Type 2 " data-placement="top" data-html="true" data-container="body" data-content="For additional information, see section "Communication / POWERLINK / General information / Hardware - CN" in Automation Help.">
Variant	M12 interface (female connector on module)
Line length	Max. 100 m between 2 stations (segment length)
Transfer rate	100 Mbit/s
Synchronization between bus systems possible	Yes

I/O power supply

Power consumption – Sensor/Actuator power supply	Max. 12 W " data-placement="top" data-html="true" data-container="body" data-content="The power consumption of the sensors and actuators connected to the module is not permitted to exceed 12 W.">
Nominal voltage	24 VDC
Voltage range	18 to 30 VDC
Integrated protective function	Reverse polarity protection

Sensor/Actuator power supply

Voltage	I/O power supply minus voltage drop for short-circuit protection
Voltage drop for short-circuit protection at 0.5 A	Max. 2 VDC
Summation current	Max. 0.5 A
Short-circuit proof	Yes

Digital inputs

Input filter – Hardware	≤10 μs (channels 1 to 4) / ≤70 µs (channels 5 to 8)
Input filter – Software	Default 0 ms, configurable between 0 and 25 ms in 0.2 ms intervals
Switching threshold – Low	<5 VDC
Switching threshold – High	>15 VDC
Input characteristics per EN 61131-2	Type 1
Input voltage	18 to 30 VDC
Input current at 24 VDC	Typ. 4 mA
Input circuit	Sink
Input resistance	Typ. 6 kΩ

Digital outputs

Switching delay – 0 → 1	<250 µs
Switching delay – 1 → 0	<270 µs
Switching frequency – Resistive load	Max. 100 Hz
Switching frequency – Inductive load	See section "Switching inductive loads".
Variant	Current-sourcing FET
Switching voltage	I/O power supply minus residual voltage
Nominal output current	2 A
Total nominal current	8 A
Output circuit	Source
Output protection	Thermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads, reverse polarity protection of the output power supply
Diagnostic status	Output monitoring with 10 ms delay
Leakage current when the output is switched off	5 µA
Switching on after overload shutdown	Approx. 10 ms (depends on the module temperature)
Residual voltage	<0.5 V at 2 A nominal current
Peak short-circuit current	<21 A
Braking voltage when switching off inductive loads	50 VDC

Electrical properties

Electrical isolation

Bus isolated from POWERLINK and channel; Channel not isolated from channel

Operating conditions

Mounting orientation – Any	Yes
Installation elevation above sea level	Max. 4000 m (no limitations)
Degree of protection per EN 60529	IP67

Ambient conditions

Temperature – Operation	-25 to 60°C
Temperature – Derating	See section "Derating".
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C

Mechanical properties

Dimensions – Width	53 mm
Dimensions – Height	85 mm
Dimensions – Depth	42 mm
Torque for connections – M8	Max. 0.4 Nm
Torque for connections – M12	Max. 0.6 Nm
Weight	200 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet X67BC8331	PDF · 3 MB · 3.16 (01/21/2026) - EN
POWERLINK Bus Controller User's Manual	PDF · 3 MB · 2.67 (05/07/2026) - EN
X67 System User´s Manual	PDF · 21 MB · 4.40 (08/27/2026) - EN

CAD & dimension drawings

3D File DXF/STEP X67

ZIP · 1 MB · 1.0 (05/15/2006)

Certificates (7)

2226379 CSA Certificate of Compliance X20 X67	PDF · 205 KB · 2026_09 (09/21/2026)
E115267 UL CoC X67	PDF · 345 KB · 2026_01 (01/29/2026)
EU Declaration ATEX X67	PDF · 191 KB · 2021-04 (07/02/2021)
EU Declaration PLC X67	PDF · 674 KB · 2024-02 (02/02/2024)
TÜV 05 ATEX 7201 X	PDF · 5 MB · 1.10 (03/24/2021)
UK Declaration PLC X67	PDF · 469 KB · 2024-02 (02/02/2024)
X20, X67 KC certificates	PDF · 7 MB · 2.00 (08/17/2026)
