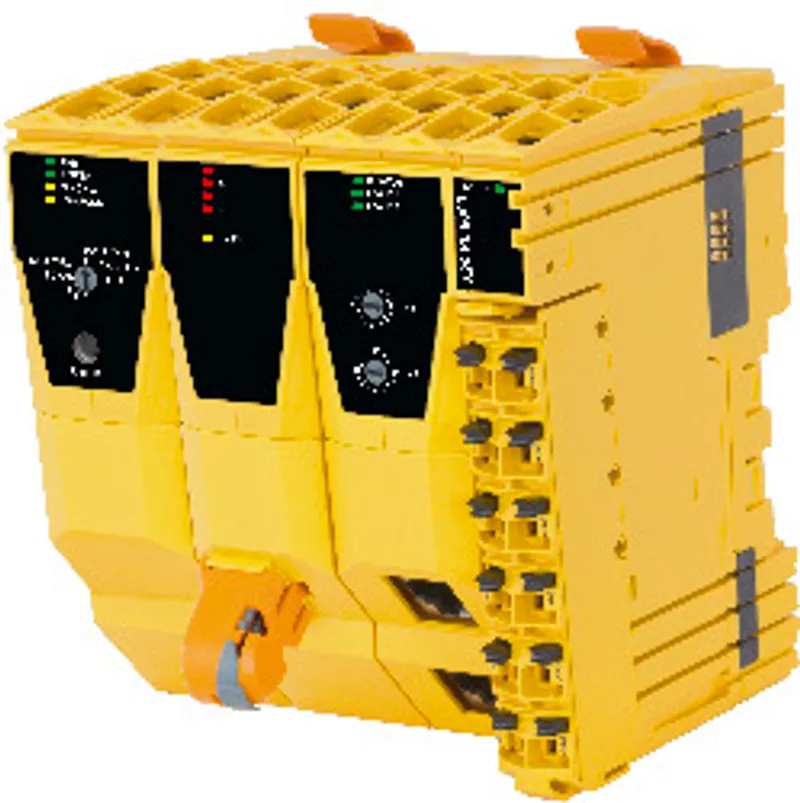

B&R X20SL8000 – Interfaces, POWERLINK

Name: B&R X20SL8000 – Interfaces, POWERLINK
Brand: B&R
SKU: X20SL8000

MPN: X20SL8000 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	CPUs
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	290 kg

Shipping & availability

When can X20SL8000 be shipped?

X20SL8000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X20SL8000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X20SL8000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20SL8000, subject to availability and destination.

SafeLOGIC controllers handle all central tasks within a safety-related application. Three different functional areas exist here. The configuration management system monitors the entire safety-related configuration of the application. When replacements are needed, the parameter management system makes sure that newly installed modules are assigned correct parameters that apply to the application. Lastly, SafeLOGIC handles the actual safety-related execution of the application program.

Accessories

Required accessories (order separately)

X20MK0203	Accessories — X20 SafeKEY, 8 MB, for the X20SL80xx series
X20MK0201	Accessories — X20 SafeKEY, 2 MB, for the X20SL80xx series

Specifications

Short description

Interfaces	POWERLINK
System module	CPU

General information

System requirements – Automation Studio	3.0.71 or later
System requirements – Automation Runtime	2.95 or later
System requirements – SafeDESIGNER	2.58 and later, up to 3.0
System requirements – Safety Release	1.1 and later, up to 1.6
Diagnostics – CPU function	Yes, using LED status indicator
Diagnostics – POWERLINK	Yes, using LED status indicator
Diagnostics – SafeKEY	Yes, using LED status indicator
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – Functional safety	cULus FSPC E361559; Energy and industrial systems; Certified for functional safety; ANSI UL 1998:2013
Certifications – Functional safety	IEC 61508, up to SIL 3 ; IEC 62061, up to SIL 3 ; ISO 13849-1, up to Cat. 4 / PL e ; IEC 61511, up to SIL 3
Certifications – Functional safety	EN 50156-1
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: A (0 to 45°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC21B ; Temperature: 5 - 45°C; Vibration: 0.7 g; EMC: Bridge and open deck
Certifications – KC	Yes
Cooling	Fanless
Status indicators	CPU function, POWERLINK, SafeKEY
Power consumption	5.1 W

Safety characteristics

EN ISO 13849-1:2015 – Category	Cat. 4
EN ISO 13849-1:2015 – PL	PL e
EN ISO 13849-1:2015 – DC	>94%
EN ISO 13849-1:2015 – MTTFD per channel	2500 years
EN ISO 13849-1:2015 – Mission time	Max. 20 years
IEC 61508:2010,; IEC 61511:2004,; EN 62061:2013 – Module	<1*10 -10
IEC 61508:2010,; IEC 61511:2004,; EN 62061:2013 – openSAFETY wired	Negligible
IEC 61508:2010,; IEC 61511:2004,; EN 62061:2013 – openSAFETY wireless	<110 -14 Number of openSAFETY packets per hour
IEC 61508:2010,; IEC 61511:2004,; EN 62061:2013 – SIL CL	SIL 3
IEC 61508:2010,; IEC 61511:2004,; EN 62061:2013 – SFF	>90%
IEC 61508:2010,; IEC 61511:2004,; EN 62061:2013 – PFD per channel	<2*10 -5
IEC 61508:2010,; IEC 61511:2004,; EN 62061:2013 – Proof test interval (PT)	20 years

Functionality

Number of supported safety nodes	Max. 20
Communication with each other	Communication only possible with SafeLOGIC controller SL8001 or SL8011
Support for machine options	No
SafeMOTION support	No
Shortest task class cycle time	1 ms

Fieldbus

Type	POWERLINK
Variant	Internal 2-port hub, 2x RJ45 shielded
Line length	Max. 100 m between 2 stations (segment length)
Transfer rate	100 Mbit/s
Cycle time	Max. 20 ms

Power supply

Nominal voltage	24 VDC -15% / +20%
Fuse	Integrated, cannot be replaced
Reverse polarity protection	Yes

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level	0 to 2000 m, no limitation
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	0 to 55°C
Temperature – Vertical mounting orientation	0 to 45°C
Temperature – Derating	-
Temperature – Storage	-25 to 70°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Dimensions – Width	87.5 +0.2 mm
Dimensions – Height	99 mm
Dimensions – Depth	75 mm
Note	Order application memory (SafeKEY) separately. ; X20 end cover plate (right) is included in delivery.; 12-pin X20 terminal block, safety-keyed, is included in delivery.; SafeKEY cover is included in delivery.
Weight	290 g
