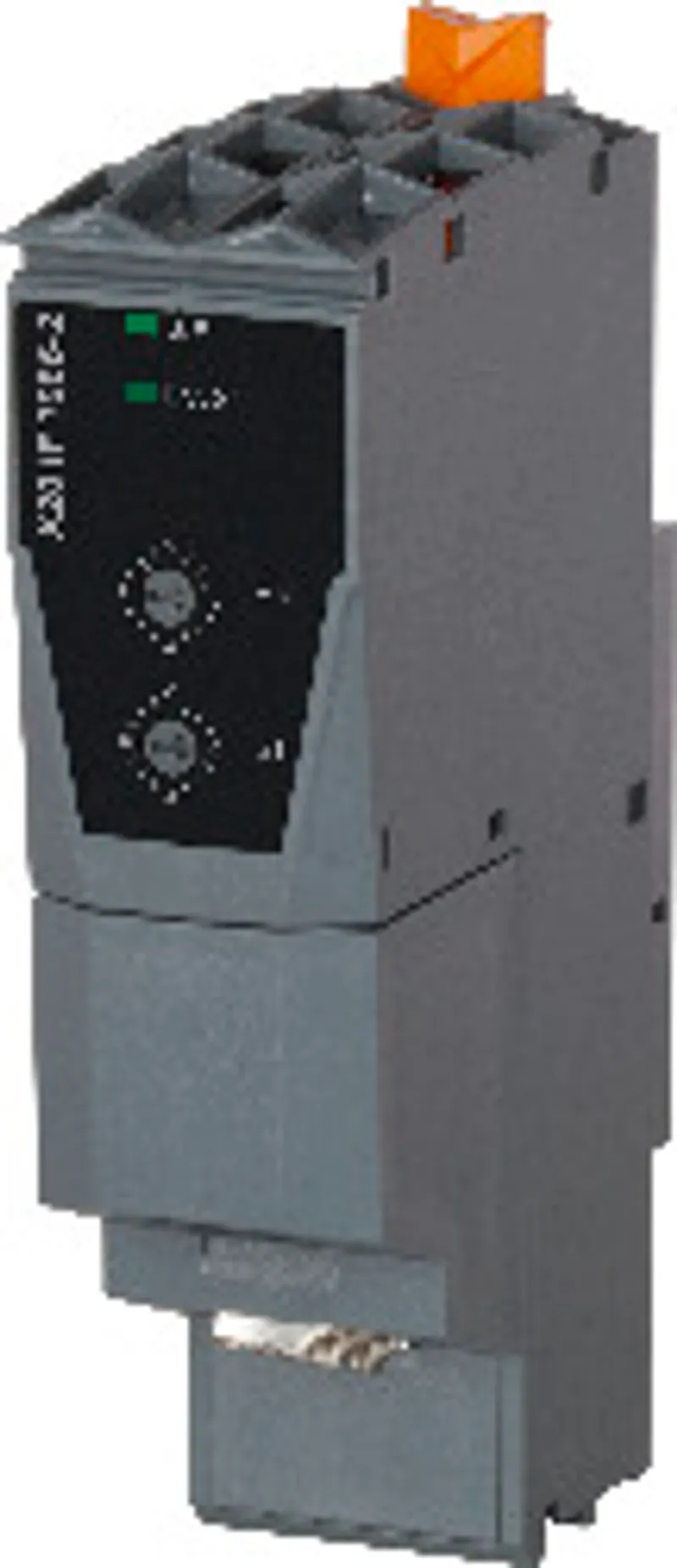

B&R X20IF1086-2

Communication module, 1x POWERLINK (V1/V2) managing or…

MPN: X20IF1086-2
Category: X20 interface module communication

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20IF1086-2?

POWERLINK for real-time Ethernet communication

100 Base-FX port

Poll response chaining

Dynamic Node Allocation (DNA)

The interface module is used for application-specific expansion of the X20 controllers. It is equipped with a POWERLINK interface.

This interface uses a 100 Base-FX port. The POWERLINK connection is made using 62.5/125 μm or 50/125 µm fiber optic multimode cable with a duplex LC connection. The module and network status is indicated using LEDs.

Specifications

Short description

Communication module

1x POWERLINK (V1/V2) managing or controlled node

General information

Diagnostics – Module status	Yes, using LED status indicator and software
Diagnostics – Bus function	Yes, using LED status indicator and software
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – CCS	Yes
Certifications – KC	Yes
B&R ID code	0xB455
Status indicators	Module status, bus function
Power consumption	1.8 W (rev. <D0: 2 W)
Additional power dissipation caused by actuators (resistive) [W]	-

Interfaces

Transfer – Physical layer	100BASE-FX
Transfer – Half-duplex	Yes
Transfer – Full-duplex	POWERLINK mode: No / Ethernet mode: Yes
Transfer – Autonegotiation	No
Transfer – Auto-MDI/MDIX	No
Optical power budget – Glass fiber 62.5/125 µm, NA = 0.275	11 dB
Optical power budget – Glass fiber 50/125 µm, NA = 0.200	7.5 dB
Line length – Ethernet TCP/IP	Max. 400 m between 2 stations (segment length)
Line length – POWERLINK	Max. 2 km between 2 stations (segment length)
Fieldbus	POWERLINK (V1/V2) managing or controlled node
Type	Type 4Communication / POWERLINK / General information / Hardware - IF/LS" in Automation Help."> (note: For additional information, see section)
Standard (compliance)	ANSI/IEEE 802.3
Variant	1x duplex LC
Transfer rate	100 Mbit/s
Controller	POWERLINK MAC
Wave length	Typ. 1300 nm; Rx range: 1270 to 1380 nm; Tx range: 1270 to 1380 nm
Cable fiber type	Multimode fiber with 62.5/125 µm or 50/125 µm core diameter ; LC connector on both sides

Electrical properties

Electrical isolation

PLC isolated from POWERLINK (X1)

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Slot	In the X20 PLC
