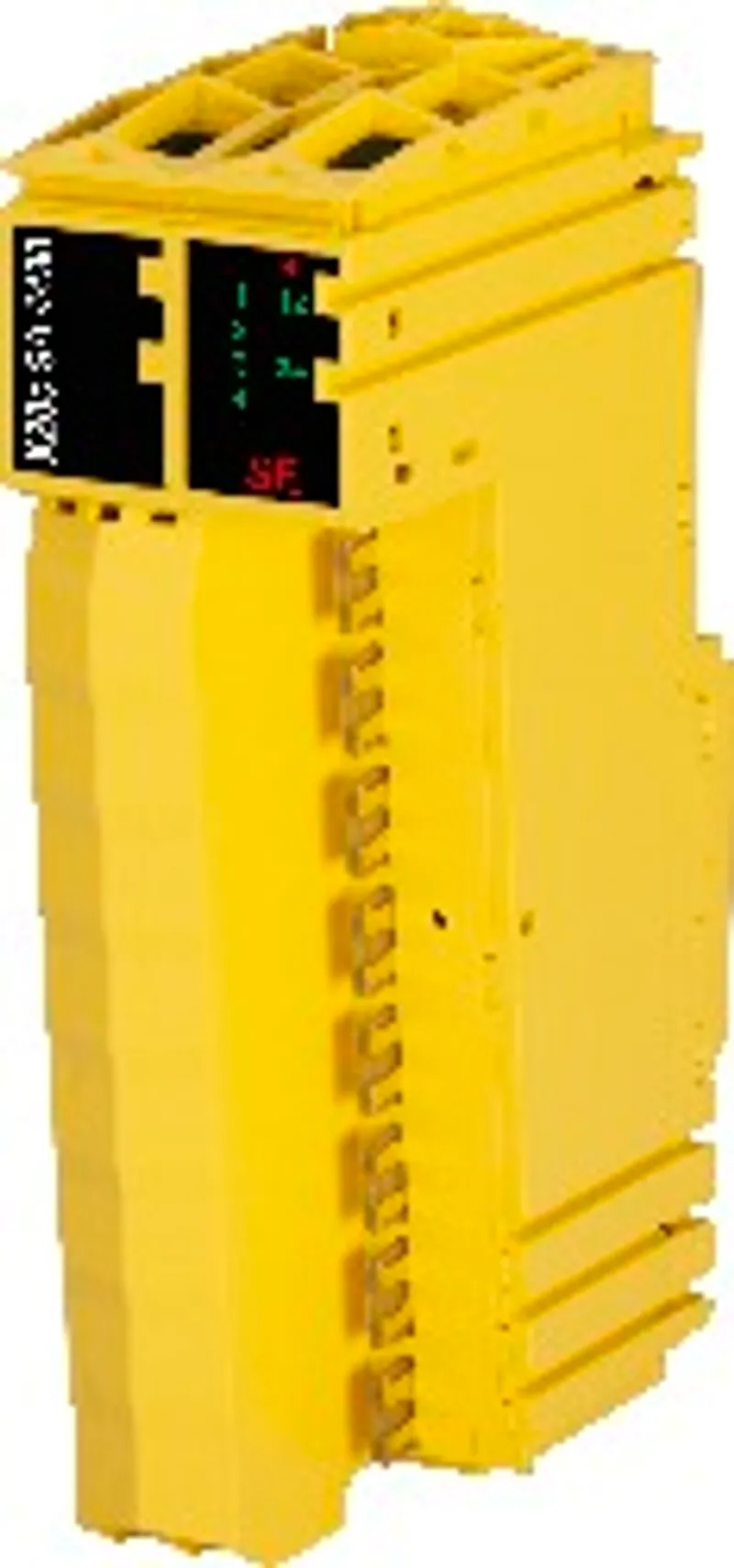

B&R X20cSA4430 – I/O module, 2x 2 safe type A analog inputs, 0.5 to 25 mA

Name: B&R X20cSA4430 – I/O module, 2x 2 safe type A analog inputs, 0.5 to 25 mA
Brand: B&R
SKU: X20cSA4430

MPN: X20cSA4430 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Analog input modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can X20cSA4430 be shipped?

X20cSA4430 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X20cSA4430 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X20cSA4430 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20cSA4430, subject to availability and destination.

• 2 safe analog input pairs for current measurement 0.5 to 25 mA

• 24-bit digital converter resolution

• Channels individually galvanically isolated

• Sensor power supplies galvanically isolated

• Input filter configurable

The module is equipped with 2 safe analog input pairs for current measurement. Each input pair has its own sensor power supply. The channels with their respective sensor supplies are electrically isolated from each other. It can be used to capture current signals in the range from 0.5 to 25 mA.

The safe analog input module is suitable for safely acquiring current signals for safety-related applications up to PL e or SIL 3.

This module is designed for X20 16-pin terminal blocks.

Accessories

Required accessories (order separately)

X20cBM33	Bus modules — Bus module for SafeIO modules; The internal I/O power supply is continuous. The bus module is the base for all SafeIO modules. The internal…
X20TB5F	Terminal blocks — Tool-free wiring using push-in technology; Simple wire release using a screwdriver; Labeling option for each terminal connection; Plain tex…

Specifications

Short description

I/O module

2x 2 safe type A analog inputs, 0.5 to 25 mA, channels individually galvanically isolated

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Inputs	Yes, using LED status indicator and software
Blackout mode – Scope	Module
Blackout mode – Function	Module functionality
Blackout mode – Standalone mode	No
Power consumption – Bus	0.25 W
Power consumption – Internal I/O	1.7 W
Electrical isolation – Channel - Bus	Yes
Electrical isolation – Channel - Channel	Yes
Electrical isolation – Channel pair - Channel pair	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – Functional safety	cULus FSPC E361559; Energy and industrial systems; Certified for functional safety; ANSI UL 1998:2013
Certifications – Functional safety	IEC 61508, up to SIL 3 ; IEC 62061, up to SIL 3 ; ISO 13849-1, up to Cat. 4 / PL e ; IEC 61511, up to SIL 3
Certifications – Functional safety	EN 50156-1
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: A (0 to 45°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck)
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC21B ; Temperature: 5 - 45°C; Vibration: 0.7 g; EMC: Bridge and open deck
B&R ID code	0xDD9F
Status indicators	I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W] " data-placement="top" data-html="true" data-container="body" data-content="Number of outputs x R<sub>DS(on)</sub> x Nominal output current<sup>2</sup>. This value also applies to sensors that are supplied via these outputs. For a calculation example, see section "Mechanical and electrical configuration" in the X20 system user's manual.">	0.36

Safety characteristics

Note	See section "Safety characteristics".

I/O power supply

Nominal voltage	24 VDC
Voltage range	24 VDC -15% / +20%

Safe analog inputs

Permissible input signal – Voltage	Max. 30.5 V
Max. error at 25°C – 0.5 to <4 mA	<0.3% " data-placement="top" data-html="true" data-container="body" data-content="Based on the current measured value">
Max. error at 25°C – 4 to 25 mA	<0.08% " data-placement="top" data-html="true" data-container="body" data-content="Based on the current measured value">
Max. error at 25°C – 0.5 to <4 mA	<2 µA
Max. error at 25°C – 4 to 25 mA	<6.3 µA
Max. gain drift – 0.5 to <4 mA	<1.225 µA/°C
Max. gain drift – 4 to 25 mA	<1.225 µA/°C
Max. offset drift – 0.5 to <4 mA	<0.735 µA/°C
Max. offset drift – 4 to 25 mA	<0.735 µA/°C
Common-mode rejection – DC	>70 dB
Common-mode rejection – 50 Hz	>70 dB
Input filter – Hardware	First-order low-pass filter / cutoff frequency 500 Hz
Input filter – Software	Sinc 3 filter
Test voltage – Channel - Bus	500 VDC
Test voltage – Channel pair - Channel pair	500 VDC
Test voltage – Channel - Ground	500 VDC
Safety-related accuracy per channel – Cat. 3	0.184 mA
Safety-related accuracy per channel – Cat. 4	0.49 mA
Quantity	2 safe input channel pairs
Variant	Type A
Input type	Differential input
Digital converter resolution	24-bit
Conversion time	See chapter "I/O update time".
Output format	SAFEINT
Load	Up to hardware revision D3: 230 to 420 Ω, hardware revision E0 or later: 185 to 245 Ω
Input protection	Protection against external supply voltages and overcurrent
Open-circuit detection	Yes, using software
Conversion procedure	Sigma-delta
Common-mode range	Between the inputs ±50 V
Nonlinearity	<0.003%
Measurement range	0.5 to 25 mA
Resolution	1 µA/LSB
Overload detection	Yes, using software
Filter time	Configurable between 1 and 66.7 ms

Sensor power supply

Electrical isolation – Sensor power supply - Channel	No
Electrical isolation – Sensor power supply - Sensor power supply	Yes
Nominal voltage	29 VDC ±5% " data-placement="top" data-html="true" data-container="body" data-content="When operating at ambient temperatures up to 40°C, a maximum I/O supply voltage ≤ 30 V is maintained.">
Nominal output current	Max. 60 mA
Short-circuit proof	Yes, continuous
R DS(on)	50 Ω
Behavior on short circuit	Voltage cutoff

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level	0 to 2000 m, no limitation
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 40°C
Temperature – Derating	See section "Derating".
Temperature – Starting temperature	Yes, -40°C
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	Up to 100%, condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x safety-keyed terminal block separately.; Order 1x safety-keyed bus module separately.
