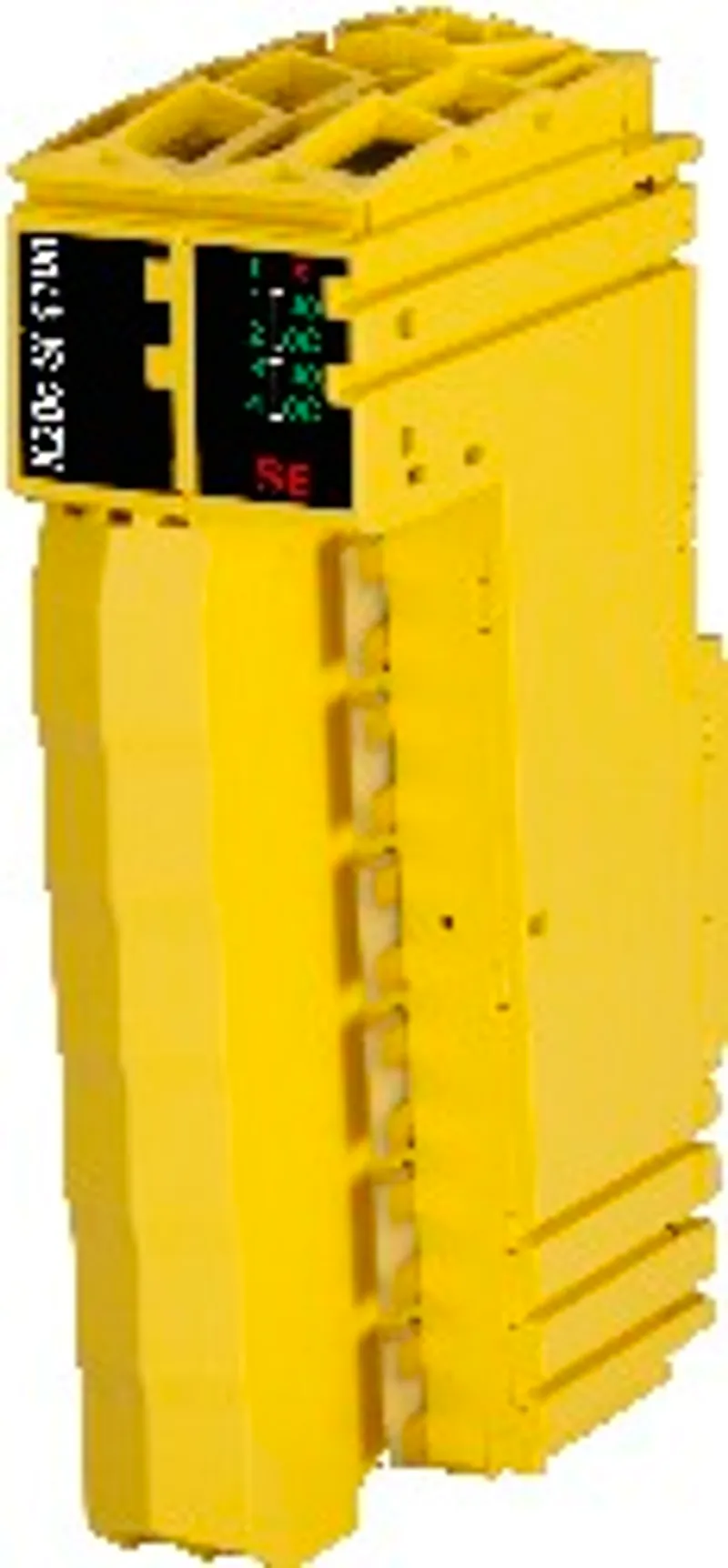

B&R X20cSI4100 – I/O module, 4 safe type A digital inputs, 4 pulse outputs

Name: B&R X20cSI4100 – I/O module, 4 safe type A digital inputs, 4 pulse outputs
Brand: B&R
SKU: X20cSI4100

MPN: X20cSI4100 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Digital input modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can X20cSI4100 be shipped?

X20cSI4100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X20cSI4100 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X20cSI4100 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20cSI4100, subject to availability and destination.

• 4 safe digital inputs

• 4 pulse outputs

• Sink circuit

• Software input filter configurable for each channel

This module is equipped with 4 safe digital inputs. It is designed for a nominal voltage of 24 VDC.

The module can be used to read various digital signals in safety-related applications up to PL e or SIL 3.

The module is equipped with filters that are individually configurable for switch-on and switch-off behavior. The module also provides pulse signals for diagnosing the sensor line.

This module is designed for X20 12-pin terminal blocks.

Accessories

Required accessories (order separately)

X20cBM33	Bus modules — Bus module for SafeIO modules; The internal I/O power supply is continuous. The bus module is the base for all SafeIO modules. The internal…
X20TB52	Terminal blocks — Tool-free wiring using push-in technology; Simple wire release using a lever; Labeling option for each terminal connection; Plain text labe…

Specifications

Short description

I/O module

4 safe type A digital inputs, 4 pulse outputs, 24 VDC

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Inputs	Yes, using LED status indicator and software
Blackout mode – Scope	Module
Blackout mode – Function	Module functionality
Blackout mode – Standalone mode	No
Power consumption – Bus	0.32 W
Power consumption – Internal I/O	1.25 W
Electrical isolation – Channel - Bus	Yes
Electrical isolation – Channel - Channel	No
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – Functional safety	cULus FSPC E361559; Energy and industrial systems; Certified for functional safety; ANSI UL 1998:2013
Certifications – Functional safety	IEC 61508:2010, SIL 3; EN 62061:2005/A2:2015, SIL 3; EN ISO 13849-1:2015, Cat. 4 / PL e; IEC 61511:2004, SIL 3
Certifications – Functional safety	EN 50156-1:2004
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: A (0 to 45°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck)
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC21B ; Temperature: 5 - 45°C; Vibration: 0.7 g; EMC: Bridge and open deck
B&R ID code	0xDD5A
Status indicators	I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W] " data-placement="top" data-html="true" data-container="body" data-content="Number of outputs x R<sub>DS(on)</sub> x Nominal output current<sup>2</sup>. This value also applies to sensors that are supplied via these outputs. For a calculation example, see section "Mechanical and electrical configuration" in the X20 system user's manual.">	0.6

Safety characteristics

Note	See section "Safety characteristics".

I/O power supply

Nominal voltage	24 VDC
Voltage range	24 VDC -15% / +20%
Integrated protective function	Reverse polarity protection

Safe digital inputs

Input filter – Hardware	≤150 μs
Input filter – Software	Configurable between 0 and 500 ms
Switching threshold – Low	<5 VDC
Switching threshold – High	>15 VDC
Quantity	4
Variant	Type A
Nominal voltage	24 VDC
Input characteristics per EN 61131-2	Type 1
Input circuit	Sink
Input voltage	24 VDC -15% / +20%
Input current at 24 VDC " data-placement="top" data-html="true" data-container="body" data-content="The input current specifications refer to the switched-on state of the input.">	Min. 2 mA to max. 4.59 mA. Hardware revision J0 and later: Min. 2 mA to max. 3.28 mA.
Input resistance	Min. 5.23 kΩ, hardware revision J0 and later: Min. 7.33 kΩ
Error detection time	100 ms
Insulation voltage between channel and bus	500 V eff
Line length between signal source (pulse output or external signal) and input	Max. 60 m with unshielded line; Max. 400 m with shielded line

Pulse outputs

Quantity	4
Variant	Push-Pull
Nominal output current	100 mA, hardware revision J0 and later: 50 mA
Output protection	Thermal shutdown of all channels in the event of overload or short circuit, hardware revision J0 and later: Shutdown of individual channels in the event of overload or short circuit " data-placement="top" data-html="true" data-container="body" data-content="The protective function is provided for max. 30 minutes for a continuous short circuit.">
Peak short-circuit current	300 mA, hardware revision J0 and later: 25 A for 15 µs
Short-circuit current	100 mA eff
Leakage current when the output is switched off	0.1 mA
R DS(on)	60 Ω
Switching voltage	I/O power supply minus voltage drop due to R DS(on)
Total nominal current	400 mA, hardware revision J0 and later: 200 mA

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level	0 to 2000 m, no limitation
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	See section "Derating".
Temperature – Starting temperature	Yes, -40°C
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	Up to 100%, condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x safety-keyed terminal block separately.; Order 1x safety-keyed bus module separately.
