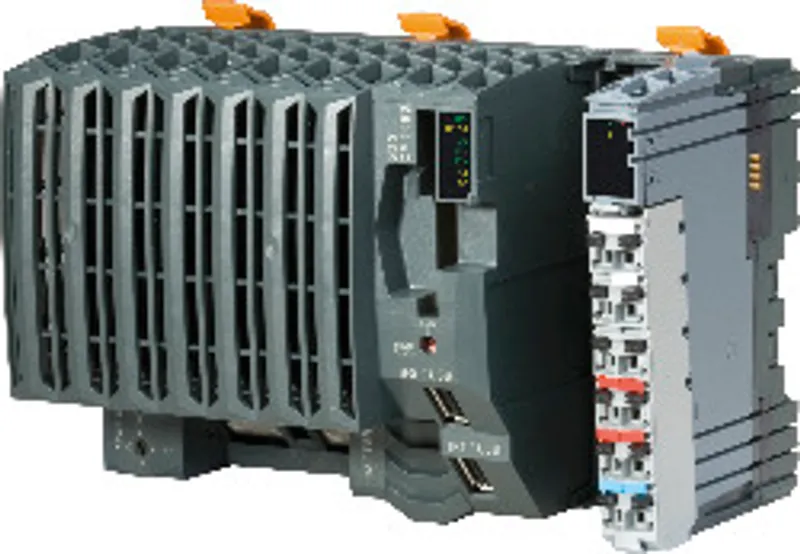

B&R X20CP1483 – Interfaces, 1x RS232, 1x Ethernet, 1x POWERLINK (V1/V2)

Name: B&R X20CP1483 – Interfaces, 1x RS232, 1x Ethernet, 1x POWERLINK (V1/V2)
Brand: B&R
SKU: X20CP1483

MPN: X20CP1483 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	X20 PLC
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	300 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can X20CP1483 be shipped?

X20CP1483 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X20CP1483 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X20CP1483 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20CP1483, subject to availability and destination.

• Intel x86-based, 100 MHz-compatible CPU with integrated I/O processor

• Onboard Ethernet, POWERLINK and USB

• 1 slot for modular interface expansion

• CompactFlash as removable application memory

• Fanless

The Intel x86-based, 100 MHz-compatible X20CP1483 represents the entry-level X20 controllers. With an optimum price/performance ratio, it has the same basic features as all of the larger controllers.

Onboard Ethernet and USB are standard. In addition, the controller has a POWERLINK connection for hard real-time communication. Another slot is available for an additional interface module to increase flexibility.

The only difference between the two variants X20CP1483 and X20CP1483-1 is the size of the SDRAM.

Accessories

Required accessories (order separately)

0CFCRD.8192E.02	CompactFlash cards — CompactFlash 8 GB extended temp.
0CFCRD.4096E.02	CompactFlash cards — CompactFlash 4096 MB extended temp.
0CFCRD.2048E.02	CompactFlash cards — CompactFlash 2048 MB extended temp.
0CFCRD.1024E.02	CompactFlash cards — CompactFlash 1024 MB extended temp.
0CFCRD.0512E.02	CompactFlash cards — CompactFlash 512 MB extended temp.
0CFCRD.016GE.02	CompactFlash cards — CompactFlash 16 GB extended temp.

Optional accessories (4)

4A0006.00-000	Batteries — Lithium battery, 3 V / 950 mAh, button cell
X20AC0SR1	Locking plates — X20 end cover plate, right
X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…
0AC201.91	Batteries — Lithium batteries 4 pcs., 3 V / 950 mAh button cell

Specifications

Short description

Interfaces	1x RS232, 1x Ethernet, 1x POWERLINK (V1/V2), 2x USB, 1x X2X Link
System module	Controller

General information

Diagnostics – Battery	Yes, using LED status indicator and software
Diagnostics – CPU function	Yes, using LED status indicator
Diagnostics – CompactFlash	Yes, using LED status indicator
Diagnostics – Ethernet	Yes, using LED status indicator
Diagnostics – POWERLINK	Yes, using LED status indicator
Diagnostics – Temperature	Yes, using software register
Support – ACOPOS support	Yes
Support – Visual Components support	Yes
Power consumption " data-placement="top" data-html="true" data-container="body" data-content="The specified values are maximum values. For examples of the exact calculation, see section "Mechanical and electrical configuration" in the X20 system user's manual."> – Internal I/O	0.6 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Non-compliant
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KC	Yes
B&R ID code	0xA239
Cooling	Fanless
Status indicators	CPU function, Ethernet, POWERLINK, CompactFlash, battery
Power consumption without memory card, interface module and USB	6 W
Power consumption for X2X Link power supply " data-placement="top" data-html="true" data-container="body" data-content="The specified values are maximum values. For examples of the exact calculation, see section "Mechanical and electrical configuration" in the X20 system user's manual.">	1.42 W
Additional power dissipation caused by actuators (resistive) [W]	-

CPU and X2X Link power supply

Input voltage	24 VDC -15% / +20%
Input current	Max. 2.2 A
Fuse	Integrated, cannot be replaced
Reverse polarity protection	Yes

X2X Link power supply output

Nominal output power	7 W " data-placement="top" data-html="true" data-container="body" data-content="When operated at temperatures above 55°C, a derating of the nominal output power to 5 W for the X2X Link power supply must be taken into account.">
Parallel connection	Yes " data-placement="top" data-html="true" data-container="body" data-content="In parallel operation, it is only permitted to expect 75% of the nominal power. It is important to make sure that all power supply units operated in parallel are switched on and off at the same time.">
Redundant operation	Yes

Input I/O power supply

Input voltage	24 VDC -15% / +20%
Fuse	Required line fuse: Max. 10 A, slow-blow

Output I/O power supply

Nominal output voltage	24 VDC
Permissible contact load	10 A

Power supply - General information

Diagnostics – RS232 data transfer	Yes, using LED status indicator
Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Overload	Yes, using LED status indicator and software
Electrical isolation – I/O supply - I/O power supply	No
Electrical isolation – CPU/X2X Link supply - CPU/X2X Link power supply	Yes
Status indicators	Overload, operating status, module status, RS232 data transfer

Controller

Processor – Type	x86 100 (compatible)
Processor – Clock frequency	100 MHz
Processor – L2 cache	-
Processor – L1 cache for data and program code	16 kB
Data buffering – Battery monitoring	Yes
Data buffering – Lithium battery	At least 3 years
Standard memory – RAM	32 MB SDRAM
Standard memory – User RAM	128 kB SRAM " data-placement="top" data-html="true" data-container="body" data-content="Minus the set remanent variables.">
CompactFlash slot	1
Real-time clock	Nonvolatile, resolution 1 s, -10 to 10 ppm accuracy at 25°C
Floating point unit (FPU)	Yes
Integrated I/O processor	Processes I/O data points in the background
Modular interface slots	1
Remanent variables	Max. 32 kB " data-placement="top" data-html="true" data-container="body" data-content="The memory size for remanent variables is configurable in Automation Studio.">
Shortest task class cycle time	1 ms
Typical instruction cycle time	0.09 μs

Interfaces

Interface IF1 – Signal	RS232
Interface IF1 – Variant	Connection via 12-pin terminal block X20TB12
Interface IF1 – Max. distance	900 m
Interface IF1 – Transfer rate	Max. 115.2 kbit/s
Interface IF2 – Physical layer	10BASE-T/100BASE-TX
Interface IF2 – Half-duplex	Yes
Interface IF2 – Full-duplex	Yes
Interface IF2 – Autonegotiation	Yes
Interface IF2 – Auto-MDI/MDIX	Yes
Interface IF2 – Signal	Ethernet
Interface IF2 – Variant	1x RJ45 shielded
Interface IF2 – Line length	Max. 100 m between 2 stations (segment length)
Interface IF2 – Transfer rate	10/100 Mbit/s
Interface IF3 – Physical layer	100BASE-TX
Interface IF3 – Half-duplex	Yes
Interface IF3 – Full-duplex	POWERLINK mode: No / Ethernet mode: Yes
Interface IF3 – Autonegotiation	Yes
Interface IF3 – Auto-MDI/MDIX	Yes
Interface IF3 – Fieldbus	POWERLINK (V1/V2) managing or controlled node
Interface IF3 – Type	Type 4 " data-placement="top" data-html="true" data-container="body" data-content="For additional information, see section "Communication / POWERLINK / General information / Hardware - IF/LS" in Automation Help.">
Interface IF3 – Variant	1x RJ45 shielded
Interface IF3 – Line length	Max. 100 m between 2 stations (segment length)
Interface IF3 – Transfer rate	100 Mbit/s
Interface IF4 – Type	USB 1.1
Interface IF4 – Variant	Type A
Interface IF4 – Max. output current	0.5 A
Interface IF5 – Type	USB 1.1
Interface IF5 – Variant	Type A
Interface IF5 – Max. output current	0.5 A
Interface IF6 – Fieldbus	X2X Link master

Electrical properties

Electrical isolation

Ethernet (IF2), POWERLINK (IF3) and X2X (IF6) isolated from each other, from other interfaces and from PLC

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	See section "Derating".
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Dimensions – Width	150 mm
Dimensions – Height	99 mm
Dimensions – Depth	85 mm
Note	Order application memory (CompactFlash) separately ; Backup battery included in delivery ; X20 end cover plate (right) included in delivery ; 12-pin X20 terminal block included in delivery ; Interface module slot covers included in delivery
Weight	300 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Data sheet X20CP1483	PDF · 2 MB · 2.41 (09/20/2022) - EN
X20 Package leaflet ATEX/CSA	PDF · 2 MB · 1.4 (09/17/2024)
X20 System User´s Manual	PDF · 50 MB · 4.40 (03/10/2026) - EN

CAD & dimension drawings

3D File DXF/STEP X20 CPU modules X20CP1x8x	ZIP · 7 MB · 1.20 (02/27/2025)
3D File DXF/STEP X20 Electronic module	ZIP · 10 KB · 1.0 (10/17/2005)
3D File STEP X20 I/O-Slice	ZIP · 872 KB · 1.1 (03/13/2019)
Dimensions PDF X20 Electronic module	PDF · 3 KB · 1.0 (10/17/2005)

Certificates (12)

2226379 CSA Certificate of Compliance X20 X67	PDF · 205 KB · 2026_09 (09/21/2026)
64331_A1 BV Certificate of Compliance X20	PDF · 1 MB · 2026_05 (05/05/2026)
ABS Certificate of Product Design Assessment - X20 IO Series	PDF · 454 KB · 2.00 (01/13/2025)
CCS Type Approval Certificate - X20	PDF · 285 KB · 1.00 (06/28/2024)
E115267 UL Certificate of Compliance X20	PDF · 3 MB · 2026_08_27 (08/27/2026)
EU Data Act - X20 PLC - Connected Product Information Notice	PDF · 91 KB · 1.00 (09/30/2025)
FTZU 09 ATEX 0083X	PDF · 771 KB · 3.00 (10/12/2021)
KR Type Approval Certificate MIL39390-AC003 (X20 System)	PDF · 320 KB · 2.0 (05/05/2025)
Lloyds Register (X20 only)	PDF · 884 KB · 1.30 (07/07/2025)
RINA Type Approval Certificate - X20 / Power Panel T30	PDF · 1 MB · 1.00 (05/07/2021)
TAA00000BJ DNV Type Approval Certificate X20	PDF · 186 KB · 13.0 (05/04/2026)
X20, X67 KC certificates	PDF · 7 MB · 2.00 (08/17/2026)
