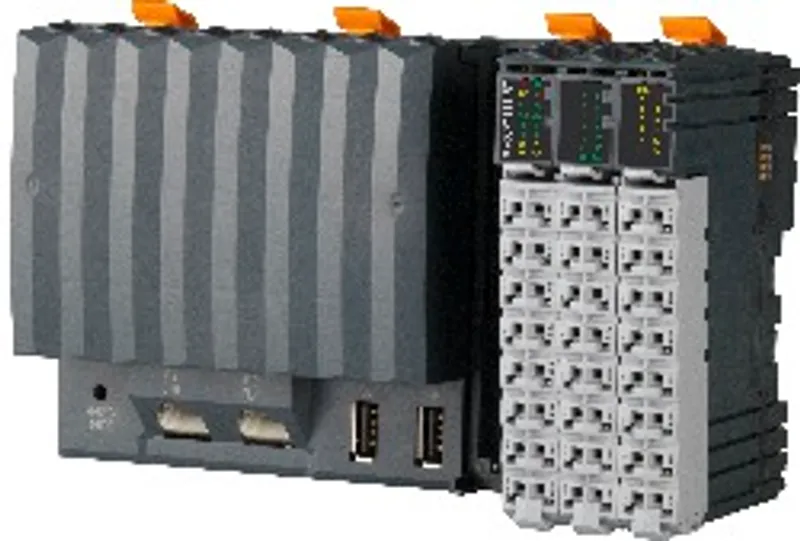

B&R X20CP1381-RT

Intel x86 200 MHz compatible with integrated I/O processorEthernet, POWERLINK with poll-response chaining and onboard USB1 slot for modular interface expansionOnboard reACTION Technology30 digital inputs/outputs and 2 analog inputs integrated in the device1 GB onboard flash drive128 MB DDR3 SDRAMFanlessNo batteryBacked-up real-time clock The X20 Compact controller series is characterized by 3 integrated I/O modules. The device is equipped with 30 different digital inputs/outputs and 2 analog inputs. 1 analog input can be used for Pt1000 resistance temperature measurement. In addition, the X20CP1381-RT has ultrafast onboard reACTION Technology. reACTION Technology makes it possible to control the integrated I/O channels with response times down to 1 μs. With this new IEC 61131-2 compatible technology, particularly time-critical sub-tasks can be implemented in standard hardware, simultaneously making it possible to reduce costs by optimally reducing the load on the controller and allowing it to be scaled down accordingly. The X20 Compact controller is equipped with an Intel x86 200 MHz compatible processor, 128 MB RAM and 1 GB built-in flash drive. The FRAM for storing remanent variables has 16 kB available. A fanless and battery-free design ensures maintenance-free operation. The controller is equipped with Ethernet, 2x USB and an RS232 interface. In addition, POWERLINK and CAN bus are available as integrated interfaces. For additional fieldbus connections, each controller can be expanded with an interface module from the X20 standard portfolio.
