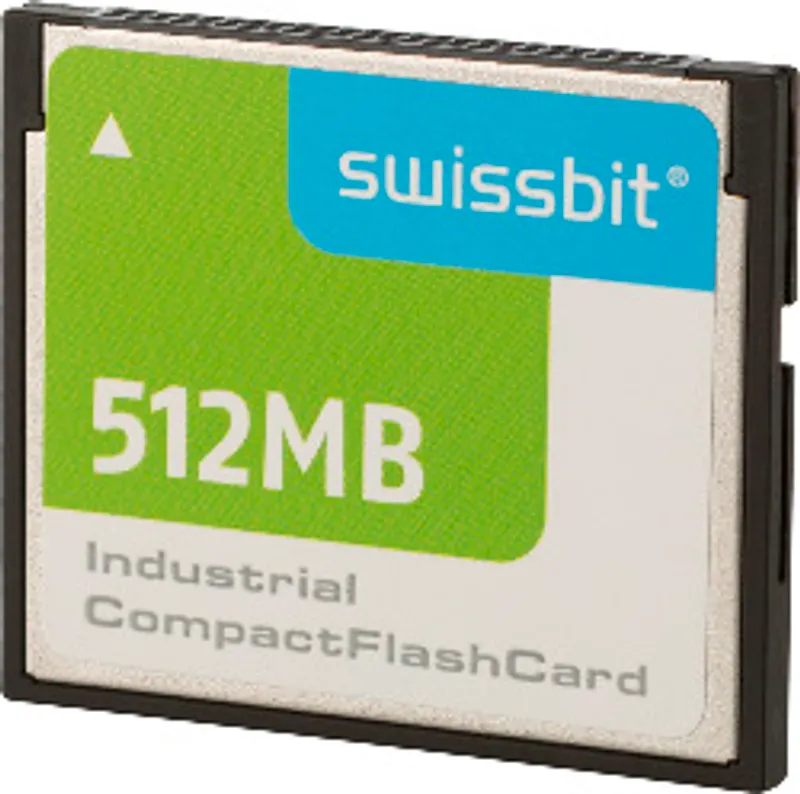

B&R 0CFCRD.0512E.02

Name: B&R 0CFCRD.0512E.02
Brand: B&R
SKU: 0CFCRD.0512E.02

MPN: 0CFCRD.0512E.02 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	CompactFlash cards
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	10 kg

Shipping & availability

When can 0CFCRD.0512E.02 be shipped?

0CFCRD.0512E.02 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 0CFCRD.0512E.02 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 0CFCRD.0512E.02 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0CFCRD.0512E.02, subject to availability and destination.

CompactFlash 512 MB extended temp.

Specifications

General information

Continuous reading – Typical	32.2 MB/s
Continuous writing – Typical	19.9 MB/s
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Capacity	512 MB
Data retention	10 years (when new) to 1 year (end of service life)
Data reliability	<1 unrecoverable error per 10 17 bits read
Lifetime monitoring	Yes
MTBF	>3,000,000 hours (at 25°C)
Servicing	None
Supported operating modes	Up to UDMA6 / MDMA4 / PIO6

Endurance

Erase/Write cycles – Guaranteed	100,000
SLC flash memory	Yes
Wear leveling	Global, dynamic and static
Error-correcting code (ECC)	Yes
S.M.A.R.T. support	Yes
Storage health data support	Yes

Support

Hardware

X20CPxxxx

Ambient conditions

Temperature – Operation	-40 to 85°C
Temperature – Storage	-50 to 100°C
Temperature – Transport	-50 to 100°C
Relative humidity – Operation	Max. 85% at 85°C
Relative humidity – Storage	Max. 85% at 85°C
Relative humidity – Transport	Max. 85% at 85°C
Vibration – Storage	20 g peak, 10 to 2000 Hz
Vibration – Transport	20 g peak, 10 to 2000 Hz
Shock – Storage	1500 g peak (JESD 22 , method B 110 )
Shock – Transport	1500 g peak (JESD 22 , method B 110 )

Mechanical properties

Dimensions – Width	42.8 ±0.10 mm
Dimensions – Length	36.4 ±0.15 mm
Dimensions – Height	3.3 ±0.10 mm
Weight	10 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Data sheet CompactFlash 0CFCRD.xxxE.02

PDF · 204 KB · 2.12 (09/27/2021) - EN

Certificates (7)

64331_A1 BV Certificate of Compliance X20	PDF · 1 MB · 2026_05 (05/05/2026)
ABS Certificate of Product Design Assessment - X20 IO Series	PDF · 454 KB · 2.00 (01/13/2025)
E115267 UL Certificate of Compliance X20	PDF · 3 MB · 2026_08_27 (08/27/2026)
EU Declaration of conformity PLC X20	PDF · 169 KB · 2021/10 (11/08/2021)
KR Type Approval Certificate MIL39390-AC003 (X20 System)	PDF · 320 KB · 2.0 (05/05/2025)
Lloyds Register (X20 only)	PDF · 884 KB · 1.30 (07/07/2025)
TAA00000BJ DNV Type Approval Certificate X20	PDF · 186 KB · 13.0 (05/04/2026)
