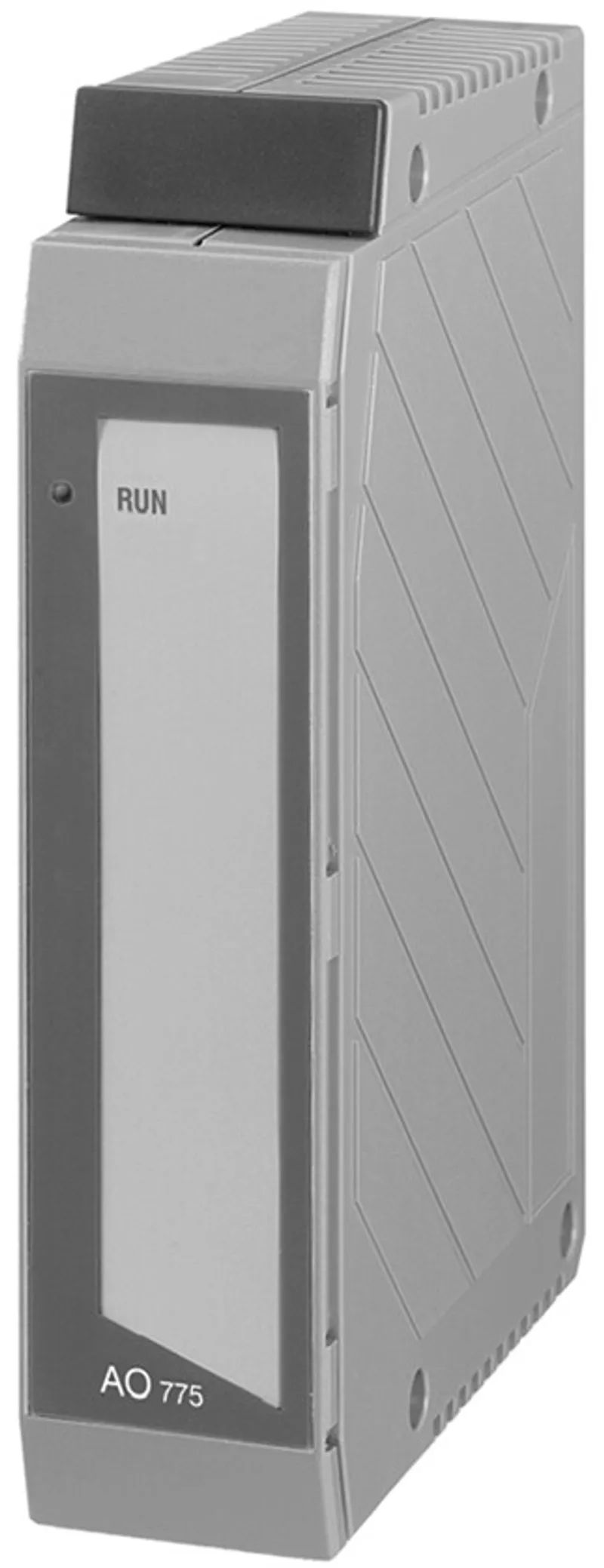

B&R 3AO775.6 – I/O module, 8 analog outputs 0 to 20 mA
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 3AO775.6 be shipped?
3AO775.6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3AO775.6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3AO775.6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3AO775.6, subject to availability and destination.
2005 analog output module, 8 outputs, 0 to 20 mA, 11-bit, order 1x terminal block TB170 separately!
Accessories
Specifications
Short description
| I/O module | 8 analog outputs 0 to 20 mA |
General information
| Diagnostics – Converter | Yes, using LED status indicator |
| Power consumption – 24 VDC | 4.5 W |
| Power consumption – 5 VDC | 1.0 W |
| Power consumption – Total | 5.5 W |
| Electrical isolation – Channel - Channel | No |
| Electrical isolation – Channel - PLC | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Status indicators | Converter function |
Analog outputs
| Output | 0 to 20 mA |
| Digital converter resolution | 11-bit |
| Conversion time | 250 µs for all outputs |
| Output protection | Short-circuit proof |
| Basic accuracy | ±0.5% at 20°C (note: Based on the output range.) |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 60°C |
| Temperature – Storage | -25 to 70°C |
| Relative humidity – Operation | 5 to 95% |
Mechanical properties
| Dimensions – Width | System 2005 single-width |
| Can be installed on – Base unit | Yes |
| Can be installed on – Expansion unit | Yes |
| Note | Order 1x terminal block TB170 separately. |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 3AO775.6 | PDF · 277 KB · 4.20 (01/16/2008) - EN |
