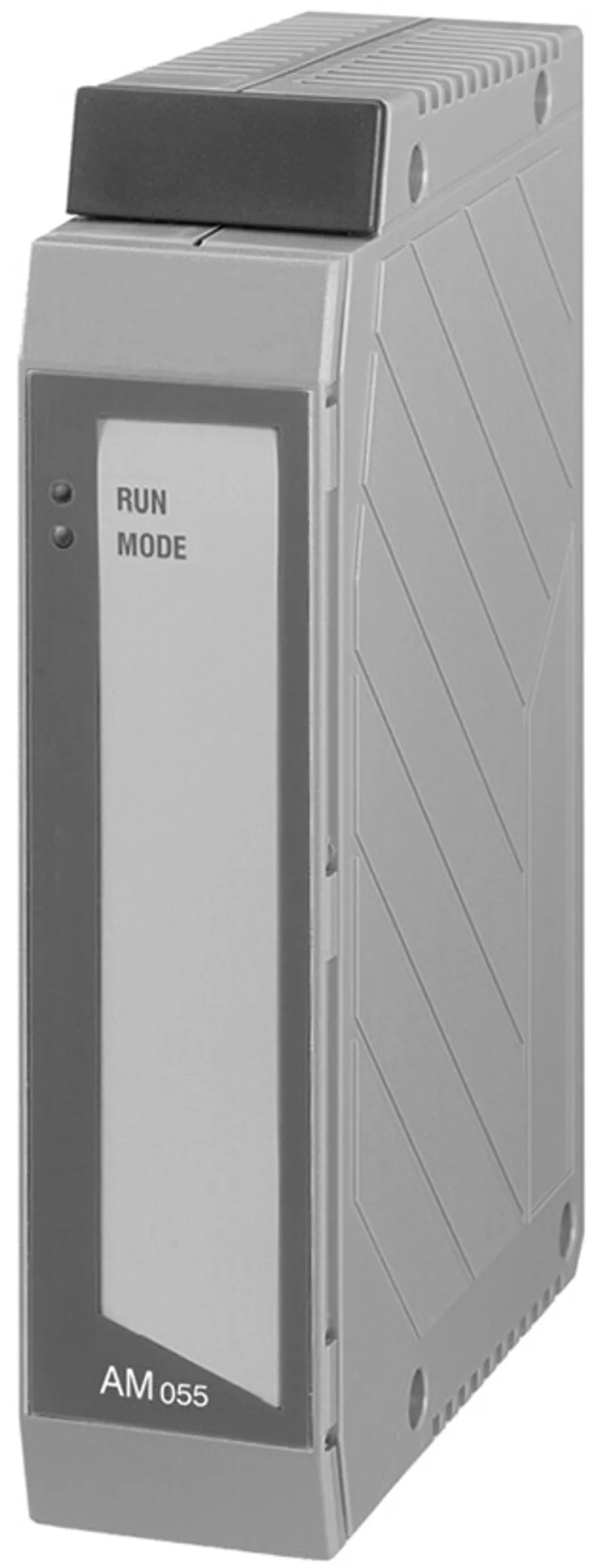

B&R 3AM055.6 – I/O module, 5 analog inputs, 3 analog outputs

MPN: 3AM055.6 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 3AM055.6 be shipped?

3AM055.6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3AM055.6 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3AM055.6 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3AM055.6, subject to availability and destination.

2005 analog mixed module, 5 inputs, 0 to 10 V, 12-bit, 3 outputs, ±10 V, 12-bit, 1 potentiometer voltage +10 V, 2x implemented, order 1x terminal block TB170 separately!

Accessories

Optional accessories (2)

3TB170.91	Terminal blocks — 2005 terminal block, 20-pin, push-in terminal block
3TB170.9	Terminal blocks — 2005 terminal block, 20-pin, screw clamp terminal block

Specifications

Short description

I/O module

5 analog inputs, 3 analog outputs, potentiometer power supply

General information

Diagnostics – Module status	Yes, using software
Diagnostics – Converter	Yes, using LED status indicator
Power consumption – 24 VDC	5.5 W, including potentiometer power supply
Power consumption – 5 VDC	1.5 W
Power consumption – Total	7.0 W
Electrical isolation – Channel - Channel	No
Electrical isolation – Channel - Potentiometer power supply	No
Electrical isolation – Channel - PLC	Yes
Electrical isolation – Potentiometer power supply - PLC	Yes
Certifications – CE	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Status indicators	Converter function, start pulse for software timing

Potentiometer power supply

Voltage	+10 V
Load	4 x 1 kΩ parallel, total max. 40 mA
Basic accuracy	±0.02% at 25°C (note: Based on ±10 V.)
Short-circuit current	>100 mA

Analog inputs

Input	0 to 10 V
Input type	Differential input
Digital converter resolution	12-bit
Conversion time	<1 ms for inputs and outputs <1.5 ms with enabled averaging
Output format	INT
Input impedance in signal range	2 MΩ
Input protection	Protection against wiring with supply voltage
Operating modes	Cyclic measurement with optional averaging, direct software timing, software timing with time specification (2 - 65.535 ms)
Basic accuracy	±0.05% at 25°C (note: Based on the measurement range.)

Analog outputs

Output	±10 V
Digital converter resolution	12-bit
Conversion time	<1 ms for inputs and outputs <1.5 ms with enabled averaging
Switch on/off behavior	Internal enable relay for startup and errors
Output protection	Short-circuit proof
Operating modes	Cyclic measurement with optional averaging, direct software timing, software timing with time specification (2 - 65.535 ms)
Basic accuracy	Max. ±0.3% at 25°C (note: Based on the output range.)

Operating conditions

Degree of protection per EN 60529

IP20

Ambient conditions

Temperature – Operation	0 to 60°C
Temperature – Storage	-25 to 70°C
Relative humidity – Operation	5 to 95%

Mechanical properties

Dimensions – Width	System 2005 single-width
Can be installed on – Base unit	Yes
Can be installed on – Expansion unit	Yes
Note	Order 1x terminal block TB170 separately.
