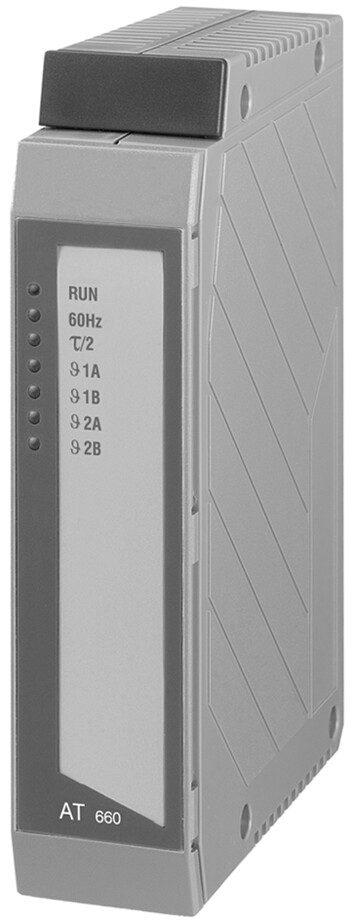

B&R 3AT660.6 – I/O module, 8 inputs in 2 groups for thermocouples

MPN: 3AT660.6 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 3AT660.6 be shipped?

3AT660.6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3AT660.6 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3AT660.6 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3AT660.6, subject to availability and destination.

2005 analog input module, 8 inputs, temperature sensor type L/J/K, -200 to +1300°C, order 1x terminal block TB170 separately!

Accessories

Required accessories (order separately)

3TB170.91	Terminal blocks — 2005 terminal block, 20-pin, push-in terminal block
3TB170.9	Terminal blocks — 2005 terminal block, 20-pin, screw clamp terminal block

Specifications

Short description

I/O module

8 inputs in 2 groups for thermocouples

General information

Diagnostics – Module status	Yes, using software
Diagnostics – Converter	Yes, using LED status indicator
Power consumption – 24 VDC	4.75 W
Power consumption – 5 VDC	1.25 W
Power consumption – Total	6.0 W
Electrical isolation – Group - Group	No
Electrical isolation – Channel - Channel	No
Electrical isolation – Channel - PLC	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Status indicators	Converter function, measurement time, temperature sensor per group

Thermocouple temperature inputs

Conversion time – 16.67 ms measurement time	116.68 ms including internal terminal temperature compensation
Conversion time – 20 ms measurement time	130 ms including internal terminal temperature compensation
Measurement range – FeCuNi: Type J	-200 to 950°C
Measurement range – FeCuNi: Type L	-200 to 900°C
Measurement range – NiCrNi: Type K	-200 to 1300°C
Measurement range – Raw value	-15 to +55 mV
Basic accuracy – Type J: Fe-CuNi	±0.5% at 25°C
Basic accuracy – Type L	±0.5% at 25°C
Basic accuracy – Type K: NiCr-Ni	±0.8% at 25°C
Terminal temperature compensation – External	-100 to 200°C
Terminal temperature compensation – Internal	-20 to 80°C
Input	Thermocouple
Digital converter resolution	Internal >14-bit (23841 internal ADC converter values at 20 ms)
Output format	INT
Terminal temperature compensation	Can be both internal and external
Input protection	Protection against wiring with supply voltage

Operating conditions

Degree of protection per EN 60529

IP20

Ambient conditions

Temperature – Operation	0 to 60°C
Temperature – Storage	-25 to 70°C
Relative humidity – Operation	5 to 95%

Mechanical properties

Dimensions – Width	System 2005 single-width
Can be installed on – Base unit	Yes
Can be installed on – Expansion unit	Yes
Note	Order 1x terminal block TB170 separately.
