Bosch Rexroth R911172545

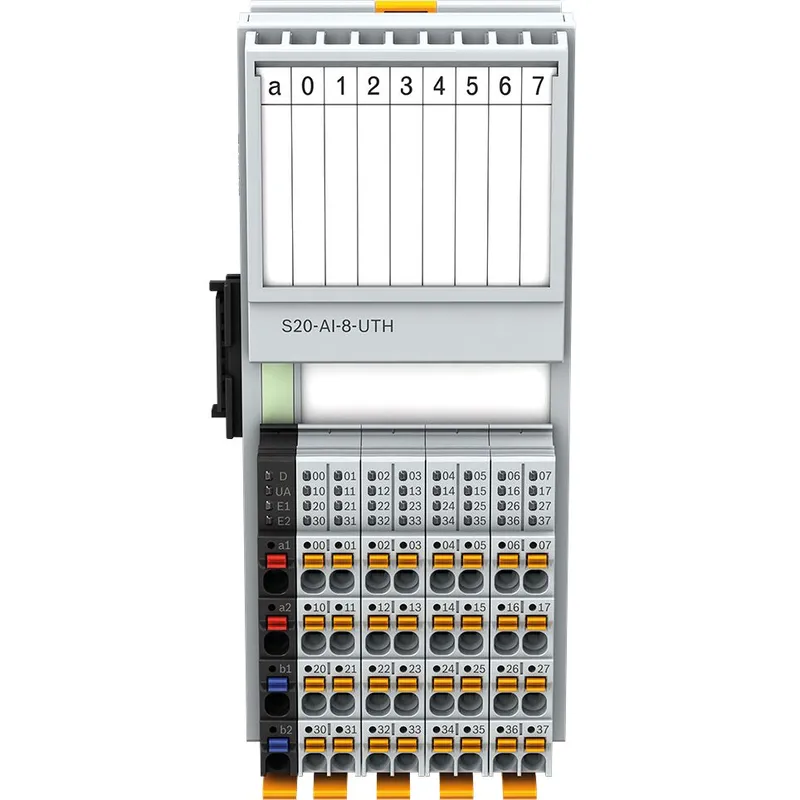

ANALOG INPUT MODULE S20-AI-8-UTH

MPN: R911172545
Category: Analog Input Modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R911172545?

S20 in protection type IP20 is the flexibly scalable I/O system for shortest cycle times and highest precision and provides a real-time data flow between control and peripherals - whether locally at the XM control or as decentralized I/O station.

Compact, modular and simple

Space-saving I/O technology for top hat rail mounting

Individually combinable modules

Innovative assembly and installation concept

Specifications

Connection type	Push-in
Connectivity technology	2-wire technique, shielded, twisted in pairs
Number of channels	8
Width [mm]	53.6
Height [mm]	54
Depth [mm]	126.1
International protection code	IP20
Resolution A/D	24 Bit
Logic voltage UBus [V DC]	5
Conductor cross-section	AWG: 24 ... 16; Flexible: 0.2-1.5 mm²; rigid: 0.2-1.5 mm²
Permissible air humidity (storage) [%]	5-95
Permissible air humidity (transport) [%]	5-95
Ambient temperature (storage and transport) [°C]	-40-85
Ambient temperature (during operation) [°C]	-25-60
Air pressure (operation)	70-106 kPa (up to 3,000 m above sea level)
Air pressure (storage / transport)	70-106 kPa (up to 3,000 m above sea level)
Weight [kg]	0.27

R911172545: frequently asked questions

When can R911172545 be shipped?

R911172545 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R911172545 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R911172545 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911172545, subject to availability and destination.
