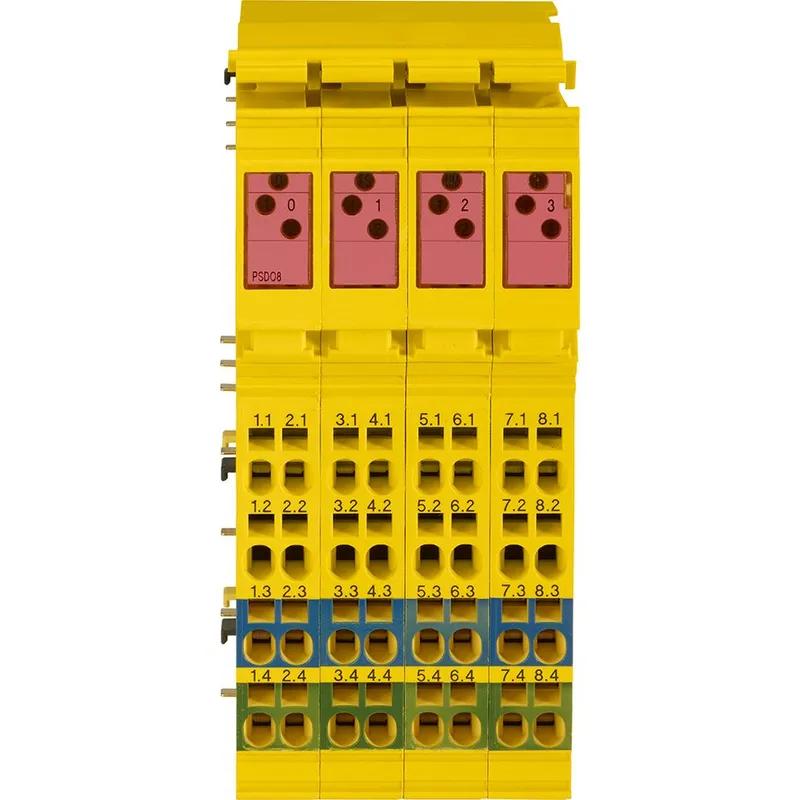

INTERFACE MODULE R-IB IL 24 PSDO 8-PAC

Name: INTERFACE MODULE R-IB IL 24 PSDO 8-PAC
Brand: Bosch Rexroth
SKU: R911172847

MPN: R911172847 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	R-IB IL Digital Outputs
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R911172847 be shipped?

R911172847 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R911172847 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R911172847 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911172847, subject to availability and destination.

The modular, compact equipment configuration of the I/O systems from Rexroth offers you maximum flexibility for the cost-effective implementation of your individual machine concepts. The I/O modules have robust design and mechanics, are easy to use, have a quick reaction time and are quick to install – both in the control cabinet and in the field. Open communication standards allow you perfect integration of the I/O modules with maximum availability.

Specifications

Connection type	Tension spring connection
Number of channels	8
Max. output current per channel [A]	2
Width [mm]	48.8
Height [mm]	120
Depth [mm]	71.5
International protection code	IP20
Max. net current Up module [A]	6
Conductor cross-section	AWG: 24 ... 16; Flexible: 0.2-1.5 mm²; rigid: 0.2-1.5 mm²
Permissible air humidity (storage) [%]	75
Permissible air humidity (transport) [%]	75
Ambient temperature (storage and transport) [°C]	-25-70
Ambient temperature (during operation) [°C]	-25-55
Air pressure (operation)	80-108 kPa (up to 2,000 m above sea level)
Air pressure (storage / transport)	70-106 kPa (up to 3,000 m above sea level)
Weight [kg]	0.35
