Bosch Rexroth R911172544

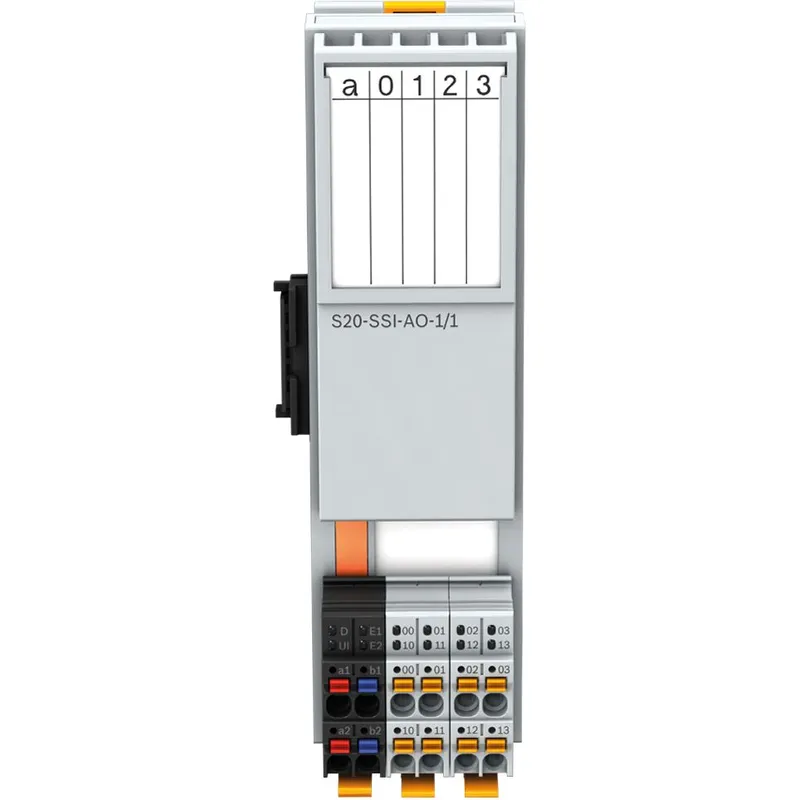

FUNCTIONAL MODULE S20-SSI-AO-1/1

MPN: R911172544
Category: Function Modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R911172544?

S20 in protection type IP20 is the flexibly scalable I/O system for shortest cycle times and highest precision and provides a real-time data flow between control and peripherals - whether locally at the XM control or as decentralized I/O station.

Compact, modular and simple

Space-saving I/O technology for top hat rail mounting

Individually combinable modules

Innovative assembly and installation concept

Specifications

Connection type	Push-in
Connectivity technology	4-wire technique, shielded, twisted in pairs
Number of channels	1
Width [mm]	35
Height [mm]	54
Depth [mm]	126.1
International protection code	IP20
Resolution D/A	16 Bit
Parity	Even, Odd, or No Parity
Clock frequency	Up to 2 MHz (parameterizable: 67.5 kHz, 125 kHz (default), 250 kHz, 500 kHz, 1 MHz)
Coding	Gray code, binary code
A/D conversion time	5 µs
Transient protection	Shielding
Current carrying capacity (24 V encoder supply) [mA]	≤ 500
Output signal	0-5 V; 0-20 mA; ±20 mA; 4-20 mA
Overvoltage protection UL and UP	Electronic (35 V, permanent)
Nominal output voltage [V DC]	24
Nominal output voltage (24 V encoder supply) [V DC]	24
Voltage range (24 V encoder supply) [V DC]	19.5-30
Logic voltage UBus [V DC]	5
Conductor cross-section	Flexible: 0.2-1.5 mm²; rigid: 0.2-1.5 mm²; AWG: 24 ... 16
Overload protection	Electronic
Permissible air humidity (storage) [%]	5-95
Permissible air humidity (transport) [%]	5-95
Ambient temperature (storage and transport) [°C]	-40-85
Ambient temperature (during operation) [°C]	-25-60
Air pressure (operation)	70-106 kPa (up to 3,000 m above sea level)
Air pressure (storage / transport)	70-106 kPa (up to 3,000 m above sea level)
Weight [kg]	0.2
