MULTI-AXIS SYSTEM CMS-3SA-11-2

Name: MULTI-AXIS SYSTEM CMS-3SA-11-2
Brand: Bosch Rexroth
SKU: R115852011

MPN: R115852011 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Multi-axis systems
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R115852011 be shipped?

R115852011 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R115852011 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R115852011 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R115852011, subject to availability and destination.

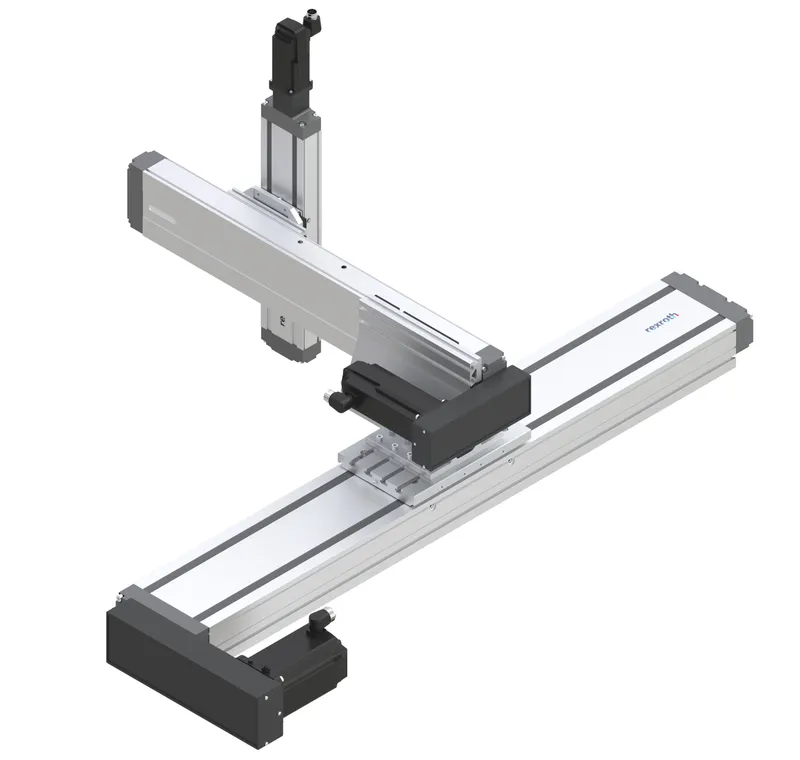

Multi-axis system CMS-3SA, 3D cantilever chamber

Specifications

Product family	Typ 3SA, 3D-Cantilever Raum
Type	3SA-11
Note	Sizing required (LinSelect)
Maximum payload mex max [kg]	2.5
Minimum travel range smin x-axis [mm]	50.0
Maximum travel range smax x-axis [mm]	3000.0
Minimum travel range smin y-axis [mm]	70.0
Maximum travel range smax y-axis [mm]	520.0
Minimum travel range smin z-axis [mm]	40.0
Maximum travel range smax z-axis [mm]	545.0
X-axis travel range (min. ... max.)	50 mm ... 3000 mm
Y-axis travel range (min. ... max.)	70 mm ... 520 mm
Z-axis travel range (min. ... max.)	40 mm ... 545 mm
Maximum permissible linear speed vmax [m/s]	5.0
Note: maximum permissible speed vmax	The maximum value is dependent on the selected configuration.
Weight [kg]	0
