Multi-axis systems Parts
Compare Multi-axis systems
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type | Maximum payload mex max [kg] | Minimum travel range smin y-axis [mm] | Maximum travel range smax y-axis [mm] | Y-axis travel range (min. ... max.) |
|---|---|---|---|---|---|

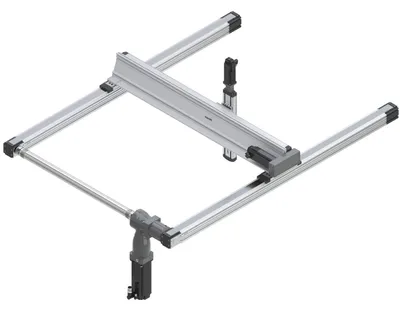

| R115859041 | 3SC-41 | 65.5 | 345.0 | 2374.0 | 345 mm ... 2374 mm |
| R115859040 | 3SC-40 | 65.5 | 510.0 | 1825.0 | 510 mm ... 1825 mm |
| R115859031 | 3SC-31 | 34.5 | 550.0 | 2580.0 | 550 mm ... 2580 mm |
| R115859030 | 3SC-30 | 34.5 | 550.0 | 1460.0 | 550 mm ... 1460 mm |
| R115859023 | 3SC-23 | 34.5 | 380.0 | 2640.0 | 380 mm ... 2640 mm |
| R115859022 | 3SC-22 | 34.5 | 380.0 | 1205.0 | 380 mm ... 1205 mm |
| R115853061 | 3SB-61 | 160.0 | 80.0 | 2400.0 | 80 mm ... 2400 mm |
| R115853050 | 3SB-50 | 150.0 | 80.0 | 1680.0 | 80 mm ... 1680 mm |
| R115853041 | 3SB-41 | 70.0 | 80.0 | 2265.0 | 80 mm ... 2265 mm |
| R115853040 | 3SB-40 | 70.0 | 130.0 | 1770.0 | 130 mm ... 1770 mm |
| R115853031 | 3SB-31 | 35.0 | 60.0 | 2753.0 | 60 mm ... 2753 mm |

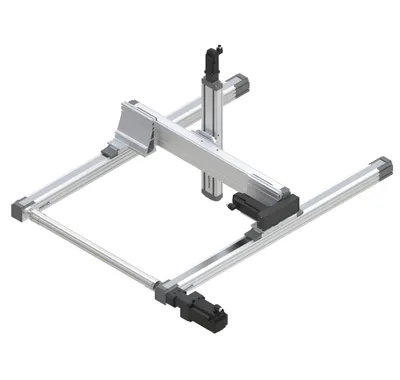

| R115853030 | 3SB-30 | 35.0 | 100.0 | 1523.0 | 100 mm ... 1523 mm |
| R115853023 | 3SB-23 | 27.5 | 90.0 | 1138.0 | 90 mm ... 1138 mm |
| R115853022 | 3SB-22 | 17.0 | 90.0 | 1123.0 | 90 mm ... 1123 mm |
| R115853021 | 3SB-21 | 10.0 | 90.0 | 1409.0 | 90 mm ... 1409 mm |
| R115853020 | 3SB-20 | 10.0 | 90.0 | 1219.0 | 90 mm ... 1219 mm |
| R115852031 | 3SA-31 | 32.5 | 60.0 | 880.0 | 60 mm ... 880 mm |
| R115852030 | 3SA-30 | 32.5 | 60.0 | 880.0 | 60 mm ... 880 mm |
| R115852023 | 3SA-23 | 30.0 | 50.0 | 650.0 | 50 mm ... 650 mm |
| R115852022 | 3SA-22 | 30.0 | 50.0 | 650.0 | 50 mm ... 650 mm |
| R115852021 | 3SA-21 | 10.0 | 50.0 | 800.0 | 50 mm ... 800 mm |
| R115852020 | 3SA-20 | 10.0 | 50.0 | 800.0 | 50 mm ... 800 mm |

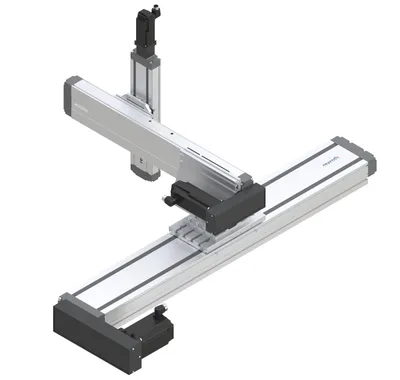

| R115852011 | 3SA-11 | 2.5 | 70.0 | 520.0 | 70 mm ... 520 mm |
| R115852010 | 3SA-10 | 2.5 | 70.0 | 520.0 | 70 mm ... 520 mm |
Common to all listed parts
| Note | Sizing required (LinSelect) |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Note: maximum permissible speed vmax | The maximum value is dependent on the selected configuration. |
| Weight [kg] | 0 |
