LINEAR MODULE MKR-145-NN-3
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Linear modules |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R114620013 be shipped?
R114620013 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R114620013 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R114620013 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R114620013, subject to availability and destination.

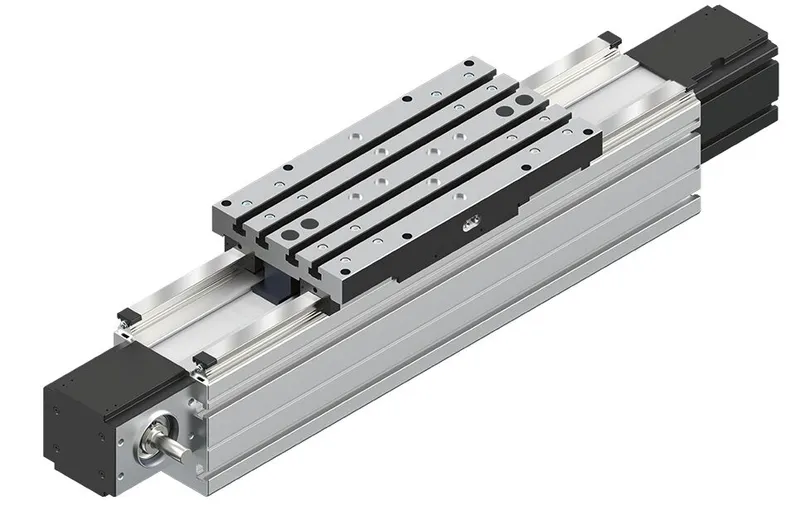

Linear modules MKR with ball rail systems and toothed belt drive, size 145, standard version Linear module with two ball rail systems and toothed belt drive For high torque load capacity and high speeds Rigid aluminum profile frame with Rexroth ball rail system with cover strip. High-performance toothed belt in the largest possible overall width for high drive torques with simultaneously high rigidity The Rexroth ball rail systems feature one-point lubrication from both sides (only suitable for grease lubrication with a manual grease gun) Centering holes also in the frame profile for simple combination with other linear systems and connection elements Standard with integrated solenoid switch for magnetic field sensors Extensive accessories range of connection and clamping units and connecting shafts Name plate with parameters for easy commissioning Economical maintenance thanks to the one-point lubrication option (grease lubrication or oil lubrication) from both sides via the carriage Aluminum carriages with T-slots and centering holes Ball runner block with moderate preload (preload class C1) Realization of greater lengths of up to 6000 mm
Specifications
Specifications
| Nominal size [mm] | MKR-145-NN-3 |
| Linear axes variant | Toothed belt drive |
| Maximum acceleration rate amax [m/s²] | 50.0 |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Max. length Lmax [mm] | 6000.0 |
| Dynamic load capacity, guideway Cgw [N] | 121190 |
| Dynamic torsional moment load capacity Mt [Nm] | 7030.0 |
| Dynamic longitudinal moment load capacity ML [Nm] | 17630.0 |
| Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm] | 2500 |
| Maximum permissible dynamic torsional moment about the y-axis My max [Nm] | 6300 |
| Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm] | 7200 |
| Maximum dynamic load in y-direction Fy max [N] | 49400 |
| Maximum dynamic load in z1-direction Fz1 max [N] | 49400 |
| Maximum dynamic load in z2-direction Fz2 max [N] | 43200 |
| Planar moment of inertia about the y-axis ly [cm⁴] | 3549 |
| Planar moment of inertia about the z-axis lz [cm⁴] | 3046 |
| Permissible ambient temperature with Rexroth servo motor (min. ... max.) | 0 °C ... 40 °C |
| Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.) | Loss of performance at 40 °C or higher |
| Permissible ambient temperature mechanics (min. … max.) | -10 °C ... 60 °C |
| Note: Permissible ambient temperature mechanics (min. … max.) | No dropping below dew point |
| Weight [kg] | 0 |
