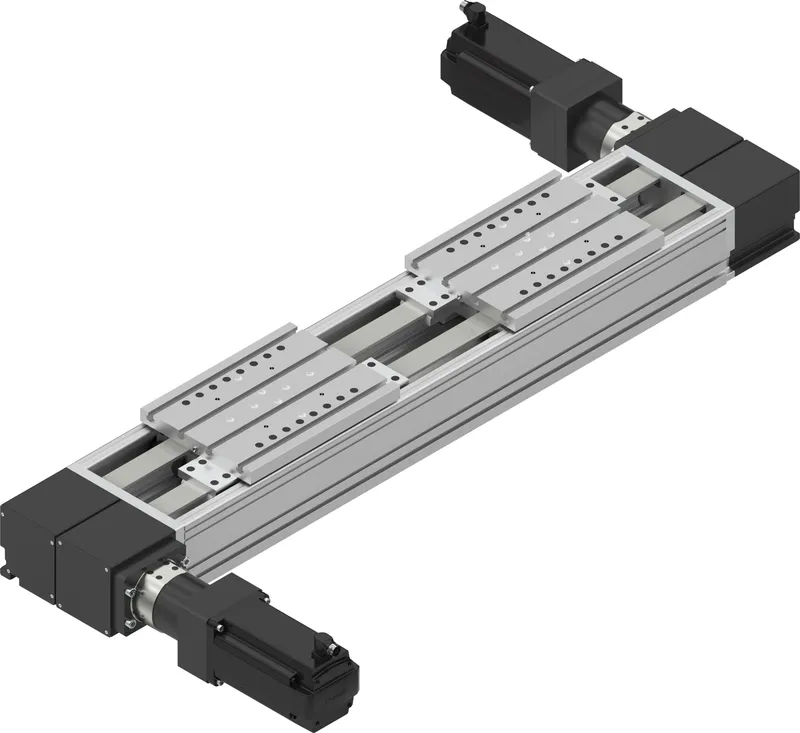

What is the Bosch Rexroth R036475000?

Compact modules with ball rail systems and double toothed belt drive, size 280, standard version, with two carriages

Extremely stable: very high rigidity during bending and torsion

Precise: high repeatability

Highly dynamic: moves heavy masses with max. acceleration

Fast: with engineering and commissioning

Multi-compatible: perfectly scalable with other sizes, including with multi-axis systems and cobots

Specifications

Specifications

Nominal size [mm]CKR-280
Linear axes variantDouble toothed belt drive
Minimum travel range smin [mm]195
Note: minimum travel range sminMinimum required travel range to ensure a reliable lubrication distribution.
Maximum acceleration rate amax [m/s²]50.0
Maximum permissible linear speed vmax [m/s]5.0
Maximum repeatability [µm]±0.05
Max. length Lmax [mm]5500.0
Note: maximum length LmaxLonger lengths on request
Dynamic load capacity, guideway Cgw [N]216700
Dynamic torsional moment load capacity Mt [Nm]19500.0
Dynamic longitudinal moment load capacity ML [Nm]21670.0
Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm]5400
Maximum permissible dynamic torsional moment about the y-axis My max [Nm]6000
Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm]5517
Maximum dynamic load in y-direction Fy max [N]55170
Maximum dynamic load in z1-direction Fz1 max [N]86685
Maximum dynamic load in z2-direction Fz2 max [N]60000
Planar moment of inertia about the y-axis ly [cm⁴]2242
Planar moment of inertia about the z-axis lz [cm⁴]15802
Permissible ambient temperature with Rexroth servo motor (min. ... max.)0 °C ... +40 °C
Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.)loss of performance at 40 °C or higher
Permissible ambient temperature mechanics (min. … max.)-10 °C ... +60 °C
Note: Permissible ambient temperature mechanics (min. … max.)No dropping below dew point
Weight [kg]0

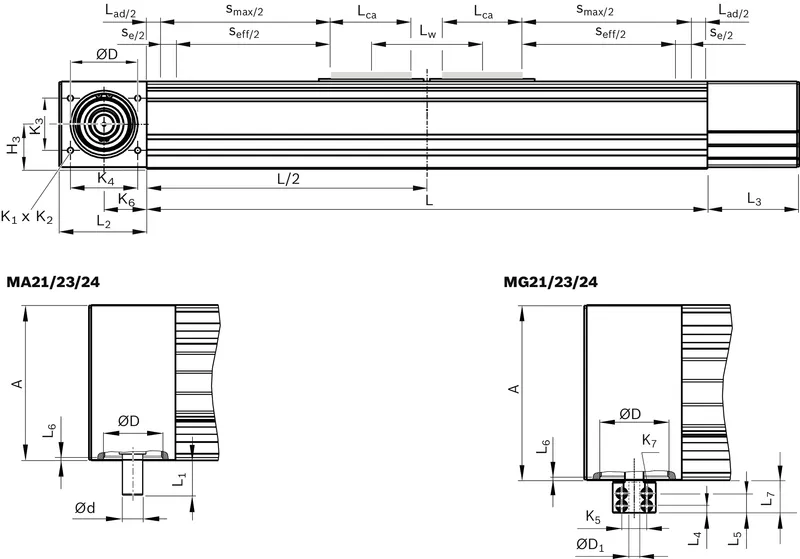

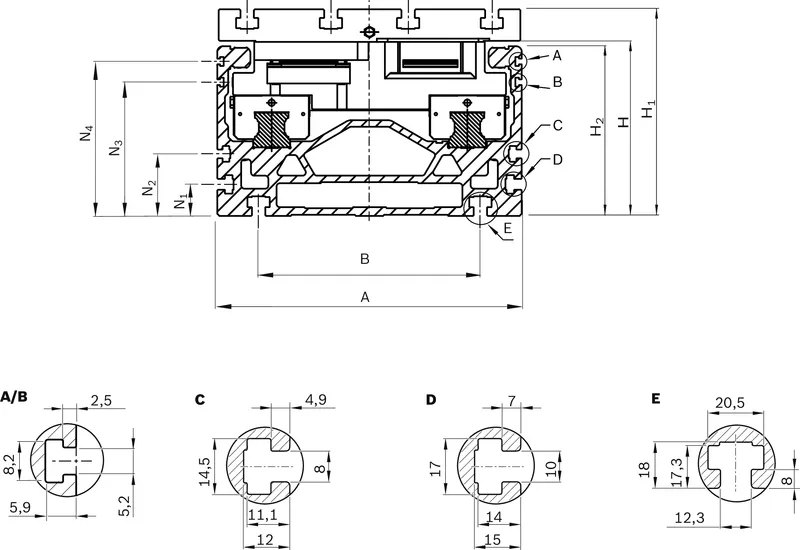

Dimension A (profiled rail systems) [mm]280
Dimension B (profiled rail systems) [mm]204
Dimension d h6 [mm]35
Dimension d H7 [mm]120
Dimension D1 H7 [mm]25
Dimension H [mm]160.0
Dimension H1 (profiled rail systems) [mm]190
Dimension H2 (profiled rail systems) [mm]156
Dimension H3 [mm]79.5
Dimension K1M12
Dimension K2 thread depth [mm]26
Dimension K3 (profiled rail systems) [mm]93
Dimension K4 (profiled rail systems) [mm]120
Dimension K5 [mm]40
Dimension K5 tolerance [mm]±0.1
Dimension K6 [mm]102
Dimension K7M10
Dimension L1 [mm]72
Dimension L2 [mm]185
Dimension L3 [mm]185
Dimension L4 [mm]11
Dimension L5 [mm]20
Dimension L6 [mm]4
Dimension L7 [mm]52
Dimension N1 (profiled rail systems) [mm]29
Dimension N2 (profiled rail systems) [mm]57
Dimension N3 (profiled rail systems) [mm]123
Dimension N4 (profiled rail systems) [mm]142
Note dimension K7ISO 4762

R036475000: frequently asked questions

When can R036475000 be shipped?

R036475000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R036475000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R036475000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R036475000, subject to availability and destination.
