Bosch Rexroth R036450000

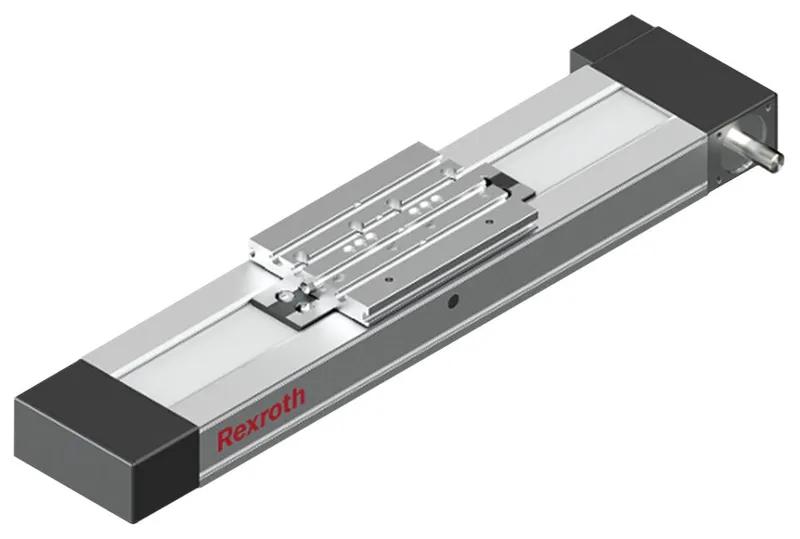

COMPACT MODULE CKR-145-NN-1

MPN
R036450000
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R036450000?

Compact modules with ball rail systems and toothed belt drive, size 145, standard version

Four different lubrication versions

Preloaded toothed belt

Intelligent toothed belt guide protects inner components

Realization of greater lengths of up to 10000 mm

Repeatability of up to ± 0.05 mm

Specifications

Specifications

Nominal size [mm]CKR-145
Linear axes variantToothed belt drive
Minimum travel range smin [mm]60
Note: minimum travel range sminMinimum required travel range to ensure a reliable lubrication distribution.
Maximum acceleration rate amax [m/s²]50.0
Maximum permissible linear speed vmax [m/s]5.0
Max. length Lmax [mm]5500.0
Dynamic load capacity, guideway Cgw [N]76025
Dynamic torsional moment load capacity Mt [Nm]3345.0
Dynamic longitudinal moment load capacity ML [Nm]3801.0
Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm]1267
Maximum permissible dynamic torsional moment about the y-axis My max [Nm]1440
Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm]683
Maximum dynamic load in y-direction Fy max [N]13660
Maximum dynamic load in z1-direction Fz1 max [N]28800
Maximum dynamic load in z2-direction Fz2 max [N]28800
Planar moment of inertia about the y-axis ly [cm⁴]91.28
Planar moment of inertia about the z-axis lz [cm⁴]1049
Permissible ambient temperature with Rexroth servo motor (min. ... max.)0 °C ... +40 °C
Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.)Loss of performance at 40 °C or higher
Permissible ambient temperature mechanics (min. … max.)-10 °C ... +60 °C
Note: Permissible ambient temperature mechanics (min. … max.)No dropping below dew point
Weight [kg]0
Dimension A (profiled rail systems) [mm]145
Dimension H [mm]65.0
Dimension H1 (profiled rail systems) [mm]85

R036450000: frequently asked questions

When can R036450000 be shipped?

R036450000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R036450000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R036450000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R036450000, subject to availability and destination.
