COMPACT MODULE CKR-280-NN-1

Name: COMPACT MODULE CKR-280-NN-1
Brand: Bosch Rexroth
SKU: R036470000

MPN: R036470000 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Compact modules
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R036470000 be shipped?

R036470000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R036470000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R036470000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R036470000, subject to availability and destination.

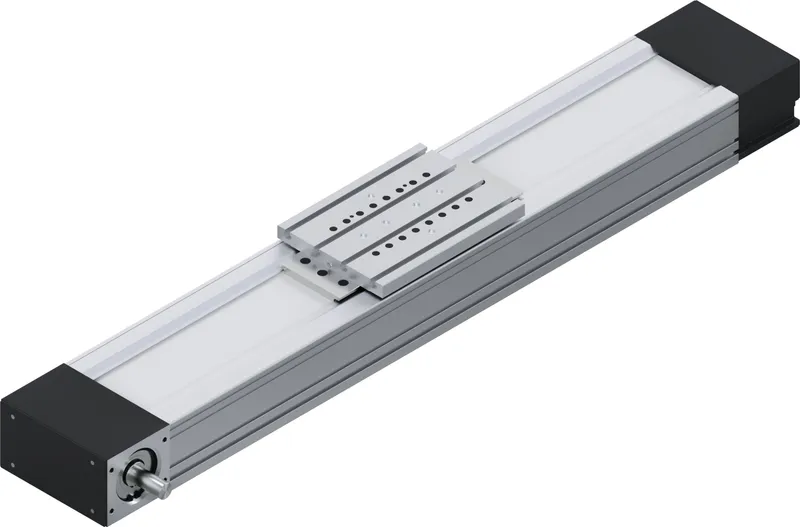

Compact modules with ball rail systems and toothed belt drive, size 280, standard version

Specifications

Nominal size [mm]	CKR-280
Linear axes variant	Toothed belt drive
Minimum travel range smin [mm]	195
Note: minimum travel range smin	Minimum required travel range to ensure a reliable lubrication distribution.
Maximum acceleration rate amax [m/s²]	50.0
Maximum permissible linear speed vmax [m/s]	5.0
Max. length Lmax [mm]	5500.0
Dynamic load capacity, guideway Cgw [N]	216700
Dynamic torsional moment load capacity Mt [Nm]	19500.0
Dynamic longitudinal moment load capacity ML [Nm]	21670.0
Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm]	5400
Maximum permissible dynamic torsional moment about the y-axis My max [Nm]	6000
Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm]	5517
Maximum dynamic load in y-direction Fy max [N]	55170
Maximum dynamic load in z1-direction Fz1 max [N]	86685
Maximum dynamic load in z2-direction Fz2 max [N]	60000
Planar moment of inertia about the y-axis ly [cm⁴]	2242
Planar moment of inertia about the z-axis lz [cm⁴]	15802
Permissible ambient temperature with Rexroth servo motor (min. ... max.)	0 °C ... +40 °C
Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.)	loss of performance at 40 °C or higher
Permissible ambient temperature mechanics (min. … max.)	-10 °C ... +60 °C
Note: Permissible ambient temperature mechanics (min. … max.)	No dropping below dew point
Weight [kg]	0
Dimension A (profiled rail systems) [mm]	280
Dimension H [mm]	160.0
Dimension H1 (profiled rail systems) [mm]	190
