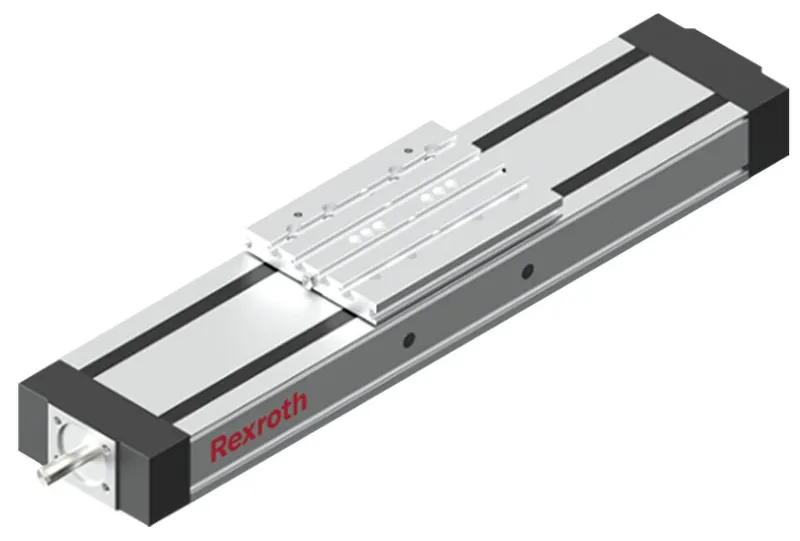

Bosch Rexroth R036020000

COMPACT MODULE CKK-070-NN-1

MPN
R036020000
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R036020000?

Compact modules with ball rail systems and ball screw assembly, size 70, standard version

Four different lubrication versions

Driven by precision ball screw assembly in rolled version, tolerance grade T7 in accordance with DIN 69051 with single nut set to zero-clearance

High travel speeds thanks to large leads with high precision over long lengths

Repeatability of up to ± 0.005 mm

Protection of installation elements through a cover plate and two cover strips as well as "Resist" cover for increased protection

Screw support for the realization of high speeds on long assembly lengths for CKK-200

Specifications

Specifications

Nominal size [mm]CKK-070
Linear axes variantBall screw assembly
Minimum travel range smin [mm]40
Note: minimum travel range sminMinimum required travel range to ensure a reliable lubrication distribution.
Maximum acceleration rate amax [m/s²]50.0
Maximum permissible linear speed vmax [m/s]0.25
Max. length Lmax [mm]650.0
Dynamic load capacity, guideway Cgw [N]3830
Dynamic load capacity, fixed bearing Cfb [N]1600
Dynamic load capacity, ball screw assembly Cbs [N]2370
Dynamic torsional moment load capacity Mt [Nm]77.0
Dynamic longitudinal moment load capacity ML [Nm]111.0
Note: dynamic longitudinal moment load capacity MLThe maximum values deviate for carriages with a variable centerline-to-centerline distance.
Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm]77
Maximum permissible dynamic torsional moment about the y-axis My max [Nm]111
Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm]60
Maximum dynamic load in y-direction Fy max [N]2070
Maximum dynamic load in z1-direction Fz1 max [N]3830
Maximum dynamic load in z2-direction Fz2 max [N]3830
Planar moment of inertia about the y-axis ly [cm⁴]5.72
Planar moment of inertia about the z-axis lz [cm⁴]50.0
Permissible ambient temperature with Rexroth servo motor (min. ... max.)0 °C ... +40 °C
Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.)Loss of performance at 40°C or higher
Permissible ambient temperature mechanics (min. … max.)-10 °C ... +60 °C
Note: Permissible ambient temperature mechanics (min. … max.)No dropping below dew point
Weight [kg]0
Dimension A (profiled rail systems) [mm]70
Dimension H [mm]32.0
Dimension H1 (profiled rail systems) [mm]44.5

R036020000: frequently asked questions

When can R036020000 be shipped?

R036020000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R036020000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R036020000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R036020000, subject to availability and destination.
