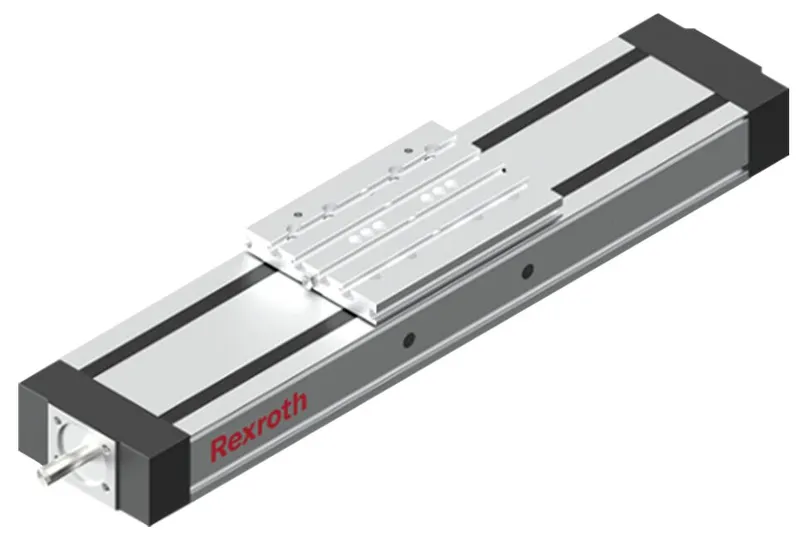

Bosch Rexroth R036050000

COMPACT MODULE CKK-145-NN-1

MPN
R036050000
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R036050000?

Compact modules with ball rail systems and ball screw assembly, size 145, standard version

Four different lubrication versions

Driven by precision ball screw assembly in rolled version, tolerance grade T7 in accordance with DIN 69051 with single nut set to zero-clearance

High travel speeds thanks to large leads with high precision over long lengths

Repeatability of up to ± 0.005 mm

Protection of installation elements through a cover plate and two cover strips as well as "Resist" cover for increased protection

Screw support for the realization of high speeds on long assembly lengths for CKK-200

Specifications

Specifications

Nominal size [mm]CKK-145
Linear axes variantBall screw assembly
Minimum travel range smin [mm]60
Note: minimum travel range sminMinimum required travel range to ensure a reliable lubrication distribution.
Maximum acceleration rate amax [m/s²]50.0
Maximum permissible linear speed vmax [m/s]2.53
Max. length Lmax [mm]1800.0
Dynamic load capacity, guideway Cgw [N]76025
Dynamic load capacity, fixed bearing Cfb [N]17000
Dynamic load capacity, ball screw assembly Cbs [N]16920
Dynamic torsional moment load capacity Mt [Nm]3345.0
Dynamic longitudinal moment load capacity ML [Nm]3801.0
Note: dynamic longitudinal moment load capacity MLThe maximum values deviate for carriages with a variable centerline-to-centerline distance.
Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm]1267
Maximum permissible dynamic torsional moment about the y-axis My max [Nm]1440
Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm]683
Maximum dynamic load in y-direction Fy max [N]13660
Maximum dynamic load in z1-direction Fz1 max [N]28800
Maximum dynamic load in z2-direction Fz2 max [N]28800
Planar moment of inertia about the y-axis ly [cm⁴]125.4
Planar moment of inertia about the z-axis lz [cm⁴]1150
Permissible ambient temperature with Rexroth servo motor (min. ... max.)0 °C ... +40 °C
Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.)Loss of performance at 40 °C or higher
Permissible ambient temperature mechanics (min. … max.)-10 °C ... +60 °C
Note: Permissible ambient temperature mechanics (min. … max.)No dropping below dew point
Weight [kg]0
Dimension A (profiled rail systems) [mm]145
Dimension H [mm]65.0
Dimension H1 (profiled rail systems) [mm]85
