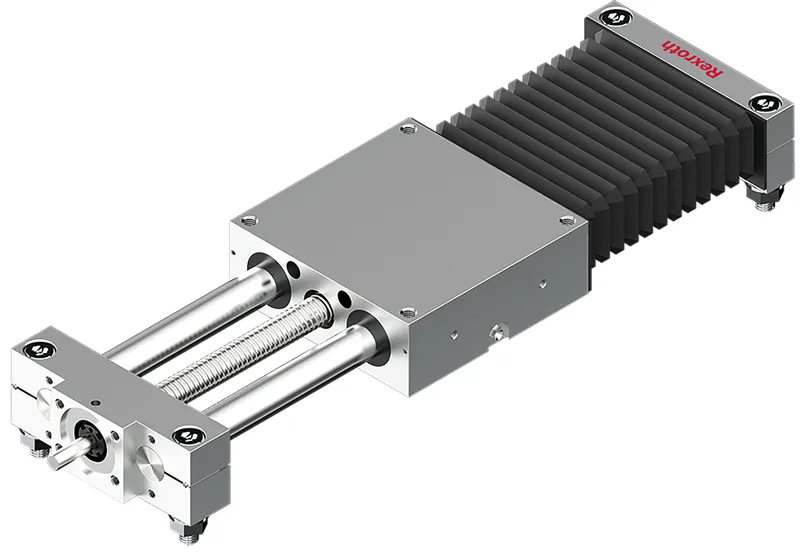

Bosch Rexroth R026100000

LINEAR SLIDE SGK-085-NN-1

MPN
R026100000
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R026100000?

Closed format for unsupported installation

High feed forces

Particularly suitable for environments with high contamination levels (closed bellows)

High travel speed due to large leads

Rexroth precision ball screw assembly in rolled version, tolerance grade T7 in accordance with DIN 69051 with backlash-free cylindrical nut

Cost-effective maintenance through central lubrication (grease lubrication) on both sides of the guide system

Easy motor attachment via locating feature and threads

Extensive accessories available

Specifications

Specifications

Nominal size [mm]SGK-085
Linear axes variantClosed with ball screw assembly
Maximum acceleration rate amax [m/s²]27.0
Maximum permissible linear speed vmax [m/s]0.25
Max. length Lmax [mm]1000.0
Dynamic load capacity, guideway Cgw [N]2700
Dynamic load capacity, fixed bearing Cfb [N]5280
Dynamic load capacity, ball screw assembly Cbs [N]2250
Dynamic torsional moment load capacity Mt [Nm]56.0
Dynamic longitudinal moment load capacity ML [Nm]62.0
Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm]18
Maximum permissible dynamic torsional moment about the y-axis My max [Nm]19
Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm]19
Maximum dynamic load in y-direction Fy max [N]840
Permissible ambient temperature with Rexroth servo motor (min. ... max.)0 °C ... 40 °C
Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.)No dropping below dew point
Weight [kg]0
Maximum dynamic load in z-direction Fz max [N]840
