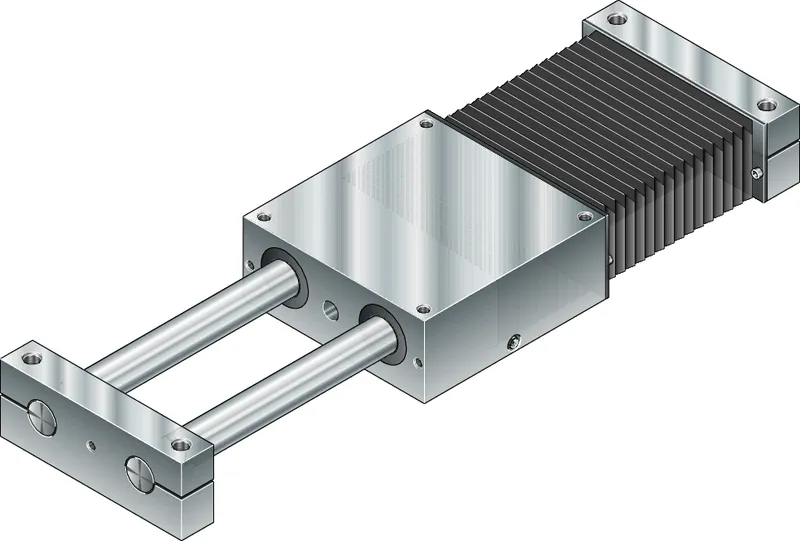

LINEAR SLIDE SGO-230-NN-1

Name: LINEAR SLIDE SGO-230-NN-1
Brand: Bosch Rexroth
SKU: R026050000

MPN: R026050000 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Linear motion slides
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R026050000 be shipped?

R026050000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R026050000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R026050000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R026050000, subject to availability and destination.

Closed format for unsupported installation Particularly suitable for environments with high contamination levels (closed bellows)

Specifications

Nominal size [mm]	SGO-230
Linear axes variant	Closed without drive
Maximum acceleration rate amax [m/s²]	150.0
Note: Max. acceleration amax	For linear motion slides without drive SGO/SOO, unlike the SGK/SOK, there is no ball screw assembly
Maximum permissible linear speed vmax [m/s]	3.0
Note: maximum permissible speed vmax	Speeds of up to 5 m/s possible. Service life is limited by the increased wear of the plastic parts.
Max. length Lmax [mm]	4000.0
Dynamic load capacity, guideway Cgw [N]	26770
Dynamic torsional moment load capacity Mt [Nm]	1633.0
Dynamic longitudinal moment load capacity ML [Nm]	1860.0
Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm]	531
Maximum permissible dynamic torsional moment about the y-axis My max [Nm]	605
Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm]	605
Maximum dynamic load in y-direction Fy max [N]	8700
Permissible ambient temperature with Rexroth servo motor (min. ... max.)	0 °C ... 40 °C
Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.)	No dropping below dew point
Weight [kg]	0
Maximum dynamic load in z-direction Fz max [N]	8700
