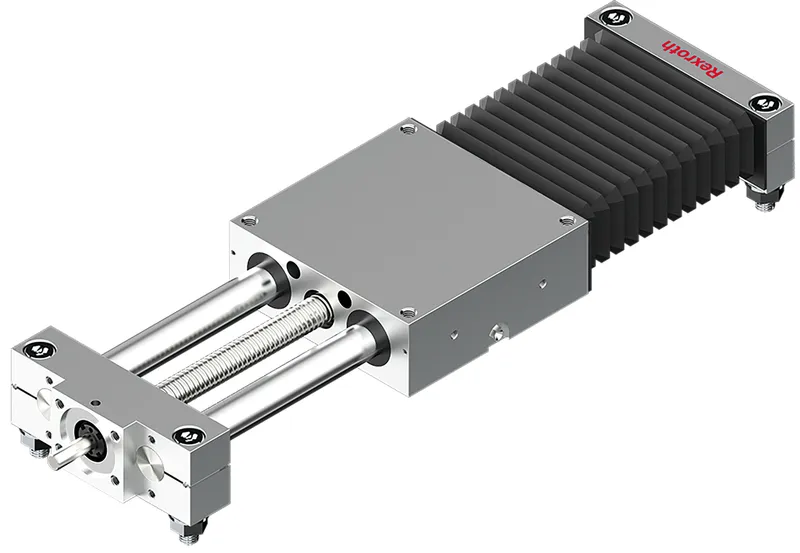

LINEAR SLIDE SGK-180-NN-1

Name: LINEAR SLIDE SGK-180-NN-1
Brand: Bosch Rexroth
SKU: R026140000

MPN: R026140000 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Linear motion slides
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R026140000 be shipped?

R026140000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R026140000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R026140000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R026140000, subject to availability and destination.

Closed format for unsupported installation High feed forces Particularly suitable for environments with high contamination levels (closed bellows) High travel speed due to large leads Rexroth precision ball screw assembly in rolled version, tolerance grade T7 in accordance with DIN 69051 with backlash-free cylindrical nut Cost-effective maintenance through central lubrication (grease lubrication) on both sides of the guide system Easy motor attachment via locating feature and threads Extensive accessories available

Specifications

Nominal size [mm]	SGK-180
Linear axes variant	Closed with ball screw assembly
Maximum acceleration rate amax [m/s²]	27.0
Maximum permissible linear speed vmax [m/s]	1.26
Max. length Lmax [mm]	3000.0
Dynamic load capacity, guideway Cgw [N]	15600
Dynamic load capacity, fixed bearing Cfb [N]	17000
Dynamic load capacity, ball screw assembly Cbs [N]	15700
Dynamic torsional moment load capacity Mt [Nm]	748.0
Dynamic longitudinal moment load capacity ML [Nm]	787.0
Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm]	268
Maximum permissible dynamic torsional moment about the y-axis My max [Nm]	282
Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm]	282
Maximum dynamic load in y-direction Fy max [N]	5580
Permissible ambient temperature with Rexroth servo motor (min. ... max.)	0 °C ... 40 °C
Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.)	No dropping below dew point
Weight [kg]	0
Maximum dynamic load in z-direction Fz max [N]	5580
