STOP GATE VE 5/OCD-1000-E

Name: STOP GATE VE 5/OCD-1000-E
Brand: Bosch Rexroth
SKU: 3842998925

MPN: 3842998925 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Stop gate TS 5
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842998925 be shipped?

3842998925 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842998925 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842998925 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842998925, subject to availability and destination.

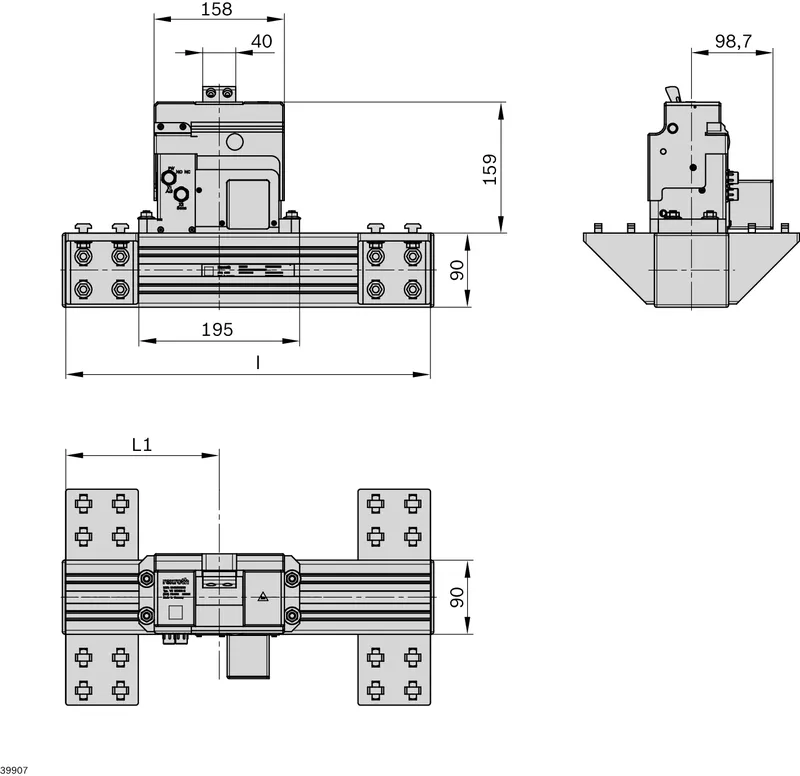

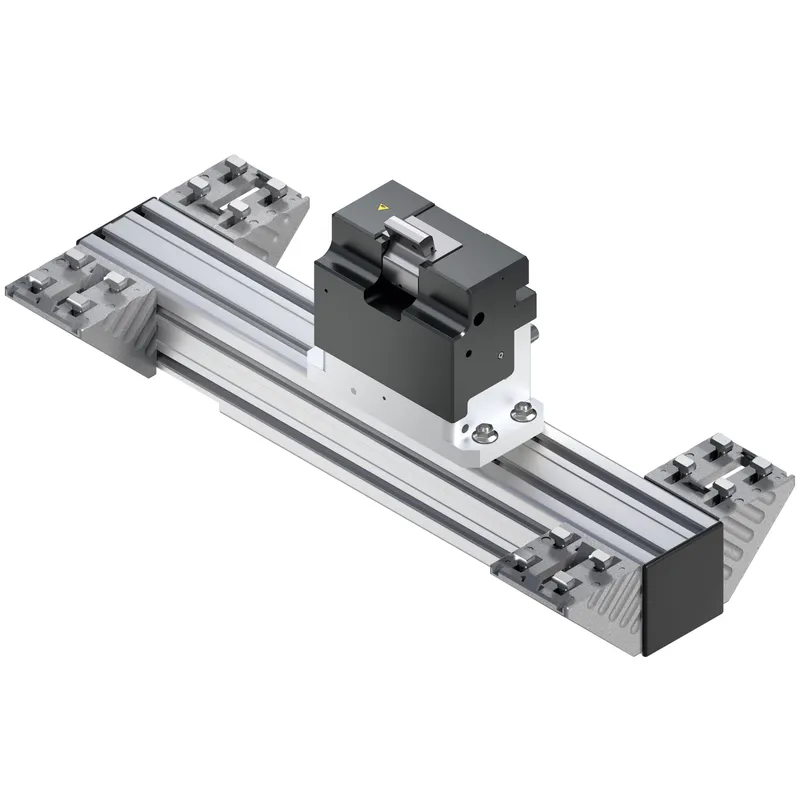

Stop gate VE 5/OCD-1000-E Please note that in the limit ranges of the permissible weight/speed combinations, the damping behavior may not be optimal. Damped stopping of a workpiece pallet at the defined stop surface and for separating workpiece pallets Electrical stop gate for the set-up of plants without pneumatic system Can be combined with WT 5 Little installation work as there is no pneumatic system Low noise development Loading only in the direction of transport No spring return, the stop blade of the stop gate is reset or put up by means of a step motor Hydraulic damping, not adjustable Transportation Control Installation location AO = 1: ST 5/OC; AS 5/OC; PE 5/OC; PE 5/OC-T Installation location AO = 2: PE 5/OC; PE 5/OC-T (b = 455; lT = 455) Installation location AO = 3: PE 5/OC (b = 455; lT = 650) Installation location AO = 4: PE 5/OC-T (lT = 455; b = 650)

Specifications

ESD	Yes
Track width in direction of transport [b max] [mm]	1500
Track width in direction of transport [b min] [mm]	400
Operating temperature [T] max	+5 ... +60 °C
Nominal speed [vN]	12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	1000; 1000; 700; 800; 900
Cycle Time [s]	5
Delivery information	Not assembled
Notice	1 = ST 5/OC; AS 5/OC; PE 5/OC; PE 5/OC-T<br/>2 = PE 5/OC & PE 5/OC-T (455x455)<br/>3 = PE 5/OC(b=455, l<sub>WT</sub>=650)<br/>4 = PE 5/OC-T (bL=455, bQ=650)
Material information	Housing: Aluminum, hard anodized; Stop: Steel, hardened
Min. workpiece pallet weight m	50 kg
Required accessories	Actuator and sensor system cables common in the market (5-pole)
Weight [kg]	0
