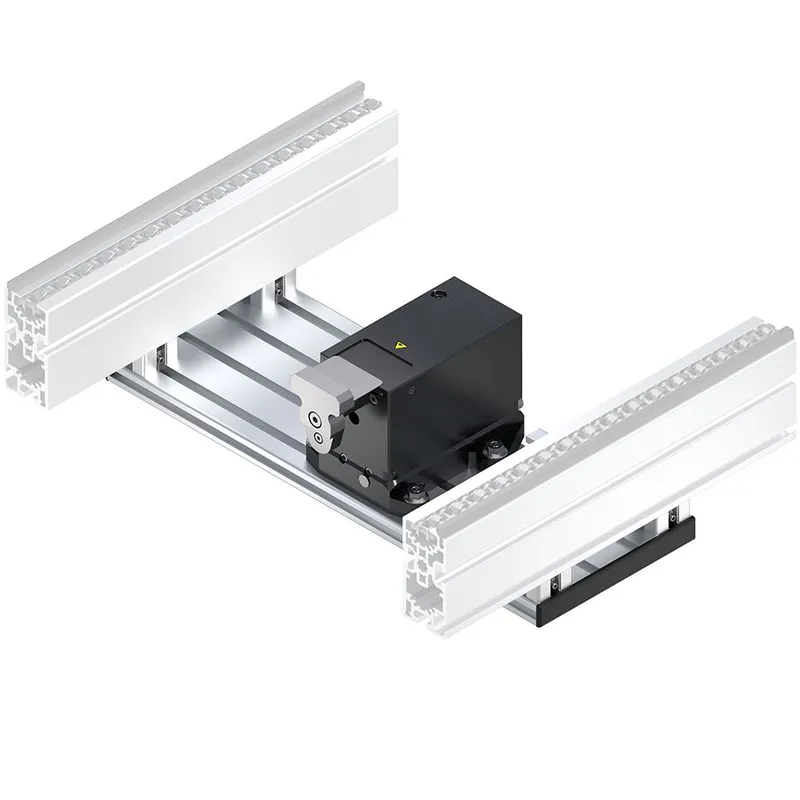

STOP GATE VE 2/D410-EH

Name: STOP GATE VE 2/D410-EH
Brand: Bosch Rexroth
SKU: 3842998923

MPN: 3842998923 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Electrical stop gates TS 2plus
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842998923 be shipped?

3842998923 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842998923 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842998923 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842998923, subject to availability and destination.

Stop gate VE 2/D410-EH To the workpiece pallet separation in sections Dampened stop gate Can be combined with WT 2/H Can be combined with all TS 2plus components Loading only in the direction of transport No spring return, the stop blade of the stop gate is reset or put up by means of a step motor Electrical stop gate for the set-up of plants without pneumatic system Little installation work as there is no pneumatic system Low noise development Notice: A workpiece pallet may only hit the stop if the latter is completely in its top position

Specifications

Profile slot	10
Track width in direction of transport [b max] [mm]	1200
Track width in direction of transport [b min] [mm]	400
Operating temperature [T] max	+5 ... +60 °C
Nominal speed [vN]	12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	410; 200; 220; 250; 305; 410
Cycle Time [s]	5
Notice	Individual width variants can be ordered
Preferred values [mm]	1040; 1200; 400; 480; 640; 800
Material information	Stop: Steel, hardened; Housing: Aluminum, hard anodized
Min. workpiece pallet weight m	20 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 6 m/min	410 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 9 m/min	305 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 12 m/min	250 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 15 m/min	220 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 18 m/min	200 kg
Required accessories	Actuator and sensor system cables common in the market (5-pole)
Weight [kg]	0
