BELT SECTION BS 2/C-H

Name: BELT SECTION BS 2/C-H
Brand: Bosch Rexroth
SKU: 3842998935

MPN: 3842998935 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Belt section flat top chain
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842998935 be shipped?

3842998935 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842998935 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842998935 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842998935, subject to availability and destination.

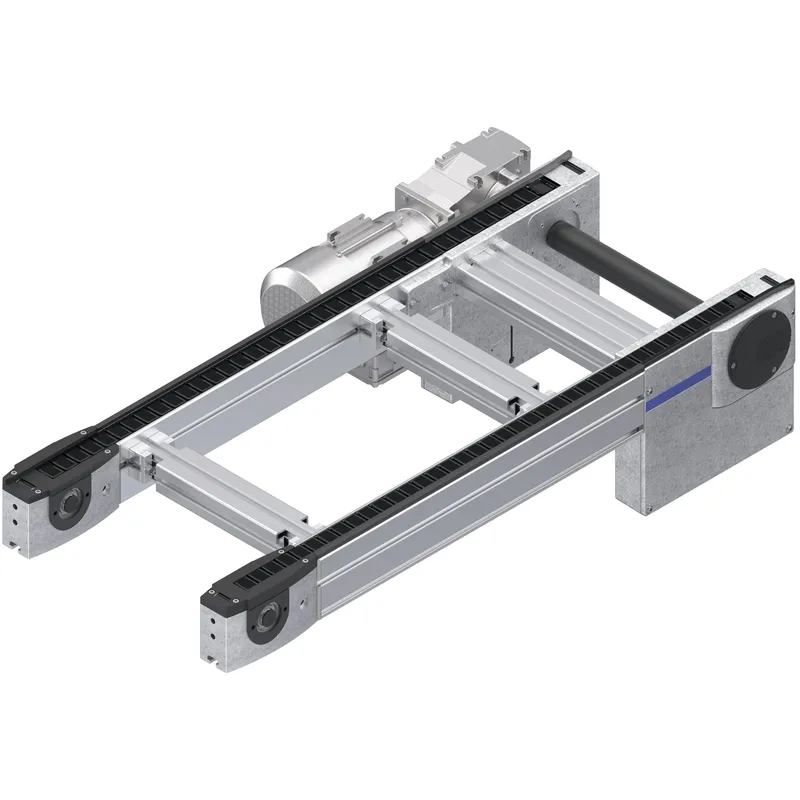

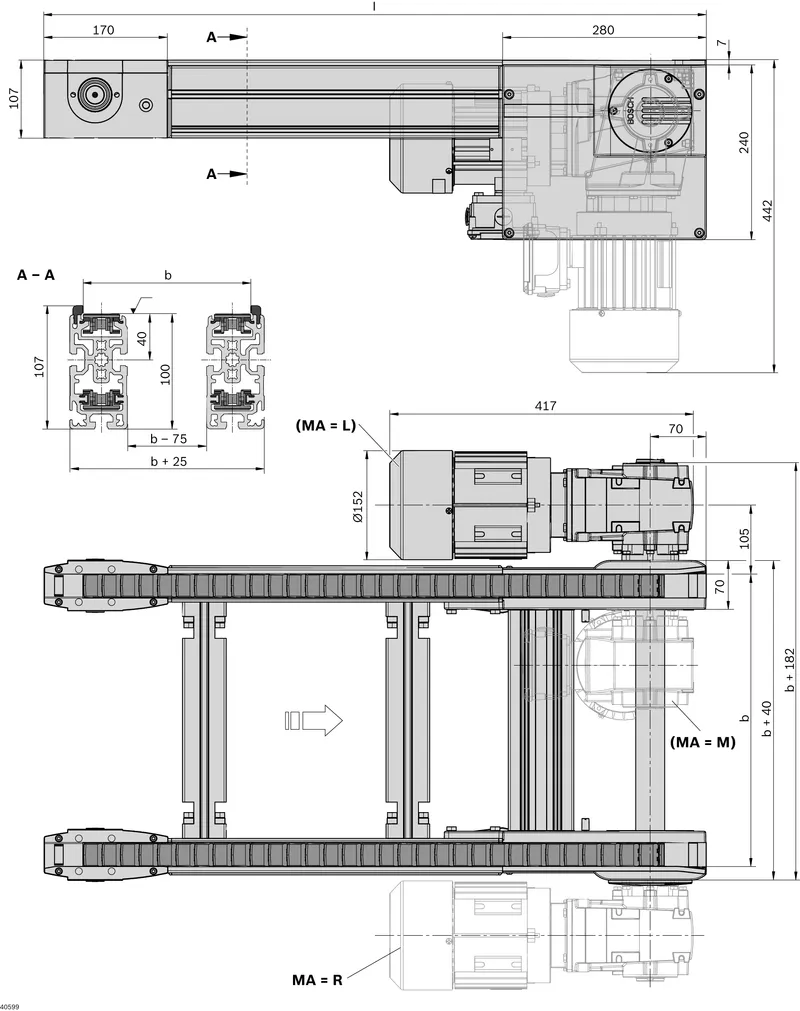

Functional operation conveyor section complete with drive The belt section is a ready-to-use conveyor section with built-in drive for the transportation of workpiece pallets in the longitudinal direction or for the transverse conveying of the workpiece pallet between parallel conveyor sections in conjunction with two HQ 2 lift transverse units. Sturdy design for especially heavy-duty systems Longitudinal conveying of the workpiece pallet on conveyor sections of up to 6000 mm Transverse conveying between parallel conveyor sections in conjunction with lift transverse units Can be combined with WT 2, WT 2/F with wear pad PA, WT 2/LS Special models on request Stainless steel workpiece pallet lateral guide Profile width: 50 mm Use with high accumulation loads The WT 2/LS can be used for longitudinal conveyors with this component Cross-traversing and motor mounting in the center (MA = M) is not possible Positioning of WTs in the area of the drive heads/return heads is not permitted.

Specifications

Condition on delivery	Assembled
ESD	Yes
Length max [l max] [mm]	6000
Length min [L min] [mm]	650
Dry room [%rF]	<1
Section load in accumulation operation [kg]	400
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min nicht möglich bei f = 60 Hz; 6 m/min; 9 m/min

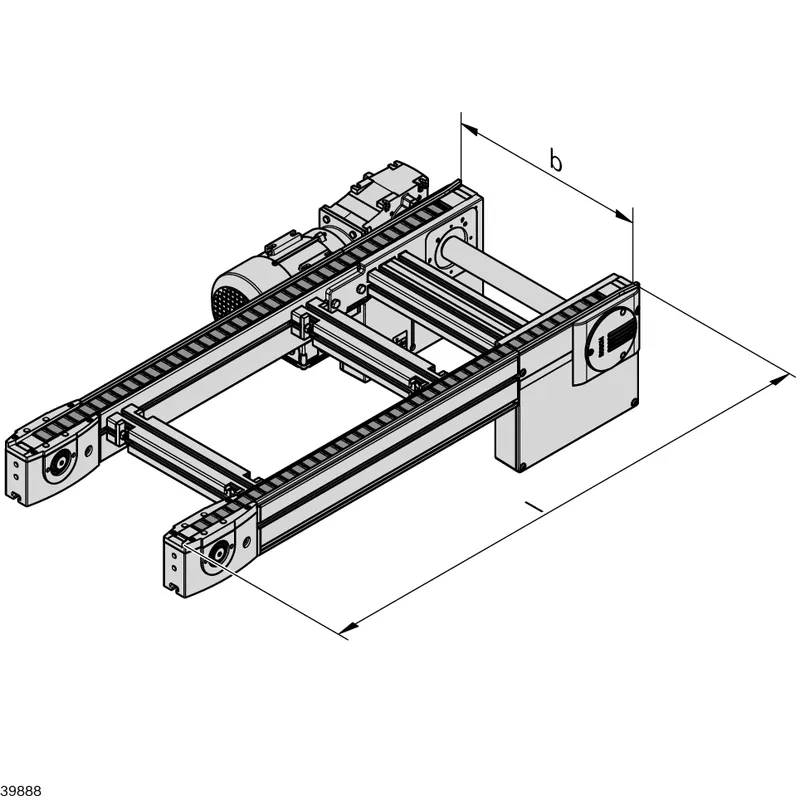

Track width in direction of transport [b min] 02 [mm]	400
Track width in direction of transport [b max] 02 [mm]	1200
Material information	Glide profile: PA/steel; corrosion-resistant; Lateral guide: Stainless steel; Section profile: Aluminum, natural; anodized
Clean room classification	ISO class 7
Conveyor medium	Plastic flat-top chain (with KA = A suitable for use in an EPA)
Weight [kg]	0
