JUNCTION ASSEMBLY JU 5/H

Name: JUNCTION ASSEMBLY JU 5/H
Brand: Bosch Rexroth
SKU: 3842998530

MPN: 3842998530 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Junctions
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842998530 be shipped?

3842998530 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842998530 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842998530 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842998530, subject to availability and destination.

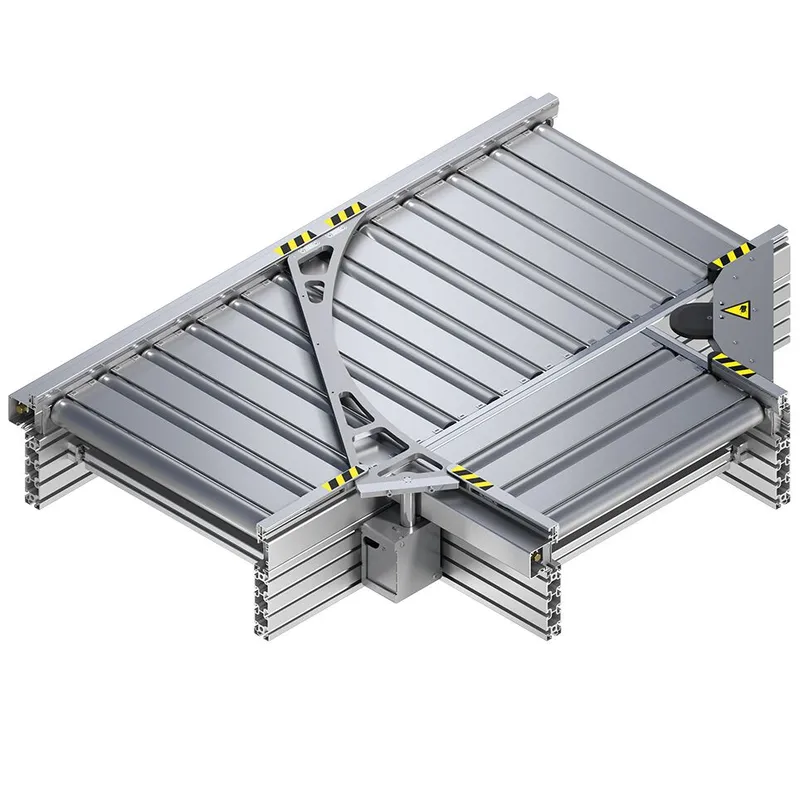

JU 5/H junction The junction is a module for branching transport of workpiece pallets The king shaft installation for the main or secondary section can be installed on either side The junction is a passive element without any control. The workpiece pallet moves the diverter arm into position <b>Note:</b> The junction is not suitable for accumulation operation. For permissible loads, see table (under order details). Reversible operation not permitted Accumulation operation not permitted Support profile made of anodized aluminum Lateral guide profile made of steel, polymer, or aluminum in an anodized aluminum support Driven via king shaft with bevel gears made of sintered metal Roller spacing p = 130 Full rollers m<sub>G</sub> Up to 300 kg (at v = 9 m/min)

Specifications

Lateral guide material [LG]	1; 2; 3
Roller material [TR]	1 = Stahl, verzinkt; 2 = Stahl, nitrocarburiert
Number of rollers [N]	13; 15; 17; 13; 15; 17
Workpiece pallet length [lWT] [mm]	1040; 455; 650; 845
Length of main section [l1] [mm]	1300; 1560; 1820
Length of secondary section [l2] [mm]	382.5; 415; 447
Length of secondary section up to center of main section [l3] [mm]	650; 780; 910
Length of secondary section and width of main section [l4] [mm]	1145; 1372.5; 917.5
Track width in direction of transport [b] [mm]	455; 650; 845
Track width [b] [mm]	455; 650; 845
Delivery information	Optional: Protective covers mounted (protective covers cannot be ordered separately); Ready-to-install

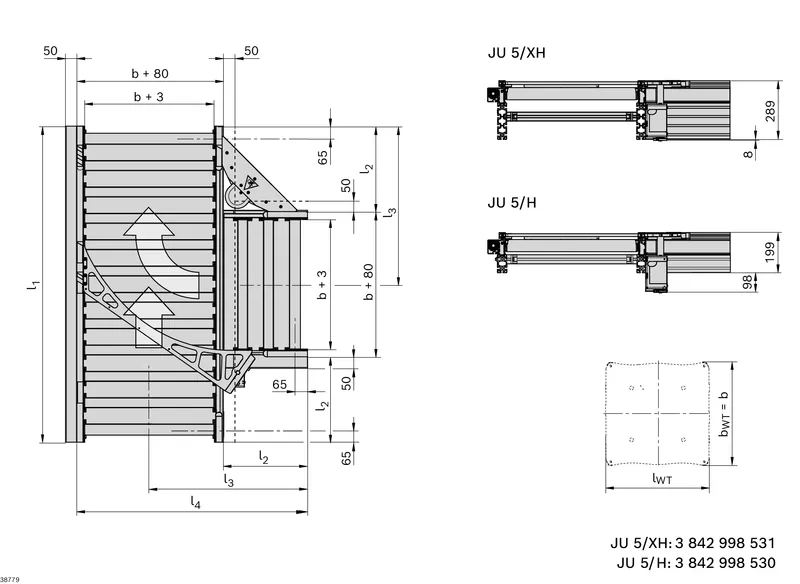

Notice	l<sub>1</sub> = length of main section; l<sub>2</sub> = length of secondary section; l<sub>3</sub> = length of secondary section up to center of main section; l<sub>4</sub> = length of secondary section and width of main section
Weight [kg]	0
