BELT SECTION CSS/B-3

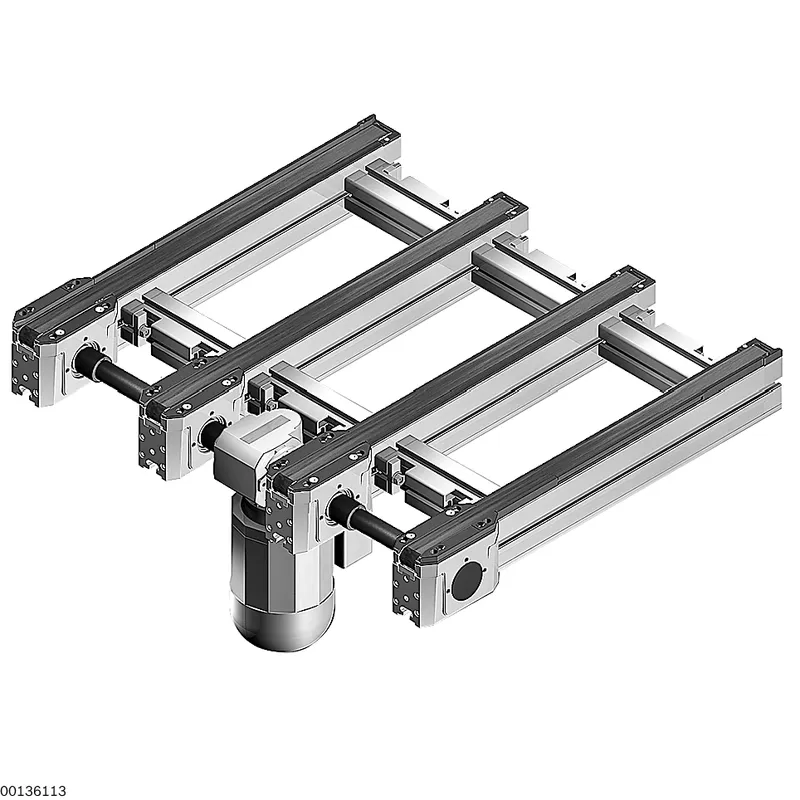

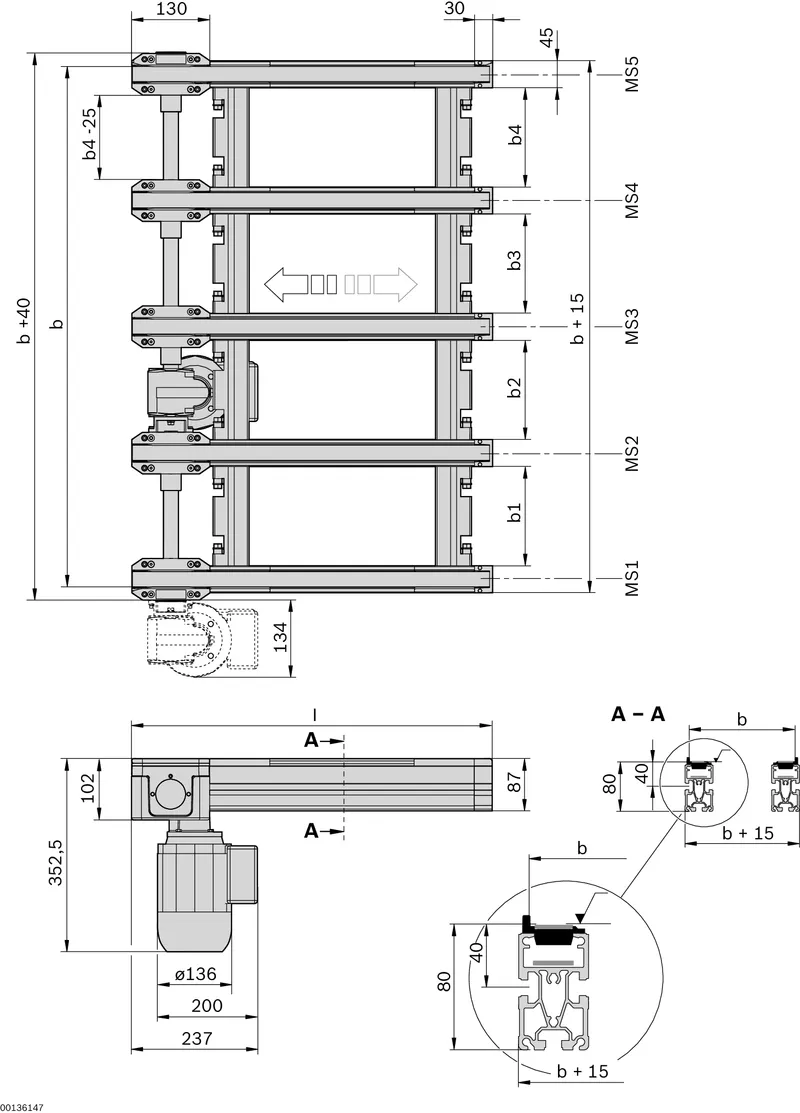

Belt section CSS/B-3 Minor corrections of the end position of the solar modules on the belt section possible Most cost-effective solution Longitudinal conveyor for glass modules of various dimensions Longitudinal conveyor for wafer trays Not intended for accumulation operation Belt section consisting of two to five tracks for secure support of the glass modules across the entire width. Distance between the tracks can be determined individually (b1 to b4) Permissible load:<br>‒ Per track: max. 0.15 kg/cm support surface length and max. 60 kg<br>‒ Per belt section: max. 120 kg Suitable for reversible operation (up to 3000 mm) Conveyor medium: Special textile toothed belt. Due to the low friction coefficient in relation to the workpiece, particularly well suited for lateral positioning procedures Simple exchange of the toothed belts by dismantling from above without realignment Gear motors are suitable for operation with frequency converter Motor mounting on right (MA = R) or left (MA = L) possible on each track of the belt section (MS = 1 ... 5; MS = 1 denotes the left track in the direction of transport). When mounting the motor between the tracks, observe a minimum distance of 165 mm (b1 to b4) Motor mounting outside: suspended or lying down;<br>Motor mounting between the tracks: suspended Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K) Version with lateral guide (FP = 1) preferably for fully framed glass modules; version without lateral guide (FP = 0) preferably for unprocessed glass modules with rough edges Suitable for use in cleanroom environments up to cleanroom class 6 in accordance with ISO 14644-1
