DIVERTER DI 5/H
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Diverters TS 5 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842998528 be shipped?
3842998528 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842998528 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842998528 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842998528, subject to availability and destination.

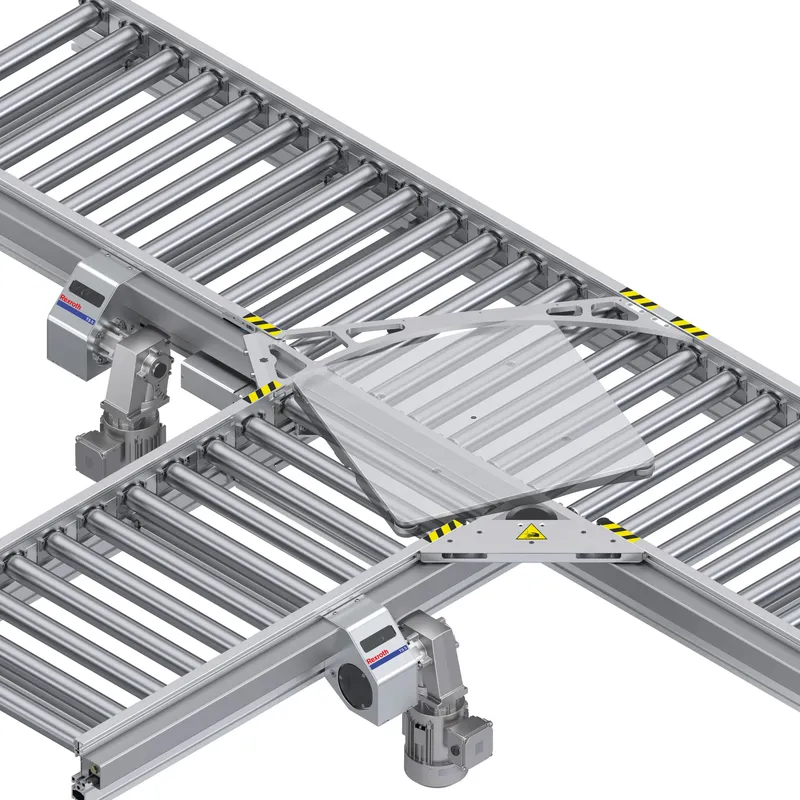

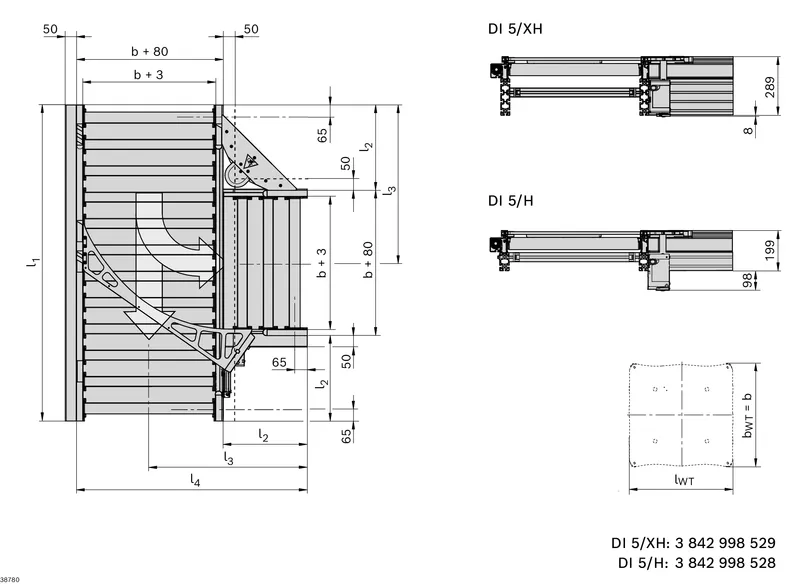

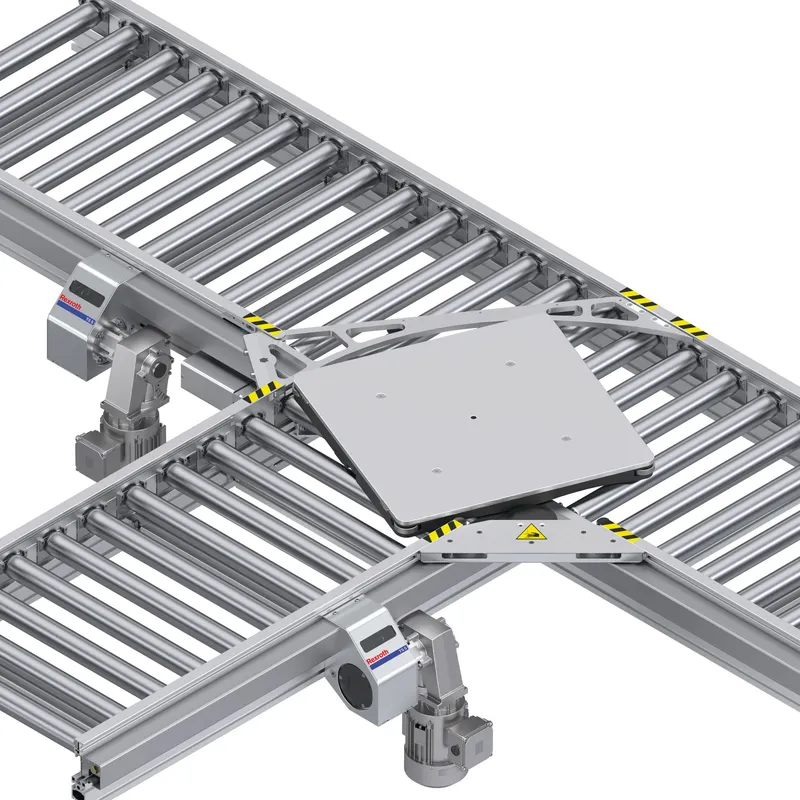

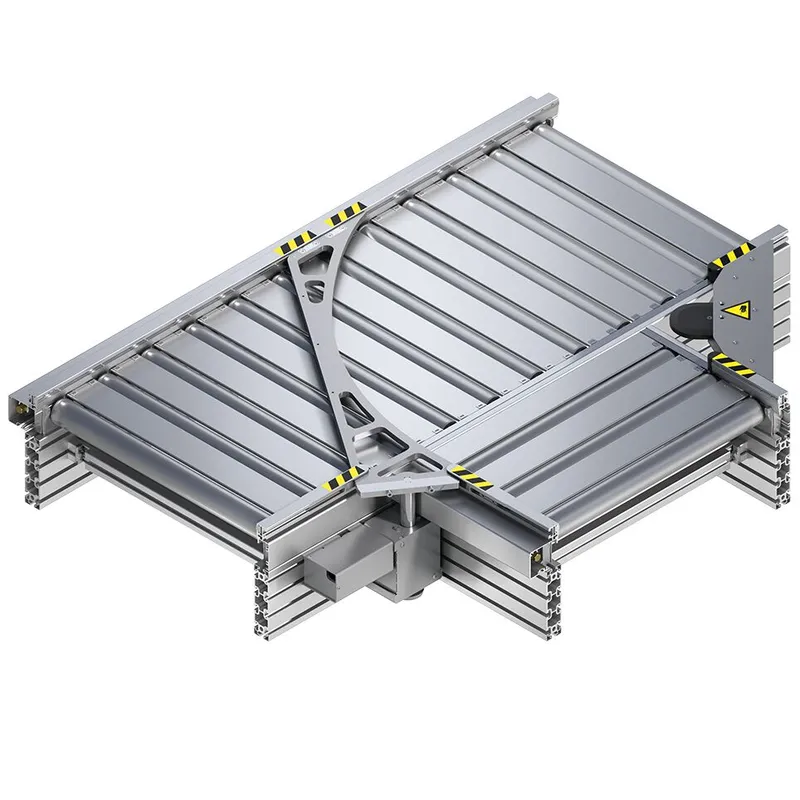

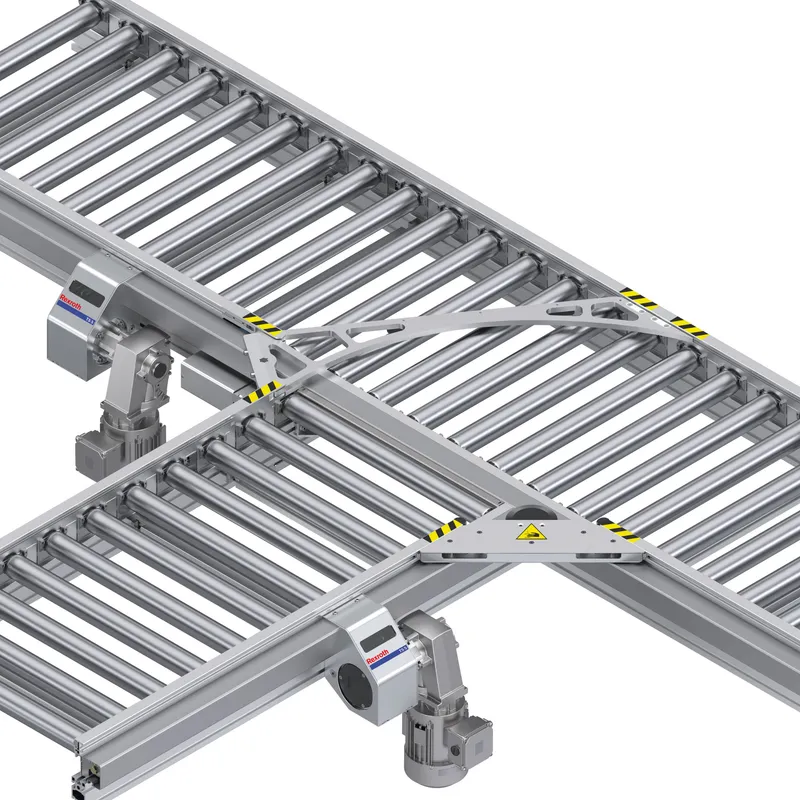

DI 5/H diverter The diverter is a ready-for-operation module for branching transport of workpiece pallets The king shaft installation for the main or secondary section can be installed on either side The diverter is controlled as an active element via a pneumatic cylinder (p = 5 - 6 bar) <b>Note:</b> The diverter is not suitable for accumulation operation. For permissible loads, see table (under order details). Reversible operation possible Accumulation operation not permitted Support profile made of anodized aluminum Lateral guide profile made of steel, polymer, or aluminum in an anodized aluminum support Driven via king shaft with bevel gears made of sintered metal Roller spacing p = 130 Full rollers m<sub>G</sub> Up to 300 kg (at v = 9 m/min) Pneumatic push-in fitting: 6 mm
