Bosch Rexroth 3842560151
TRANSPORT VEHICLE ACTIVE SHUTTLE AMR
- MPN
- 3842560151
- Category
- ACTIVE Shuttle
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

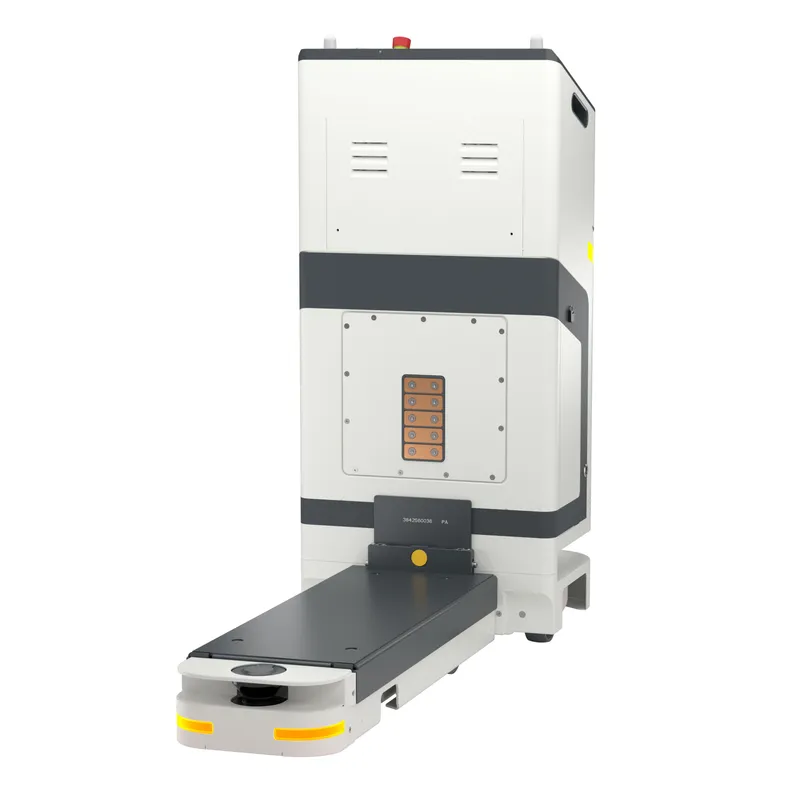

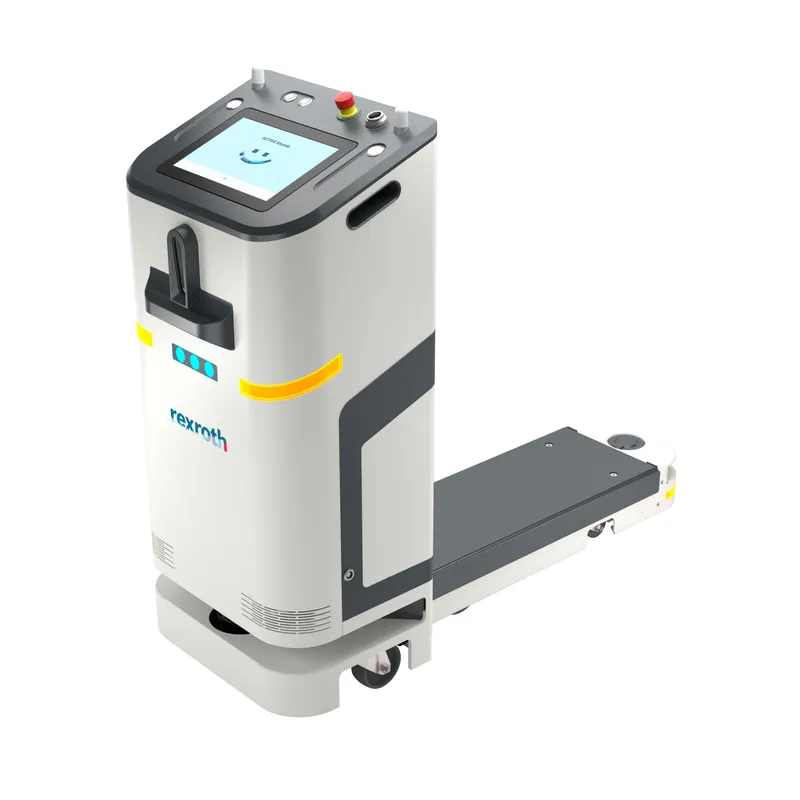

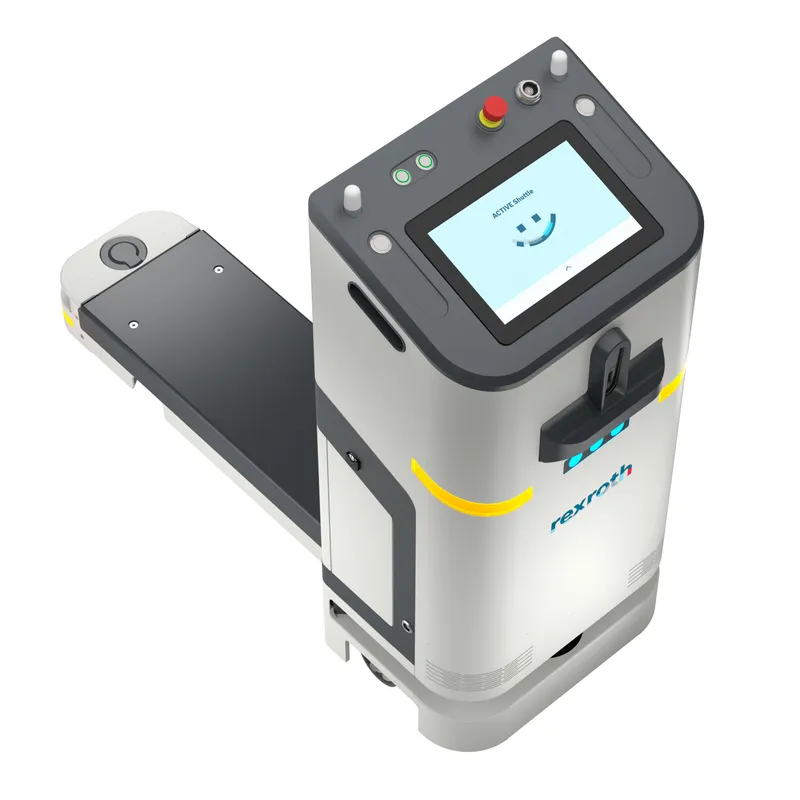

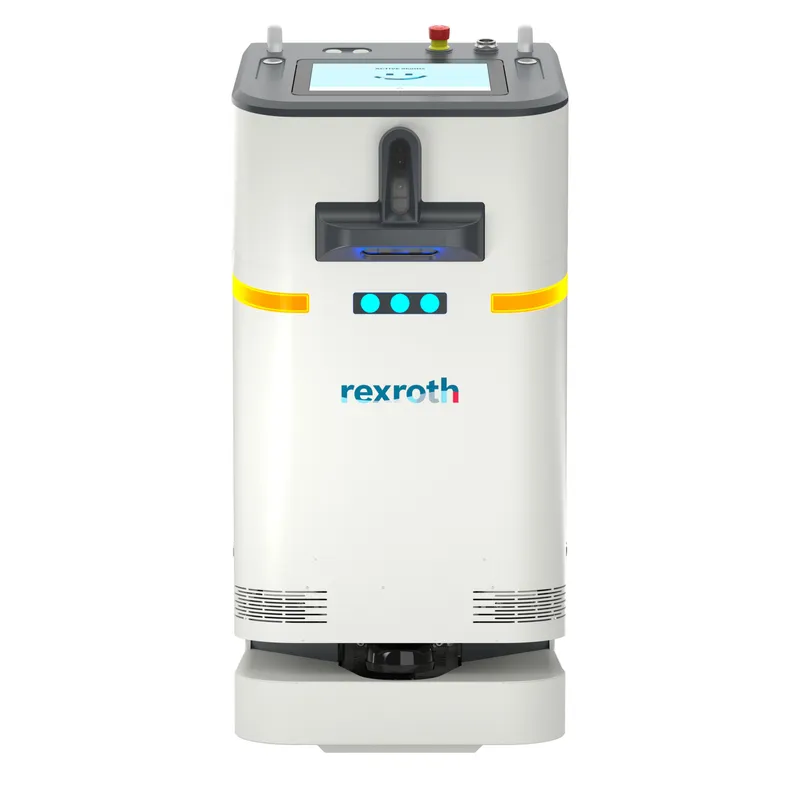

What is the Bosch Rexroth 3842560151?
The autonomous transport system ACTIVE Shuttle is already making entry into the factory of the future: It can be put in place quickly without changing your existing factory infrastructure. It is also intuitive, fully connected and, with safety laser scanners plus 3D obstacle detection, safe for use around people! ACTIVE Shuttle automates and standardizes your in-house material and goods flow. In the future, transport your dollies that are loaded with small load carriers (SLC) in a highly flexible and secure manner. With automated loading and unloading, manual handling tasks will now be a thing of the past! The open VDA 5050 interface also enables integration in third-party systems. This way, for example, ACTIVE Shuttle can receive commands from control systems, fleet managers, etc. and respond via its status.
Automated transport of dollies (600x400mm)
Comprehensive safety concept designed for continuous 24/7 mixed operation with people and machines
Increased safety through camera-based 3D obstacle detection
Touchscreen display
Thanks to the robust laser navigation system, adapting the factory infrastructure is not required
Transports payloads up to 260 kg
Fully automated loading and unloading with the integrated lifting platform
Navigate safely around obstacles
Highest safety thanks to lithium-ion battery with Performance Level C
Specifications
Specifications
| Conformity | CE |
| ESD | Yes |
| Type of battery | Lithium-ion battery with PL c |
| Conduction resistance [RA] | 1x 10⁴ Ω ≤ Rv ≤ 1x 10⁹ Ω |
| Ambient temperature [T] | +5 ... +40 °C |
| Charging time | approx. 80 min. (20% to 80%) |
| Dolly detection | Inductive safety sensor |
| Encryption | 64/128 bit WEP, WPA, WPA2 Personal, WPA2 Enterprise |
| 3D obstacle detection | 2 stereo cameras |
| Gradients | 2.5% (forward drive) |
| Humidity | 5 ... 85%, non-condensing |
| Max. joint width of industrial flooring [mm] | 15 |
| Max. threshold height of industrial flooring [mm] | 6 |
| Localization and map creation | SLAM algorithm based on laser and odometry data |
| Navigation technology | Laser navigation by natural landmarks |
| Number of navigation sensors | 1x front safety laser scanner |
| Number of safety laser scanners | 1x front, 1x rear (safety laser scanner PLd) |
| Positioning accuracy | < 100 mm regular |
| Speed vmax forward [m/s] | 1 |
| Wi-Fi | IEEE 802.11.ac/a/b/g/n |
| Notice | Certificates: EAP-PEAP, -TLS, -TTLS, -LEAP |
| Weight [kg] | 88 |
3842560151: frequently asked questions
When can 3842560151 be shipped?
3842560151 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842560151 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842560151 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842560151, subject to availability and destination.
