LIFT MODULE F1000-LIFT350MM

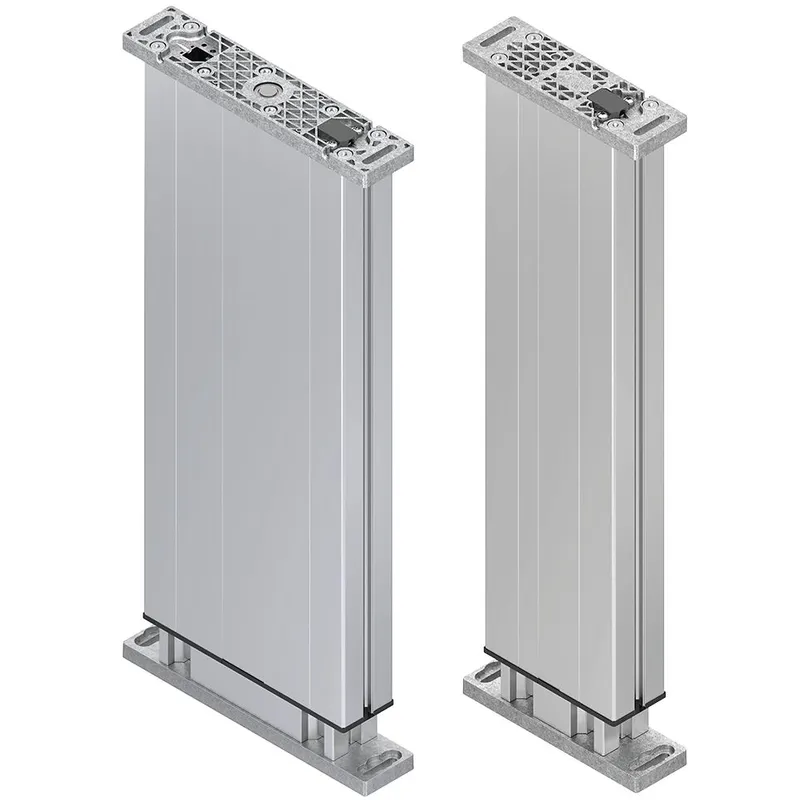

Lifting module F1000-LIFT350MM Three lifting modules with different maximum lifting and pressure forces as well as lifting velocities for the continuous height adjustment of workplaces even under high loads. Three lifting lengths per variant Attachment by means of mounting plates at the face sides or using the integrated 10 mm slot Incl. Connection cable; cable length: ~2m Cable possible on the left or right side Diagonal cover cap prevents crushing risk All lifting modules are electrostatic discharge-enabled Mounting plates are connected in a conductive manner Attachment bracket set suitable for F1000, F1600 or F3200 lifting modules for lateral profile attachment (grid dimension 45mm) Notice: According to DIN EN 60204-1 Safety of machinery - Electrical equipment of machines - Part 1: General requirements - 15.1 Sockets for accessories, the following applies: If the machinery or its associated equipment is equipped with outlets intended for accessories (e.g. hand-held power-operated tools, test equipment), the following shall apply:[...]- circuits supplying outlets with a rated current not exceeding 20 A shall be additionally protected by a residual current device (RCD) with a rated differential current of ≤ 30 mA.
