Bosch Rexroth 3842560099

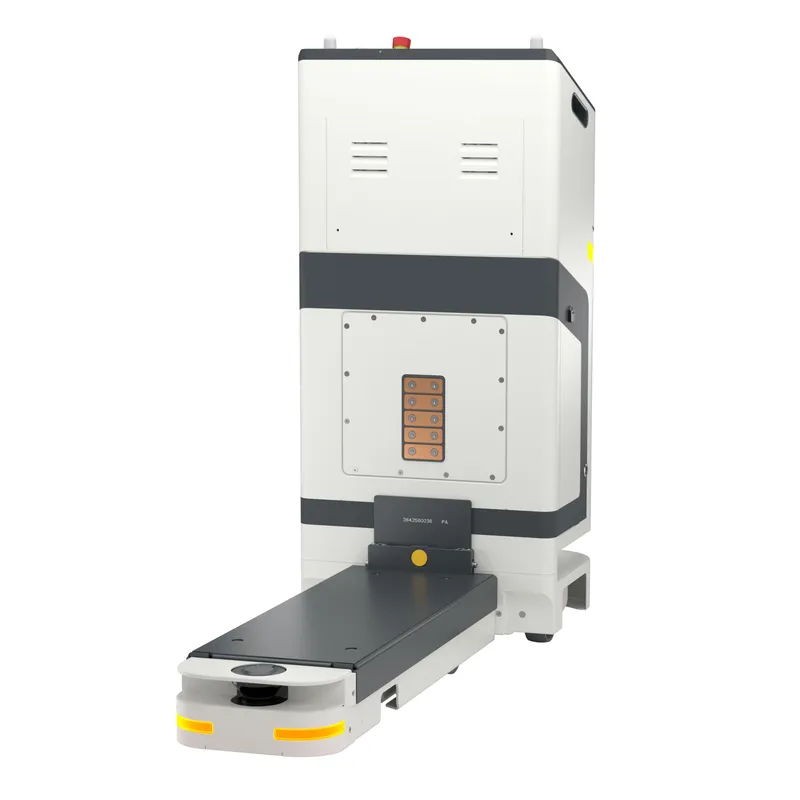

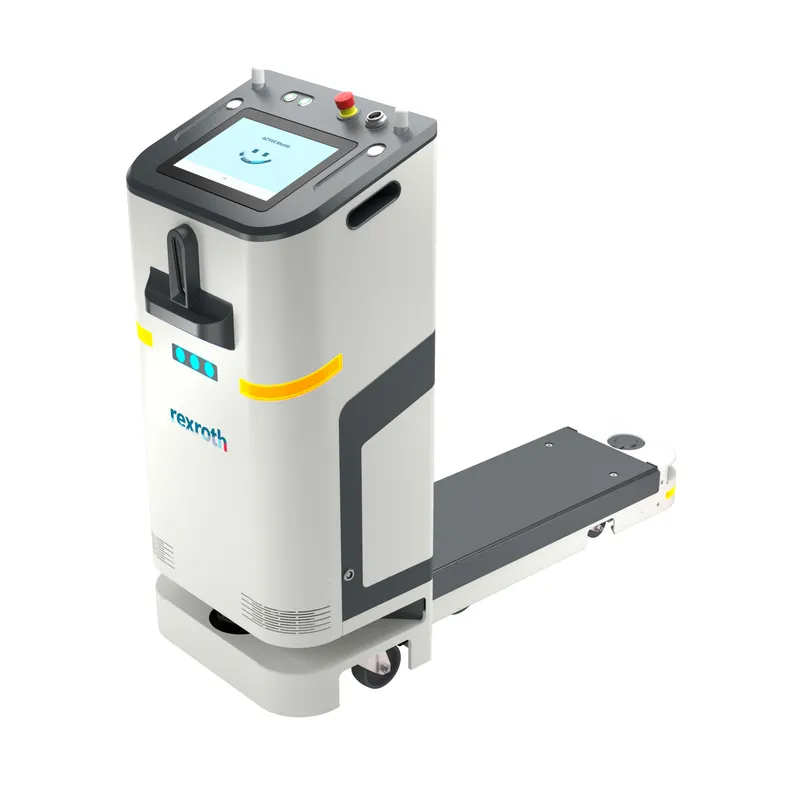

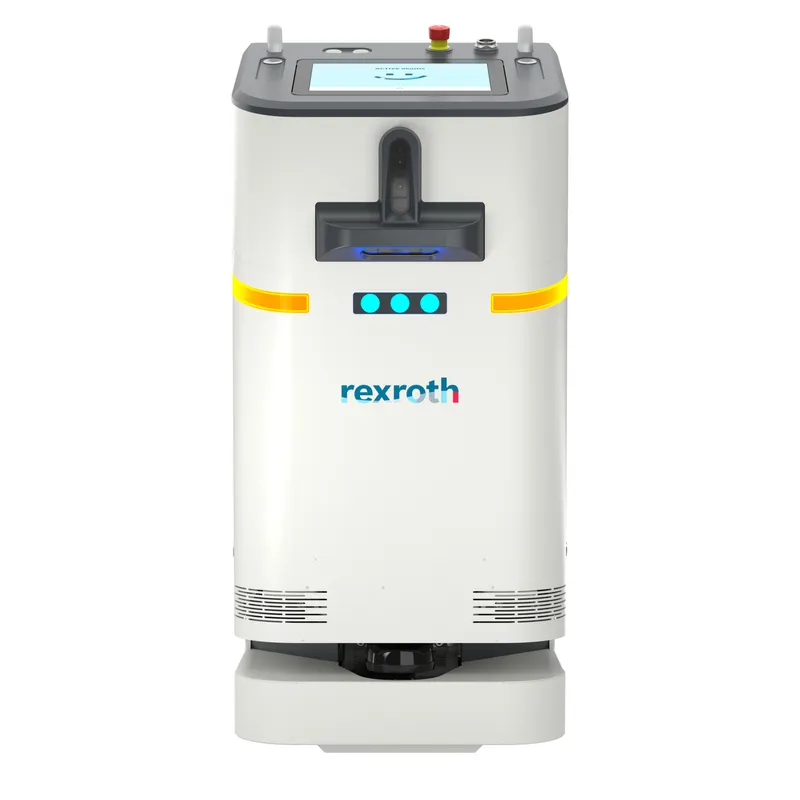

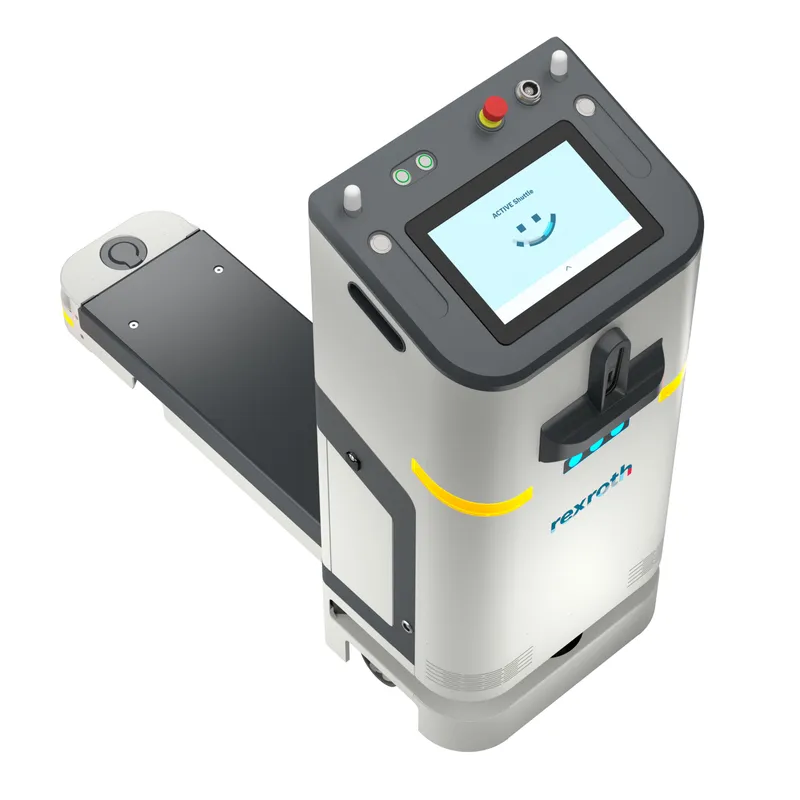

TRANSPORT VEHICLE ACTIVE SHUTTLE 2.1
- MPN
- 3842560099
- Category
- ACTIVE Shuttle
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Bosch Rexroth 3842560099?
The autonomous transport system ACTIVE Shuttle is already making entry into the factory of the future: It can be put in place quickly without changing your existing factory infrastructure. It is also intuitive, fully connected and, with safety laser scanners plus 3D obstacle detection, safe for use around people! ACTIVE Shuttle automates and standardizes your in-house material and goods flow. In the future, transport your dollies that are loaded with small load carriers (SLC) in a highly flexible and secure manner. ACTIVE Shuttle implements many transport concepts, from cyclical to consumption-based material supply systems. With automated loading and unloading, manual handling tasks will now be a thing of the past!
Automated transport of dollies (600x400mm)
Comprehensive safety concept designed for continuous 24/7 mixed operation with people and machines
Increased safety through camera-based 3D obstacle detection
Touchscreen display
Thanks to the robust laser navigation system, adapting the factory infrastructure is not required
Transports payloads up to 260 kg
Fully automated loading and unloading with the integrated lifting platform
Navigate safely around obstacles
Highest safety thanks to lithium-ion battery with Performance Level C
Specifications
Specifications
| Conformity | CE |
| ESD | Yes |
| Type of battery | Lithium-ion battery with PL c |
| Charging time | approx. 80 min. (20% to 80%) |
| Dolly detection | Inductive safety sensor |
| Encryption | 64/128 bit WEP, WPA, WPA2 Personal, WPA2 Enterprise |
| 3D obstacle detection | 2 stereo cameras |
| Gradients | 2.5% (forward drive) |
| Humidity | 5 ... 85%, non-condensing |
| Max. joint width of industrial flooring [mm] | 15 |
| Max. threshold height of industrial flooring [mm] | 6 |
| Localization and map creation | SLAM algorithm based on laser and odometry data |
| Navigation technology | Laser navigation by natural landmarks |
| Number of navigation sensors | 1x front safety laser scanner |
| Number of safety laser scanners | 1x front, 1x rear (safety laser scanner PLd) |
| Positioning accuracy | < 100 mm regular |
| Speed vmax forward [m/s] | 1 |
| Wi-Fi | IEEE 802.11.ac/a/b/g/n |
| Notice | Certificates: EAP-PEAP, -TLS, -TTLS, -LEAP |
| Conduction resistance [RA] | 1x 10⁴ Ω ≤ Rv ≤ 1x 10⁹ Ω |
| Ambient temperature [T] | +5 ... +40 °C |
| Weight [kg] | 88 |
