ABB

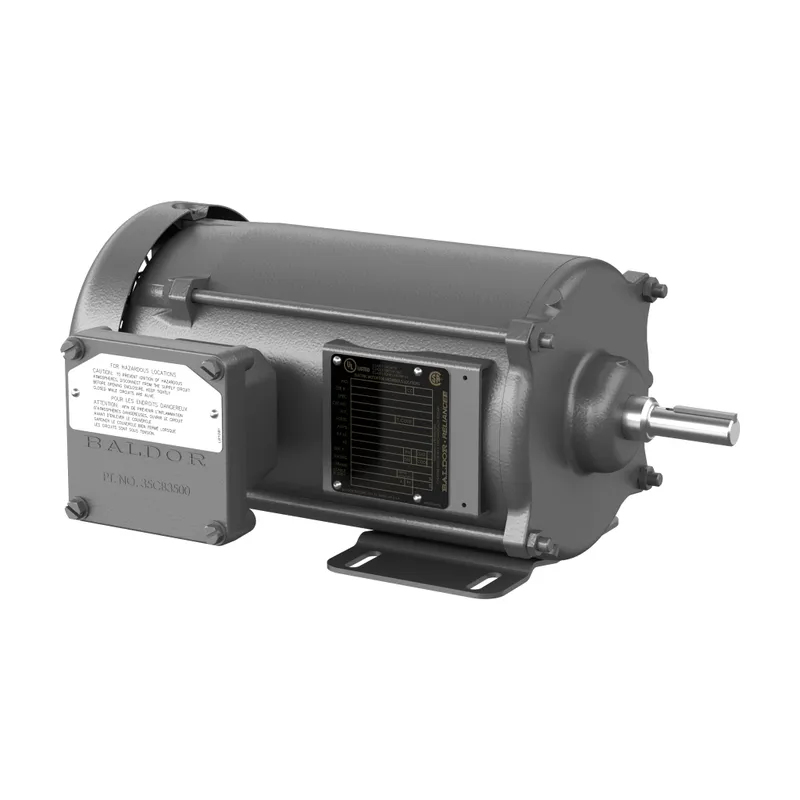

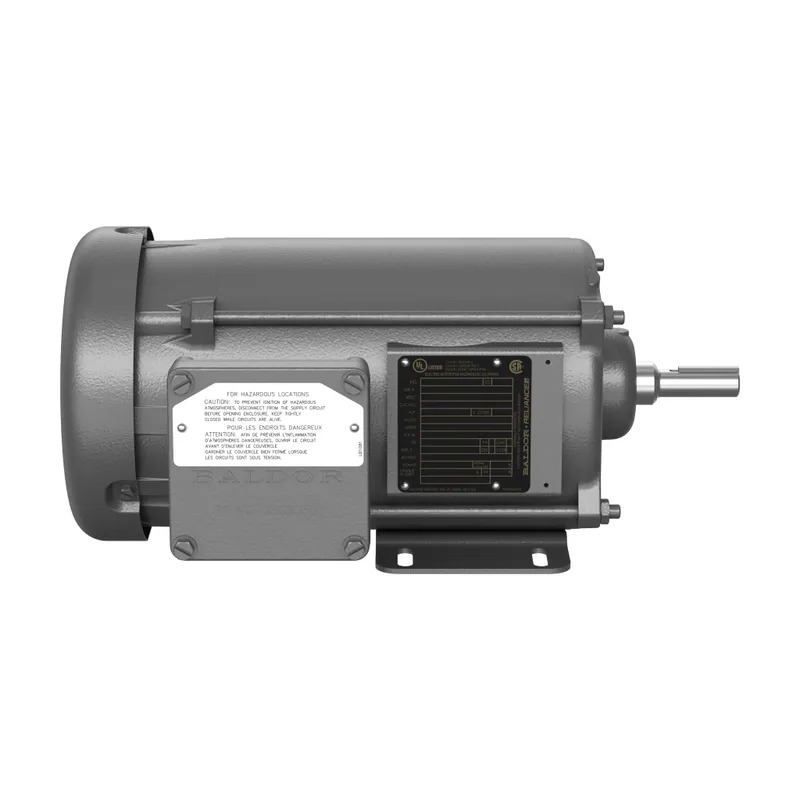

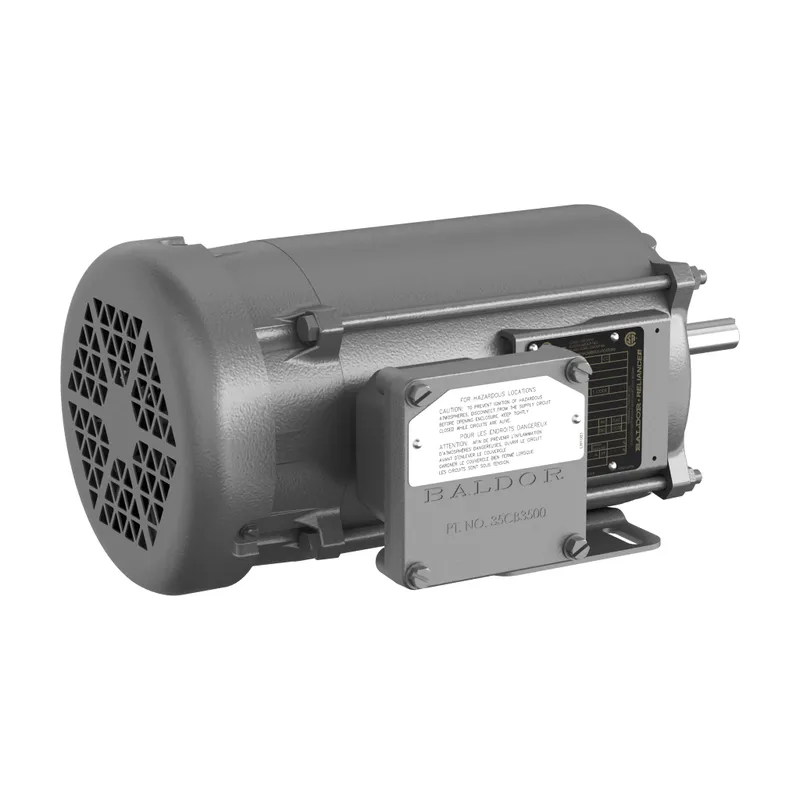

ABB XL05122A

1HP,3450RPM,1PH,60HZ,56,3524L,XPFC

MPN: XL05122A
Category: XP general purpose

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB XL05122A?

Explosion Proof General Purpos 1 Hp 115 V (XL05122A)

Specifications

Ordering

Catalog Number	XL05122A
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt
Insulation Class	B
NEMA Design Code	N
Number of Phases	1-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	81 %
Rated Efficiency	66 %
Service Factor	1.00
Temperature Class	T4
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	3600 r/min
Output Power	1 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group D, Class II, Group F & G G
Frame Material	Steel
Motor Frame Size	56
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	13.123 in
Product Net Weight	50 lb
Product Net Width	13.75 in
Dimension Diagram	35LYE353

Certificates and Declarations

Certification Agency	CSA, UL
ETIM 7	EC001851 - Electric motor
