Available on request
0.75HP,1750RPM,1PH,60HZ,56,3528L,XP
MPN: XL050742A · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | XP general purpose |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can XL050742A be shipped?
XL050742A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up XL050742A in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for XL050742A and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for XL050742A, subject to availability and destination.
Explosion Proof General Purpos 0.750.000 Hp 115 V (XL050742A)
Specifications
Ordering
| Catalog Number | XL050742A |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85013100 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | Not Regulated / Exempt |
| Insulation Class | B |
| NEMA Design Code | N |
| Number of Phases | 1-phase |
| Number of Poles | 4P |
| Number of Speeds | Single Speed |
| Power Factor | 68 % |
| Rated Efficiency | 70 % |
| Service Factor | 1.00 |
| Temperature Class | T4 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 1800 r/min |
| Output Power | 0.750.000 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | TEFC |
| Explosion Proof Group Class | Class I, Group D, Class II, Group F & G G |
| Frame Material | Steel |
| Motor Frame Size | 56 |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 13.123 in |
| Product Net Weight | 53 lb |
| Product Net Width | 13.75 in |
| Dimension Diagram | 35LYE353 |
Certificates and Declarations
| Certification Agency | CSA, UL |
| ETIM 7 | EC001851 - Electric motor |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More ABB parts

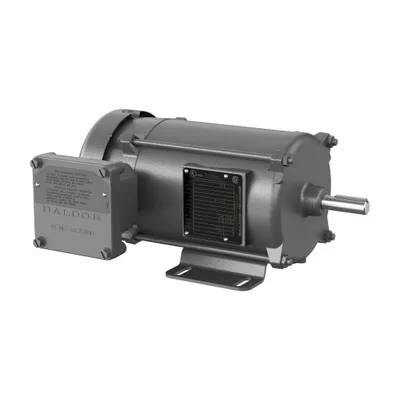

Available on request0.5HP,3450RPM,1PH,60HZ,56,3420L,XPFMPN: XL050522A · ABB
Price on request
Request a quote
Available on request.5HP,1725RPM,1PH,60HZ,56,3424L,XPFCMPN: XL050542A · ABB
Price on request
Request a quote

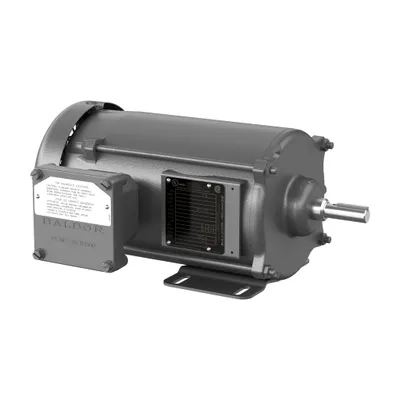

Available on request.5HP,1140RPM,1PH,60HZ,56,3528L,XPFCMPN: XL050562A · ABB
