Home / ABB / XP general purpose / ABB XL050745A

ABB

ABB XL050745A

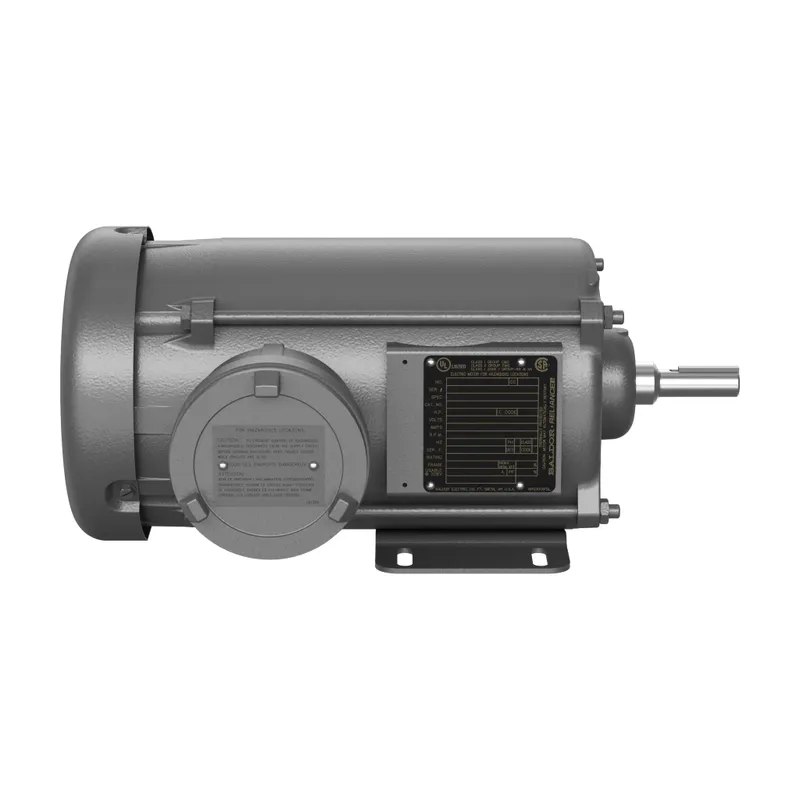

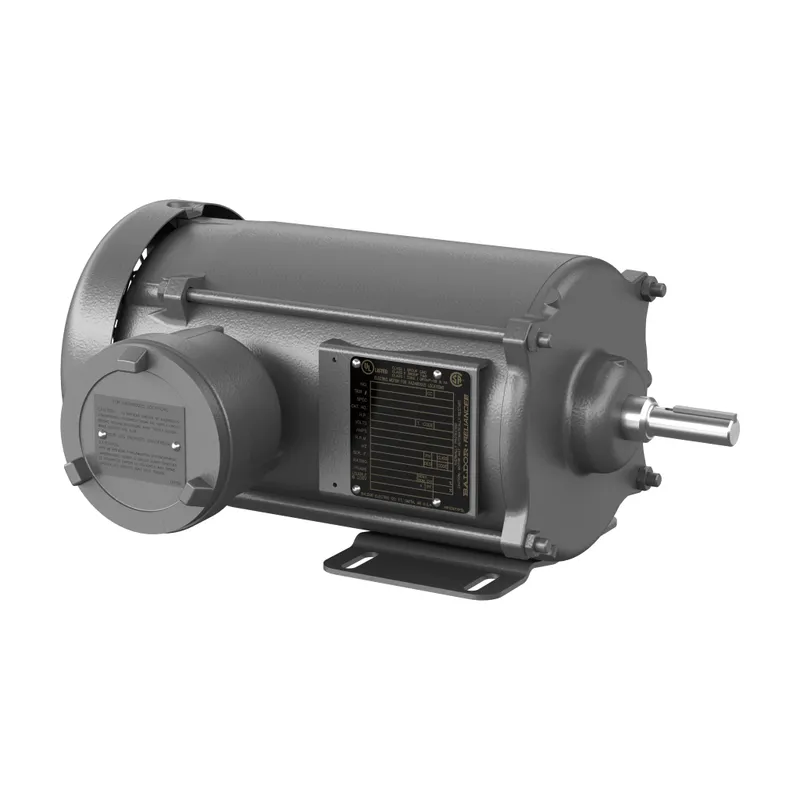

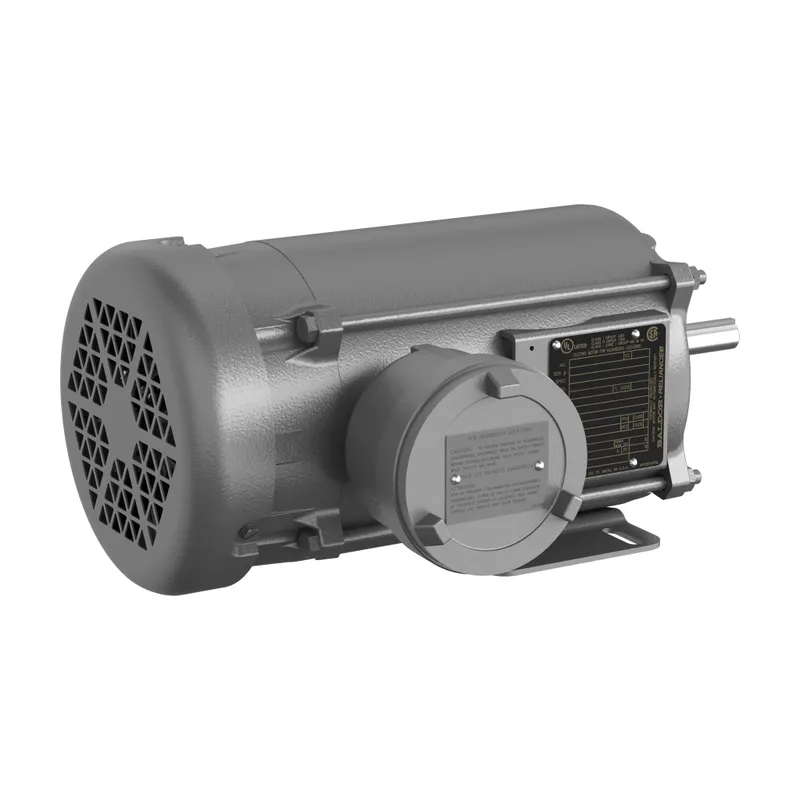

0.75HP,1750RPM,1PH,60HZ,56,3528L,XP

MPN: XL050745A
Category: XP general purpose

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB XL050745A?

Explosion Proof General Purpos 0.750.000 Hp 115 V (XL050745A)

Specifications

Ordering

Catalog Number	XL050745A
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85013100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt
Insulation Class	B
NEMA Design Code	N
Number of Phases	1-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	68 %
Rated Efficiency	70 %
Service Factor	1.00
Temperature Class	T4
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	0.750.000 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	XPFC
Explosion Proof Group Class	Class I, Group C & D, Class II, Group F & G G
Frame Material	Steel
Motor Frame Size	56
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	15.125 in
Product Net Weight	53 lb
Product Net Width	16.125 in
Dimension Diagram	35LYU585

Certificates and Declarations

Certification Agency	CSA, UL
ETIM 7	EC001851 - Electric motor
