CompactFlash cards Parts

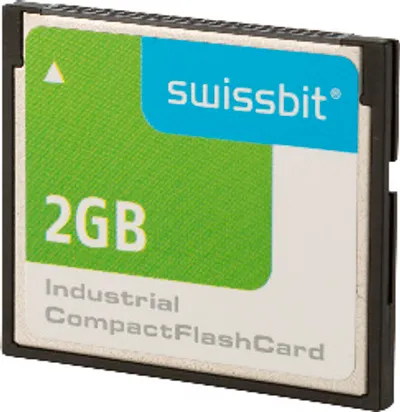

Available on requestB&R 5CFCRD.2048-06 – 2 GBSLC flashMPN: 5CFCRD.2048-06 · B&R
Price on request
Request a quote
Compare CompactFlash cards
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Continuous writing – Typical | Capacity | MTBF | Wear leveling | Software – B&R Embedded OS Installer |
|---|---|---|---|---|---|

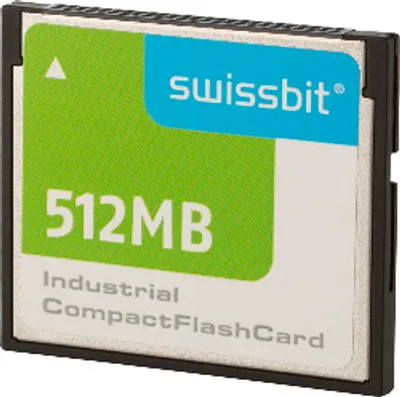

| 0CFCRD.0512E.02 | 19.9 MB/s | 512 MB | >3,000,000 hours (at 25°C) | Global, dynamic and static | — |

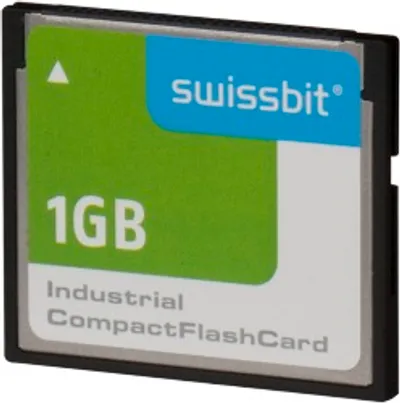

| 0CFCRD.1024E.02 | 29 MB/s | 1024 MB | >3,000,000 hours (at 25°C) | Global, dynamic and static | — |
| 0CFCRD.2048E.02 | 28.6 MB/s | 2048 MB | >3,000,000 hours (at 25°C) | Global, dynamic and static | — |

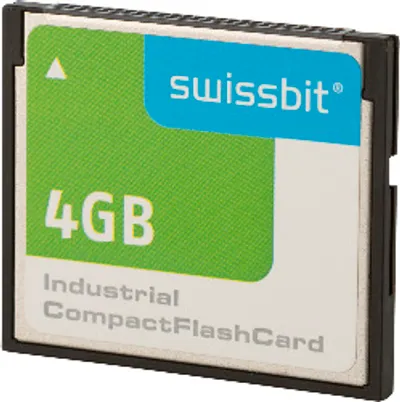

| 0CFCRD.4096E.02 | 37.5 MB/s | 4096 MB | >3,000,000 hours (at 25°C) | Global, dynamic and static | — |

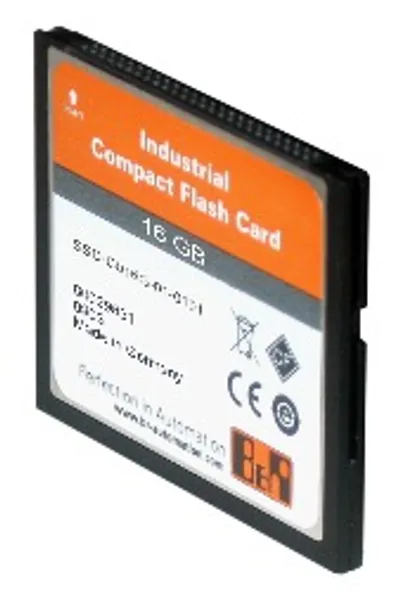

| 5CFCRD.016G-04 | 18 MB/s; (120X) | 16 GB | >3,000,000 hours (at 25°C) | Static | ≥V3.20 |
| 5CFCRD.0512-04 | 17 MB/s; (110X) | 512 MB | >3,000,000 hours (at 25°C) | Static | ≥V3.10 |
| 5CFCRD.2048-06 | 31 MB/s | 2 GB | >3,000,000 hours (at 25°C) | Static | ≥V3.10 |
| 5CFCRD.8192-04 | 15 MB/s; (100X) | 8 GB | >3,000,000 hours (at 25°C) | Static | ≥V3.10 |
| 0CFCRD.016GE.02 | 43.6 MB/s | 16 GB | >3,000,000 hours (at 25°C) | Global, dynamic and static | — |
| 0CFCRD.8192E.02 | 39.0 MB/s | 8192 MB | >3,000,000 hours (at 25°C) | Global, dynamic and static | — |
| 5CFCRD.0064-03 | 6 MB/s | 64 MB | >4,000,000 hours (at 25°C) | Static | ≥V2.21 |
| 5CFCRD.0128-03 | 6 MB/s | 128 MB | >4,000,000 hours (at 25°C) | Static | ≥V2.21 |
| 5CFCRD.0256-03 | 6 MB/s | 256 MB | >4,000,000 hours (at 25°C) | Static | ≥V2.21 |
| 5CFCRD.0512-03 | 6 MB/s | 512 MB | >4,000,000 hours (at 25°C) | Static | ≥V2.21 |
| 5CFCRD.1024-03 | 6 MB/s | 1 GB | >4,000,000 hours (at 25°C) | Static | ≥V2.21 |
| 5CFCRD.1024-04 | 17 MB/s; (110X) | 1 GB | >3,000,000 hours (at 25°C) | Static | ≥V3.10 |
| 5CFCRD.2048-03 | 6 MB/s | 2 GB | >4,000,000 hours (at 25°C) | Static | ≥V2.21 |
| 5CFCRD.2048-04 | 17 MB/s; (110X) | 2 GB | >3,000,000 hours (at 25°C) | Static | ≥V3.10 |
| 5CFCRD.4096-03 | 6 MB/s | 4 GB | >4,000,000 hours (at 25°C) | Static | ≥V2.21 |
| 5CFCRD.4096-04 | 16 MB/s; (106X) | 4 GB | >3,000,000 hours (at 25°C) | Static | ≥V3.10 |
| 5CFCRD.8192-03 | 6 MB/s | 8 GB | >4,000,000 hours (at 25°C) | Static | ≥V2.21 |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Lifetime monitoring | Yes |
| Servicing | None |
| SLC flash memory | Yes |
| Error-correcting code (ECC) | Yes |
| Dimensions – Width | 42.8 ±0.10 mm |
