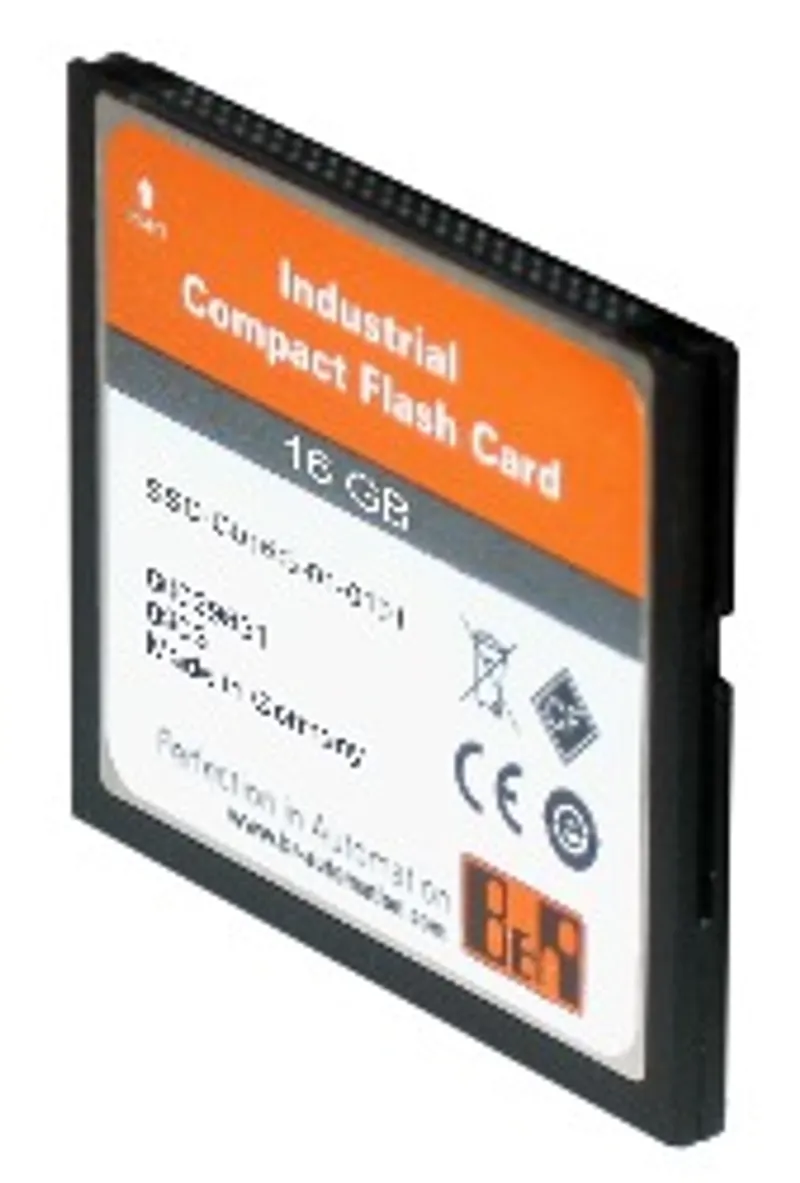

B&R 5CFCRD.016G-04

Name: B&R 5CFCRD.016G-04
Brand: B&R
SKU: 5CFCRD.016G-04

MPN: 5CFCRD.016G-04 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	CompactFlash cards
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	10 kg

Shipping & availability

When can 5CFCRD.016G-04 be shipped?

5CFCRD.016G-04 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5CFCRD.016G-04 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5CFCRD.016G-04 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5CFCRD.016G-04, subject to availability and destination.

CompactFlash 16 GB B&R (SLC)

Specifications

General information

Continuous reading – Typical	36 MB/s; (240X) " data-placement="top" data-html="true" data-container="body" data-content="Speed specifications with 1X = 150 kB/s. All specifications refer to Samsung flash chips, CompactFlash card in UDMA mode 4, cycle time 30 ns in True IDE mode with sequential write/read test.">
Continuous reading – Maximum	37 MB/s; (247X) " data-placement="top" data-html="true" data-container="body" data-content="Speed specifications with 1X = 150 kB/s. All specifications refer to Samsung flash chips, CompactFlash card in UDMA mode 4, cycle time 30 ns in True IDE mode with sequential write/read test.">
Continuous writing – Typical	18 MB/s; (120X)
Continuous writing – Maximum	19 MB/s; (126X)
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – DNV	Temperature: A (0 to 45°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck)
Capacity	16 GB
Data retention " data-placement="top" data-html="true" data-container="body" data-content="Per JEDEC (JESD47), EOL conditions are not permitted to be reached before 18 months. A higher average daily write workload reduces the expected service life and data retention of the data storage medium.">	10 years
Data reliability	<1 unrecoverable error per 10 14 bits read
Lifetime monitoring	Yes
MTBF	>3,000,000 hours (at 25°C)
Servicing	None
Supported operating modes	PIO mode 0-6, Multiword DMA mode 0-4, Ultra DMA Mode 0-4

Endurance " data-placement="top" data-html="true" data-container="body" data-content="Per JEDEC (JESD47), EOL conditions are not permitted to be reached before 18 months. A higher average daily write workload reduces the expected service life and data retention of the data storage medium.">

Guaranteed data volume – Guaranteed " data-placement="top" data-html="true" data-container="body" data-content="Endurance of B&R CFs (with linear written block size ≥ 128 kB).">	1600 TB
Guaranteed data volume – Results for 5 years " data-placement="top" data-html="true" data-container="body" data-content="Endurance of B&R CFs (with linear written block size ≥ 128 kB).">	876.72 GB/day
Erase/Write cycles – Typical " data-placement="top" data-html="true" data-container="body" data-content="Depends on the average file size.">	2,000,000
Erase/Write cycles – Guaranteed	100,000
SLC flash memory	Yes
Wear leveling	Static
Error-correcting code (ECC)	Yes
S.M.A.R.T. support	No

Support

Operating systems – Windows 7 32-bit	Yes
Operating systems – Windows 7 64-bit	No
Operating systems – Windows Embedded Standard 7 32-bit	Yes
Operating systems – Windows Embedded Standard 7 64-bit	Yes
Operating systems – Windows XP Professional	Yes
Operating systems – Windows XP Embedded	Yes
Operating systems – Windows Embedded Standard 2009	Yes
Operating systems – Windows CE 6.0	Yes " data-placement="top" data-html="true" data-container="body" data-content="Not supported by the B&R Embedded OS Installer.">
Operating systems – Windows CE 5.0	No
Software – PVI Transfer	≥V3.6.8.40 (part of the PVI Development installer ≥ V3.0.0.3020)
Software – B&R Embedded OS Installer	≥V3.20
Hardware	PP300/400, PP500, PPC300, PPC700, PPC725, PPC800, APC620, APC810, APC820

Ambient conditions

Temperature – Operation	0 to 70°C
Temperature – Storage	-65 to 150°C
Temperature – Transport	-65 to 150°C
Relative humidity – Operation	Max. 85% at 85°C
Relative humidity – Storage	Max. 85% at 85°C
Relative humidity – Transport	Max. 85% at 85°C
Vibration – Operation	20 g peak, 20 to 2000 Hz, 4 in each direction (JEDEC JESD22, method B103); 5.35 g RMS, 15 min. per level (IEC 68-2-6)
Vibration – Storage	20 g peak, 20 to 2000 Hz, 4 in each direction (JEDEC JESD22, method B103); 5.35 g RMS, 15 min. per level (IEC 68-2-6)
Vibration – Transport	20 g peak, 20 to 2000 Hz, 4 in each direction (JEDEC JESD22, method B103); 5.35 g RMS, 15 min. per level (IEC 68-2-6)
Shock – Operation	1500 g peak, 0.5 ms 5 times (JEDEC JESD22, method B110) ; 30 g, 11 ms 1 time (IEC 68-2-27)
Shock – Storage	1500 g peak, 0.5 ms 5 times (JEDEC JESD22, method B110) ; 30 g, 11 ms 1 time (IEC 68-2-27)
Shock – Transport	1500 g peak, 0.5 ms 5 times (JEDEC JESD22, method B110) ; 30 g, 11 ms 1 time (IEC 68-2-27)
Elevation – Operation	Max. 4,572 m
