Pepperl Fuchs WCS-EIG310
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Optical Linear Positioning Systems |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can WCS-EIG310 be shipped?
WCS-EIG310 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up WCS-EIG310 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for WCS-EIG310 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for WCS-EIG310, subject to availability and destination.

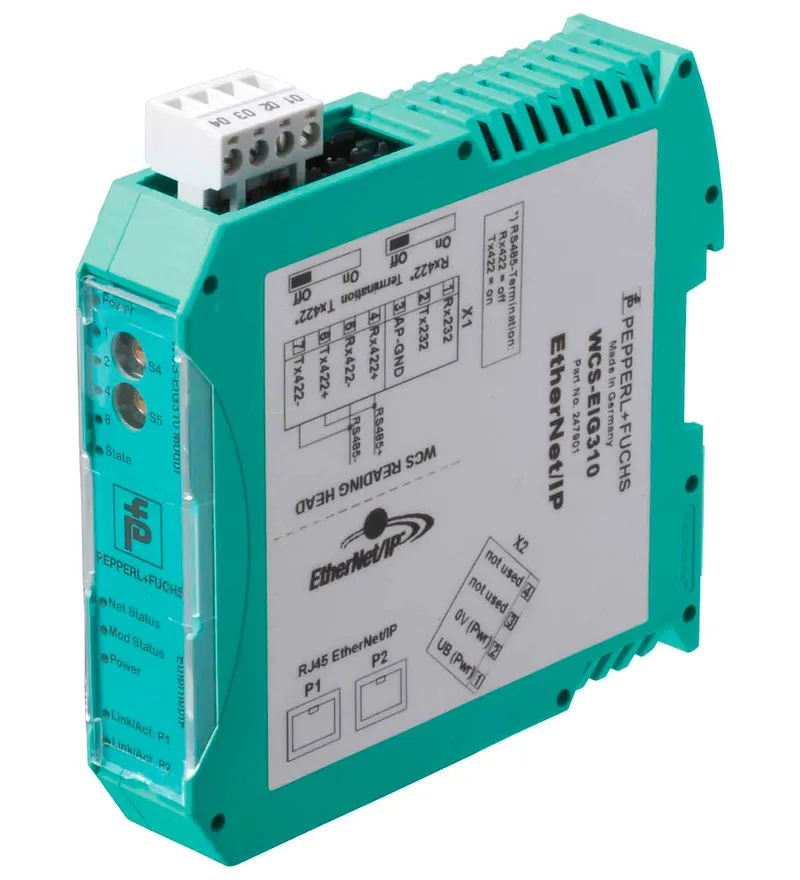

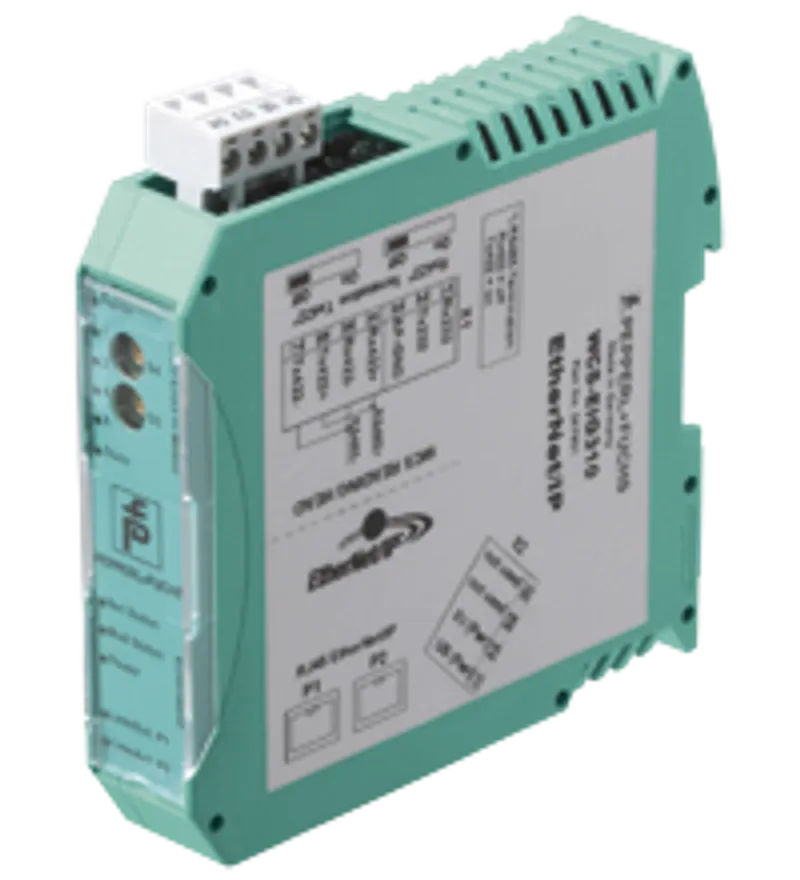

WCS interface module. WCS Ethernet interface module, Up to 4 read heads can be connected, DIN rail mounting, Integrated switch, EtherNet/IP. Installation: DIN rail mounting. MTTFd: 180 a. Mission Time (TM): 10 a. Diagnostic Coverage (DC): 0 %. Operating voltage: 10 ... 30 V DC. Power consumption: ≤ 3.6 W (without read heads). Connection of: control system. Interface type: Ethernet. Protocol: EtherNet/IP. Transfer rate: 10 MBit/s or 100 MBit/s. Data output format: binary code. Connection of: control system. Interface type: Ethernet. Protocol: EtherNet/IP. Transfer rate: 10 MBit/s or 100 MBit/s. Data output format: binary code. Connection of: WCS read heads. Connectable read heads: WCS...-LS121 , WCS...-LS221. Interface type: RS485. Protocol: half duplex. Transfer rate: 62.5 kBit/s. RS485 termination resistor: switchable. Refresh cycle of read head: 1 ms. Emitted interference: EN 55011, cl. A: 2007. Noise immunity: EN 61000-6-2:2005. CCC approval: CCC approval / marking not required for products rated ≤36 V. Operating temperature: -25 ... 85 °C (-13 ... 185 °F) , no moisture condensation. Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: ≤ 80 %. Connection type: Interface 1 & 2: RJ-45 socket, 8-pin Interface 3: terminal connection ≤ 2.5 mm2 Interface 4: Terminal connection, 2-pin. Degree of protection: IP20. Material: plastic. Installation position: any position. Mass: approx. 140 g. Dimensions: . Height111 mmWidth23 mmDepth115 mm: . Height: 111 mm. Width: 23 mm. Depth: 115 mm
Specifications
General specifications
| Installation | DIN rail mounting |
Functional safety related parameters
| MTTFd | 180 a |
| Mission Time (TM) | 10 a |
| Diagnostic Coverage (DC) | 0 % |
Electrical specifications
| Operating voltage | 10 ... 30 V DC |
| Power consumption | ≤ 3.6 W (without read heads) |
Interface 1
| Connection of | control system |
| Interface type | Ethernet |
| Protocol | EtherNet/IP |
| Transfer rate | 10 MBit/s or 100 MBit/s |
| Data output format | binary code |
Interface 2
| Connection of | control system |
| Interface type | Ethernet |
| Protocol | EtherNet/IP |
| Transfer rate | 10 MBit/s or 100 MBit/s |
| Data output format | binary code |
Interface 3

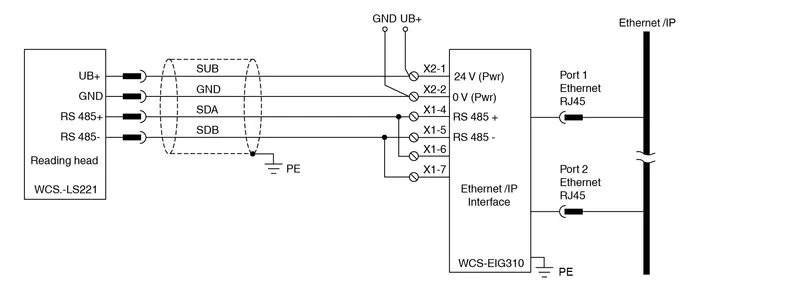

| Connection of | WCS read heads |
| Connectable read heads | WCS...-LS121 , WCS...-LS221 |
| Interface type | RS485 |
| Protocol | half duplex |
| Transfer rate | 62.5 kBit/s |
| RS485 termination resistor | switchable |
| Refresh cycle of read head | 1 ms |
Standard conformity
| Emitted interference | EN 55011, cl. A: 2007 |
| Noise immunity | EN 61000-6-2:2005 |
Approvals and certificates
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Operating temperature | -25 ... 85 °C (-13 ... 185 °F) , no moisture condensation |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | ≤ 80 % |
Mechanical specifications
| Connection type | Interface 1 & 2: RJ-45 socket, 8-pin Interface 3: terminal connection ≤ 2.5 mm2 Interface 4: Terminal connection, 2-pin |
| Degree of protection | IP20 |
| Material | plastic |
| Installation position | any position |
| Mass | approx. 140 g |

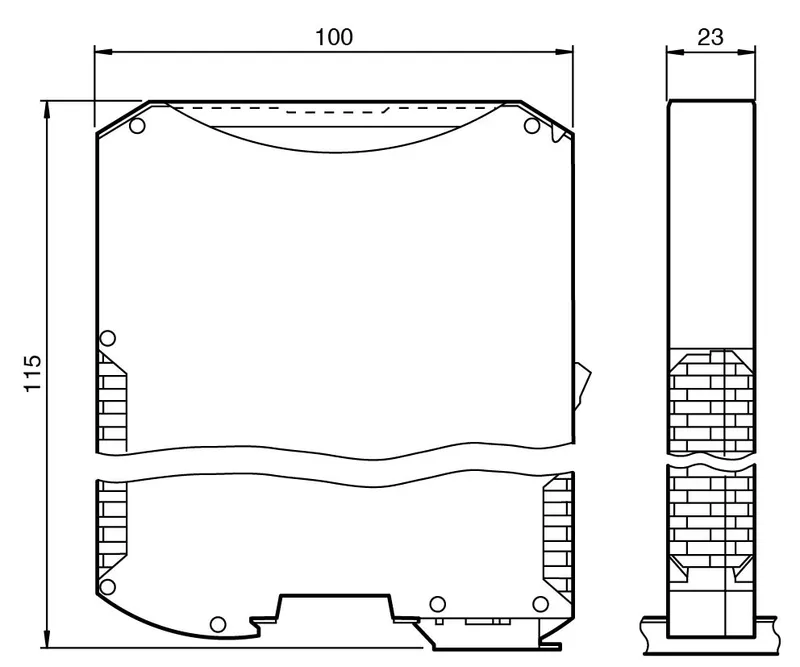

| Dimensions | |
| Height111 mmWidth23 mmDepth115 mm | |
| Height | 111 mm |
| Width | 23 mm |
| Depth | 115 mm |
