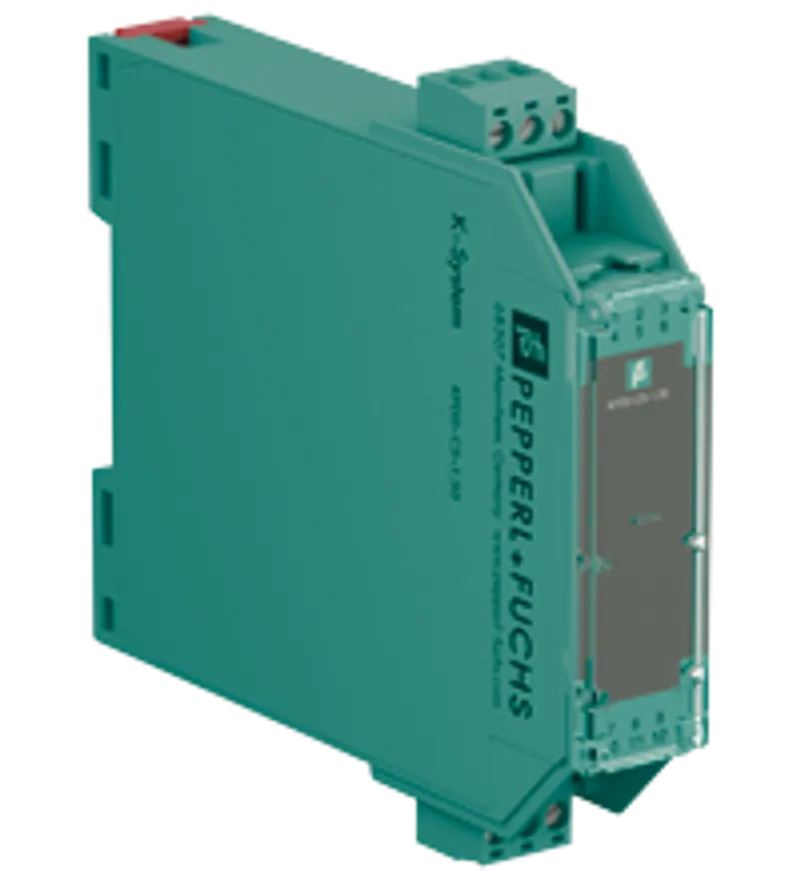

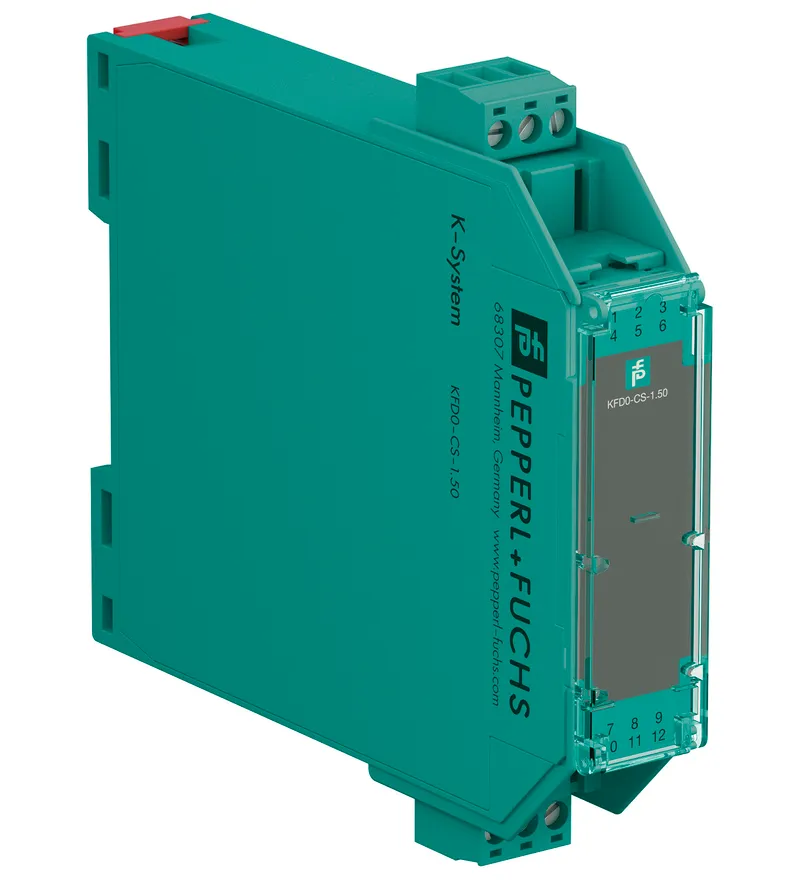

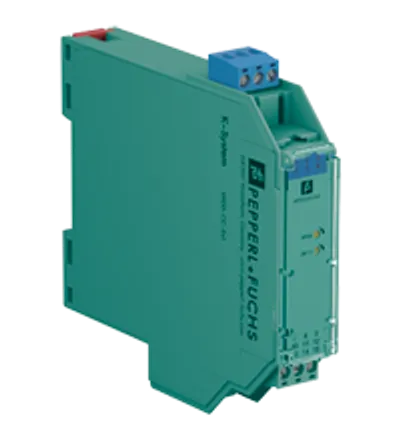

Pepperl Fuchs KFD0-CS-1.50
Repeater
- MPN
- KFD0-CS-1.50
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs KFD0-CS-1.50?
1-channel signal conditioner
24 V DC supply (loop powered)
Current input/output 4 mA ... 20 mA
transmitter power supply
Accuracy 0.1 %
Reverse polarity protection
Up to SIL 2 acc. to IEC/EN 61508
1-channel signal conditioner, 24 V DC supply (loop powered), Current input/output 4 mA ... 20 mA, transmitter power supply, Accuracy 0.1 %, Reverse polarity protection, Up to SIL 2 acc. to IEC/EN 61508, Housing width: 20 mm, Number of channels: 1-channel, Transfer direction: to the field / to the control system, Reverse polarity protection, Safety Integrity Level (SIL): SIL 2, Rated voltage: 10 ... 35 V DC , loop powered, Signal: 1 x 4 ... 20 mA, Signal: 1 x 4 ... 20 mA
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 294965 |
| Signal type | Analog input/analog output |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| Safety Integrity Level (SIL) | SIL 2 |
Supply
| Rated voltage | 10 ... 35 V DC , loop powered Ur |
| Power dissipation | 0.2 W |
Control circuit
| Connection | terminals 12-, 11+ |
| Voltage | 10 ... 35 V DC |
| Current | 4 ... 20 mA |
| Power dissipation | 26.1 V |
Field circuit
| Connection | terminals 1+, 2- |
| Voltage | ≥ 0.9 x Uin - (0.23 x current in mA) - 0.7 for 10 V ≥ 23 V - (0.23 x current in mA) for Uin > 26.1 V |
| Short-circuit current | max. 100 mA |
| Transfer current | max. 25 mA |
Transfer characteristics
| Accuracy | 0.1 % |
| Deviation: After calibration | Uin ≥ 5 V ± 20 µA/Uin ≤ 5 V ± 50 µA incl. calibration, linearity, hysteresis and output load fluctuations at the field side; at 20 °C (68 °F) |
| Deviation: Influence of ambient temperature | ≤ ± 2 µA/K at Uin ≤ 20 V; ≤ ± 5 µA/K at Uin > 20 V |
| Rise time | ≤ 5 ms at 4 ... 20 mA and Uin = input voltage < 26 V |
Galvanic isolation
| Input/Output | basic insulation according to IEC 62103, rated insulation voltage 300 Veff |
Indicators/settings
| Labeling | space for labeling at the front |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
Conformity
| Electromagnetic compatibility | NE 21:2012 EN 61326-3-2:2008 |
| Degree of protection | IEC 60529:2001 |
| Protection against electrical shock | EN 61010-1:2010 |
Ambient conditions
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) extended ambient temperature range up to 70 °C (158 °F), refer to manual for necessary mounting conditions |
Mechanical specifications
| Degree of protection | IP20 |
| Connection | screw terminals |
| Mass | approx. 100 g |
| Dimensions | 20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D) , housing type B1 |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
General information
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
