Wago
231-636/017-000PCB terminal block; 2.5 mm²; Pin spacing 5.08 mm; 6-pole; CAGE CLAMP®; clamping collar; orange
Feedthrough Components Parts
Wago
826-162Feedthrough terminal block; Conductor/conductor connection; Plate thickness: 1 … 4 mm; 4 mm²; Pin spacing 7 mm; 2-pole; CAGE CLAMP®; 4,00 mm²; gray
Wago
231-608/017-000PCB terminal block; 2.5 mm²; Pin spacing 5 mm; 8-pole; CAGE CLAMP®; clamping collar; gray
Wago
826-168Feedthrough terminal block; Conductor/conductor connection; Plate thickness: 1 … 4 mm; 4 mm²; Pin spacing 7 mm; 8-pole; CAGE CLAMP®; 4,00 mm²; gray
Wago
226-114Feedthrough terminal block; Conductor/solder/crimp quick disconnect terminal; Plate thickness: 2.5 mm; 4 mm²; Pin spacing 6 mm; 1-pole; CAGE CLAMP®; 4,00 mm²; gray
Wago
826-160/000-016Modular ground feedthrough center terminal block; Conductor/conductor connection; Plate thickness: 1 … 4 mm; 4 mm²; Pin spacing 7 mm; 1-pole; CAGE CLAMP®; 4,00 mm²; green-yellow
Wago
826-160/000-006Modular, panel feedthrough center terminal block; Conductor/conductor connection; Plate thickness: 1 … 4 mm; 4 mm²; Pin spacing 7 mm; 1-pole; CAGE CLAMP®; 4,00 mm²; blue
Wago
826-171Feedthrough terminal block; Conductor/conductor connection; Plate thickness: 1 … 4 mm; 4 mm²; Pin spacing 7 mm; 11-pole; CAGE CLAMP®; 4,00 mm²; gray
Wago
826-159Modular, panel feedthrough end terminal block; Conductor/conductor connection; Plate thickness: 1 … 4 mm; 4 mm²; Pin spacing 7 mm; 1-pole; CAGE CLAMP®; 4,00 mm²; gray
Wago
826-164Feedthrough terminal block; Conductor/conductor connection; Plate thickness: 1 … 4 mm; 4 mm²; Pin spacing 7 mm; 4-pole; CAGE CLAMP®; 4,00 mm²; gray
Wago
826-172Feedthrough terminal block; Conductor/conductor connection; Plate thickness: 1 … 4 mm; 4 mm²; Pin spacing 7 mm; 12-pole; CAGE CLAMP®; 4,00 mm²; gray
Wago
826-163Feedthrough terminal block; Conductor/conductor connection; Plate thickness: 1 … 4 mm; 4 mm²; Pin spacing 7 mm; 3-pole; CAGE CLAMP®; 4,00 mm²; gray
Wago
828-264/313-000Feedthrough terminal block; lever; Plate thickness: 3 mm; 16 mm²; Pin spacing 11.5 mm; 3-pole; CAGE CLAMP®; 16,00 mm²; gray
Wago
826-166Feedthrough terminal block; Conductor/conductor connection; Plate thickness: 1 … 4 mm; 4 mm²; Pin spacing 7 mm; 6-pole; CAGE CLAMP®; 4,00 mm²; gray
Wago
731-138/048-000Feedthrough terminal block; Conductor/wire-wrap connection; Plate thickness: 1.5 mm; 2.5 mm²; Pin spacing 5 mm; 8-pole; CAGE CLAMP®; 2,50 mm²; gray
Wago
826-160Modular, panel feedthrough center terminal block; Conductor/conductor connection; Plate thickness: 1 … 4 mm; 4 mm²; Pin spacing 7 mm; 1-pole; CAGE CLAMP®; 4,00 mm²; gray

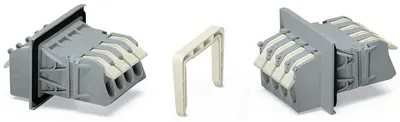

Wago
828-334Feedthrough terminal block; lever; Plate thickness: 3 mm; 16 mm²; Pin spacing 11.5 mm; 4-pole; CAGE CLAMP®; 16,00 mm²; gray
Compare Feedthrough Components
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Clamping units | Width | Fire load | Weight | GTIN |
|---|---|---|---|---|---|
| 231-636/017-000 | 6 | 45.28 mm / 1.783 inches | 0.141 MJ | 9 g | 4044918260091 |
| 826-162 | 4 | 15.5 mm / 0.61 inches | 0.24 MJ | 11.6 g | 4044918532679 |
| 231-608/017-000 | 8 | 54.8 mm / 2.157 inches | 0.192 MJ | 11.4 g | 4044918257763 |
| 826-168 | 16 | 57.5 mm / 2.264 inches | 0.856 MJ | 43.2 g | 4044918532822 |
| 226-114 | 1 | 6 mm / 0.236 inches | 0.054 MJ | 3.6 g | 4044918794442 |
| 826-160/000-016 | 2 | 7 mm / 0.276 inches | 0.08 MJ | 5.2 g | 4044918546843 |
| 826-160/000-006 | 2 | 7 mm / 0.276 inches | 0.088 MJ | 4.7 g | 4044918532464 |
| 826-171 | 22 | 78.5 mm / 3.091 inches | 1.164 MJ | 59 g | 4044918532853 |
| 826-159 | 2 | 8.6 mm / 0.339 inches | 0.082 MJ | 4.7 g | 4044918532433 |
| 826-164 | 8 | 29.5 mm / 1.161 inches | 0.45 MJ | 22.3 g | 4044918532747 |
| 826-172 | 24 | 85.5 mm / 3.366 inches | 1.262 MJ | 64.1 g | 4044918532860 |
| 826-163 | 6 | 22.5 mm / 0.886 inches | 0.338 MJ | 16.8 g | 4044918532709 |
| 828-264/313-000 | 8 | 65.1 mm / 2.563 inches | 2.399 MJ | 103.4 g | 4050821157793 |
| 826-166 | 12 | 43.5 mm / 1.713 inches | 0.646 MJ | 32.5 g | 4044918532785 |
| 731-138/048-000 | 8 | 54.8 mm / 2.157 inches | 0.204 MJ | 13 g | 4044918269841 |
| 826-160 | 2 | 7 mm / 0.276 inches | 0.08 MJ | 4.5 g | 4044918532631 |
| 828-334 | 8 | 65.1 mm / 2.563 inches | 2.687 MJ | 121.5 g | 4050821148777 |
Common to all listed parts
| Ratings per | IEC/EN 60664-1 |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Approvals per | UL 1059 |
| Use group | B / C / D |
| Number of levels | 1 |
| Connection technology | CAGE CLAMP® |
