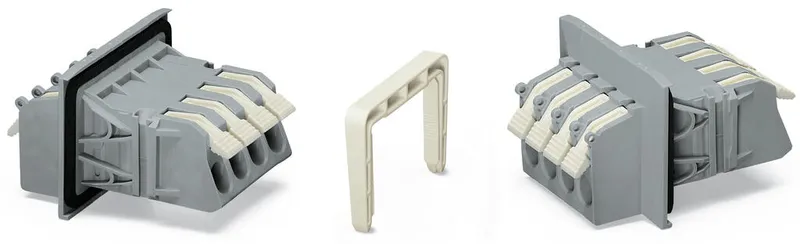

Wago 828-334
Feedthrough terminal block; lever; Plate thickness: 3 mm; 16 mm²; Pin spacing 11.5 mm; 4-pole; CAGE CLAMP®; 16,00 mm²; gray
- MPN
- 828-334
- Category
- Feedthrough Components
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Wago 828-334?
Feedthrough terminal block, 828 Series, lever
Enjoy effortless electrical installations with feedthrough terminal block (item number 828-334). Conductors can only be connected to feedthrough terminal block if their strip length is between 12 and 13 mm . Featuring two conductor terminals along with CAGE CLAMP®, this connector outperforms the competition. Our proven universal connection known as CAGE CLAMP® is the industry standard for connection technology and electrical interconnections. The item's dimensions are (65.1 x 48.6 x 78.9) mm (width x height x depth). Feedthrough terminal block is suitable for conductor cross sections ranging from 1.5 mm² to 16 mm².
Tin is used for coating the contact surfaces.
Specifications
Notes
| Variants: | Other pole numbers, Adapters for varying sheet panel thicknesses, Direct marking, Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/. |
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60664-1 |
| Nominal voltage (III/3) | 1000 V |
| Rated impulse withstand voltage (III / 3) | 8 kV |
| Rated voltage (III/2) | 1000 V |
| Rated impulse withstand voltage (III/2) | 8 kV |
| Nominal voltage (II/2) | 1000 V |
| Rated impulse withstand voltage (II/2) | 8 kV |
| Rated current | 57 A |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Ratings per | IEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 1000 V / 1000 V / 1000 V |
| Rated impulse withstand voltage | 8 kV / 8 kV / 8 kV |
| Rated current | 57 A / 57 A / 57 A |
Electrical data - Ratings per UL
| Approvals per | UL 1059 |
| Rated voltage UL (Use Group B) | 600 V |
| Rated current UL (Use Group B) | 30 A |
| Rated voltage UL (Use Group C) | 600 V |
| Rated current UL (Use Group C) | 30 A |
| Approvals per | UL 1059 / UL 1059 / UL 1059 |
| Use group | B / C / D |
| Rated voltage | 600 V / 600 V |
| Rated current | 30 A / 30 A |
Electrical data - Ratings per CSA
| Approvals per | CSA |
| Rated voltage CSA (Use Group B) | 600 V |
| Rated current CSA (Use Group B) | 30 A |
| Rated voltage CSA (Use Group C) | 600 V |
| Rated current CSA (Use Group C) | 30 A |
| Approvals per | CSA / CSA / CSA |
| Use group | B / C / D |
| Rated voltage | 600 V / 600 V |
| Rated current | 30 A / 30 A |
Connection data
| Clamping units | 8 |
| Total number of potentials | 4 |
| Number of connection types | 2 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
| Actuation type | Lever |
| Solid conductor | 1.5 … 16 mm² / 16 … 6 AWG |
| Fine-stranded conductor | 1.5 … 16 mm² / 16 … 6 AWG |
| Fine-stranded conductor; with insulated ferrule | 1.5 … 10 mm² |
| Fine-stranded conductor; with uninsulated ferrule | 1.5 … 10 mm² |
| Strip length | 12 … 13 mm / 0.47 … 0.51 inches |
| Pole number | 4 |
Physical data
| Pin spacing | 11.5 mm / 0.453 inches |
| Width | 65.1 mm / 2.563 inches |
| Height | 48.6 mm / 1.913 inches |
| Depth | 78.9 mm / 3.106 inches |
Mechanical data
| Housing sheet thickness | 3 … 3 mm / 0.118 … 0.118 inches |
| Mounting type | Locking claw |
| Mounting type | Feed-through mounting |
Material data
| Note (material data) | Information on material specifications can be found here |
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin |
| Fire load | 2.687 MJ |
| Weight | 121.5 g |
Environmental requirements
| Limit temperature range | -60 … +105 °C |
| Processing temperature | -35 … +60 °C |
Commercial data
| Product Group | 4 (Printed Circuit Connectors) |
| PU (SPU) | 15 pcs |
| Packaging type | bag |
| Country of origin | CN |
| GTIN | 4050821148777 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
| eCl@ss 10.0 | 27-14-11-34 |
| eCl@ss 9.0 | 27-14-11-34 |
| ETIM 9.0 | EC001283 |
| ETIM 10.0 | EC001283 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| REACH Candidate List Substance | Perfluorobutane sulfonic acid (PFBS) and its salts |
| RoHS Compliance Status | Compliant,No Exemption |
| SCIP notification number (Austria) | 0d734595-b959-4481-9e24-30848b1e4c59 |
| SCIP notification number (Belgium) | 9541b29a-e66a-4057-8d23-5fc290967632 |
| SCIP notification number (Bulgaria) | 3734b5be-3528-42b4-8a5a-5dd03bb0cea1 |
| SCIP notification number (Czech Republic) | 55b8ed86-163e-4a8a-b21e-c45d10ae48d4 |
| SCIP notification number (Denmark) | 8d6b435d-e6df-4a1f-9f1a-4ed8f880bc26 |
| SCIP notification number (Finland) | ee92680d-3320-41b2-950e-1552139d0615 |
| SCIP notification number (France) | 82d1ef36-b6a7-4ec7-a933-9ee44eff2a31 |
| SCIP notification number (Germany) | 53c0bf5c-8b50-4ab0-a882-e0acad435acd |
| SCIP notification number (Hungary) | 75a68f21-0f78-446a-84a7-00b131e85d43 |
| SCIP notification number (Italy) | bcff2cba-dc35-4397-ab96-91173936d8fa |
| SCIP notification number (Netherlands) | 2c2b2543-7430-49d7-bd72-5293c711a5a6 |
| SCIP notification number (Poland) | 87b40070-b129-4cf7-9aab-3462de5f5d5c |
| SCIP notification number (Romania) | c0b2317f-ecc7-4117-8873-9a67a067a90c |
| SCIP notification number (Sweden) | e495909f-40dd-4a6f-be51-7ceb74fe1f28 |
