Wago 828-264/313-000

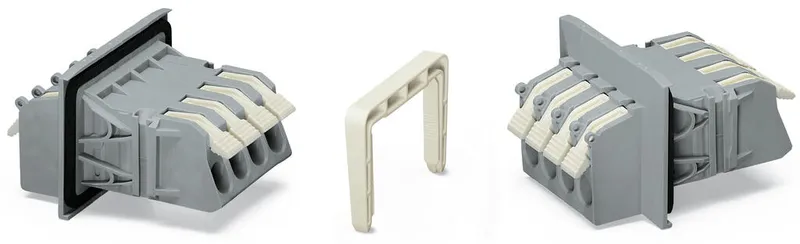

Feedthrough terminal block; lever; Plate thickness: 3 mm; 16 mm²; Pin spacing 11.5 mm; 3-pole; CAGE CLAMP®; 16,00 mm²; gray
- MPN
- 828-264/313-000
- Category
- Feedthrough Components
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Wago 828-264/313-000?
Feedthrough terminal block, 828 Series, with 11.5 mm pin spacing
Our feedthrough terminal block (item number 828-264/313-000) ensures effortless electrical installations. Ensure that the strip lengths are between 12 and 13 mm when connecting conductors to feedthrough terminal block. This product features two conductor terminals and utilizes CAGE CLAMP®. Our reliable and maintenance-free CAGE CLAMP® connection makes it easy to connect all types of conductors without having to prepare the conductor. For example, you don't need to crimp ferrules. Dimensions: (65.1 x 48.6 x 79.1) mm (width x height x depth). Feedthrough terminal block is suitable for conductor cross sections ranging from 1.5 mm² to 16 mm².
The contact surface is coated with tin.
Specifications
Notes
| Variants: | Other pole numbers, Adapters for varying sheet panel thicknesses, Direct marking, Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/. |
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60664-1 |
| Nominal voltage (III/3) | 1000 V |
| Rated impulse withstand voltage (III / 3) | 8 kV |
| Rated voltage (III/2) | 1000 V |
| Rated impulse withstand voltage (III/2) | 8 kV |
| Nominal voltage (II/2) | 1000 V |
| Rated impulse withstand voltage (II/2) | 8 kV |
| Rated current | 57 A |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Ratings per | IEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 1000 V / 1000 V / 1000 V |
| Rated impulse withstand voltage | 8 kV / 8 kV / 8 kV |
| Rated current | 57 A / 57 A / 57 A |
Electrical data - Ratings per UL
| Approvals per | UL 1059 |
| Rated voltage UL (Use Group B) | 600 V |
| Rated current UL (Use Group B) | 30 A |
| Rated voltage UL (Use Group C) | 600 V |
| Rated current UL (Use Group C) | 30 A |
| Approvals per | UL 1059 / UL 1059 / UL 1059 |
| Use group | B / C / D |
| Rated voltage | 600 V / 600 V |
| Rated current | 30 A / 30 A |
Electrical data - Ratings per CSA
| Approvals per | CSA |
| Rated voltage CSA (Use Group B) | 600 V |
| Rated current CSA (Use Group B) | 30 A |
| Rated voltage CSA (Use Group C) | 600 V |
| Rated current CSA (Use Group C) | 30 A |
| Approvals per | CSA / CSA / CSA |
| Use group | B / C / D |
| Rated voltage | 600 V / 600 V |
| Rated current | 30 A / 30 A |
Connection data
| Clamping units | 8 |
| Total number of potentials | 3 |
| Number of connection types | 2 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
| Actuation type | Lever |
| Solid conductor | 1.5 … 16 mm² / 16 … 6 AWG |
| Fine-stranded conductor | 1.5 … 16 mm² / 16 … 6 AWG |
| Fine-stranded conductor; with insulated ferrule | 1.5 … 10 mm² |
| Fine-stranded conductor; with uninsulated ferrule | 1.5 … 10 mm² |
| Strip length | 12 … 13 mm / 0.47 … 0.51 inches |
| Pole number | 4 |
Physical data
| Pin spacing | 11.5 mm / 0.453 inches |
| Width | 65.1 mm / 2.563 inches |
| Height | 48.6 mm / 1.913 inches |
| Depth | 79.1 mm / 3.114 inches |
Mechanical data
| Housing sheet thickness | 3 … 3 mm / 0.118 … 0.118 inches |
| Mounting type | Locking claw |
| Mounting type | Feed-through mounting |
Material data
| Note (material data) | Information on material specifications can be found here |
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin |
| Fire load | 2.399 MJ |
| Weight | 103.4 g |
Environmental requirements
| Limit temperature range | -60 … +105 °C |
| Processing temperature | -35 … +60 °C |
Commercial data
| Product Group | 4 (Printed Circuit Connectors) |
| PU (SPU) | 20 pcs |
| Packaging type | box |
| Country of origin | CN |
| GTIN | 4050821157793 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
| ETIM 9.0 | EC001283 |
| ETIM 10.0 | EC001283 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| REACH Candidate List Substance | Perfluorobutane sulfonic acid (PFBS) and its salts |
| RoHS Compliance Status | Compliant,No Exemption |
| SCIP notification number (Austria) | 8fdf0b57-c889-4867-a568-413226867de6 |
| SCIP notification number (Belgium) | 5a43bf77-af4d-46f5-b9ce-6910d0cab19e |
| SCIP notification number (Bulgaria) | 7716ae8c-aa4f-4159-9cf7-8fc80c1791cf |
| SCIP notification number (Czech Republic) | 8d3b5ac1-ae6b-4d76-89d8-704f26aeb15e |
| SCIP notification number (Denmark) | a7af41f0-5bb1-4318-97ae-34919452595f |
| SCIP notification number (Finland) | 0cd84b89-1157-4e89-b0af-bc6cfdd94fcc |
| SCIP notification number (France) | dcb20770-96b3-4e7c-a7df-1af600efb876 |
| SCIP notification number (Germany) | 29c8bae2-5260-4853-bc91-52bdf2117ef1 |
| SCIP notification number (Hungary) | 052b0a43-1ed8-4a4f-a3f3-c049795e69dc |
| SCIP notification number (Italy) | 9597eac0-8f66-4ae7-9a1b-6225bd5bc016 |
| SCIP notification number (Netherlands) | 55e16641-b028-4ff5-a612-de4424d7fa74 |
| SCIP notification number (Poland) | 980d9bec-b3d5-4341-bf52-54a2ac63a616 |
| SCIP notification number (Romania) | 7a10bcfa-5e63-43b9-87ea-7398aaa88e06 |
| SCIP notification number (Sweden) | 97c59d19-bae8-4fe1-97f4-bc14483ec512 |
