Schneider Electric

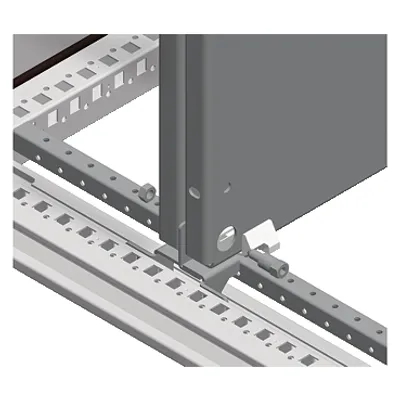

NSYSBTBBrackets for fixing mounting plates in back toback position, PanelSeT SFN, PanelSeT SF, set of 4
PanelSet SF Parts
Schneider Electric

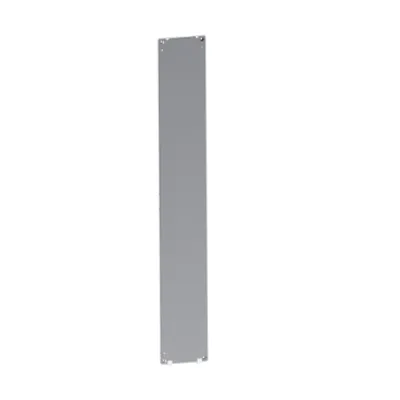

NSYMP224Plain mounting plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure H2200 W400mm, galvanized steel
Schneider Electric
NSYMP204Plain mounting plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure H2000 W400mm, galvanized steel
Schneider Electric
NSYMP184Plain mounting plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure H1800 W400mm, galvanized steel
Schneider Electric
NSYSIMP22Intermediate mounting plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure H2200mm , galvanized steel
Schneider Electric
NSYSIMP20Intermediate mounting plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure H2000mm , galvanized steel
Schneider Electric
NSYSIMP18Intermediate mounting plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure H1800mm , galvanized steel
Schneider Electric

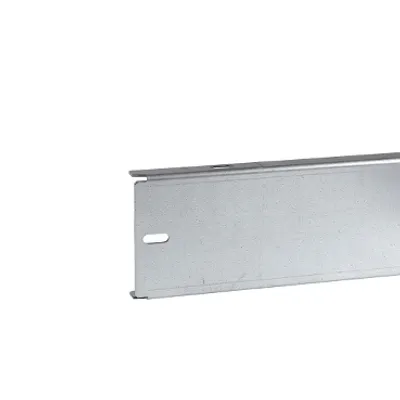

NSYSIMP16Intermediate mounting plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure H1600mm , galvanized steel
Schneider Electric
NSYSIMP14Intermediate mounting plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure H1400mm , galvanized steel
Schneider Electric
NSYSIMP12Intermediate mounting plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure H1200mm , galvanized steel
Schneider Electric
NSYMP228Plain mounting plate, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure H2200 W800mm, galvanized steel
Schneider Electric
NSYMP226Plain mounting plate, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure H2200 W600mm, galvanized steel
Schneider Electric
NSYMP2212Plain mounting plate, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure H2200 W1200mm, galvanized steel
Schneider Electric
NSYMP2210Plain mounting plate, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure H2200 W1000mm, galvanized steel
Schneider Electric
NSYMP126Plain mounting plate, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure H1200 W600mm, galvanized steel
Schneider Electric

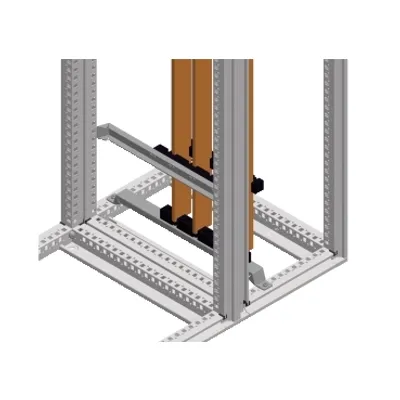

NSYBVS800L2 ver. busbar sup. In 3200A 10 mm bars. Bars distance 115mm. For 800mm widths
Schneider Electric

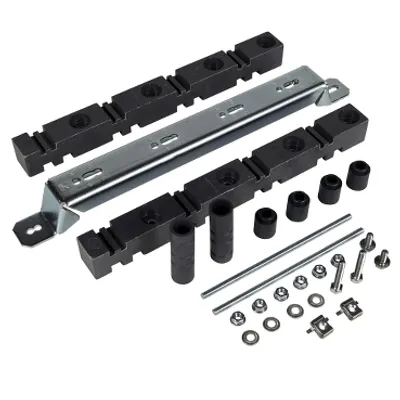

NSYAS800LLower sup. Ver. Busbars In 3200A 10mm bars. Bar distance 115mm. For 800mm witdhs
Schneider Electric

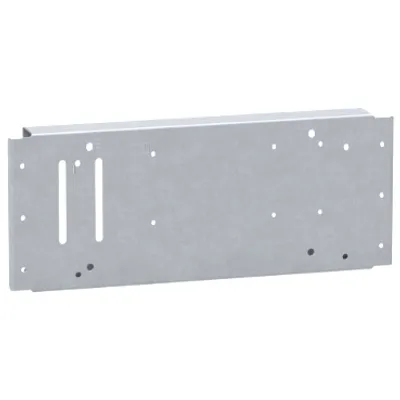

NSYFXMNWT60FWWithdrawable support Masterpact MTZ1 & NT, Fixed/Withdrawable suppport MTZ2 & NW, PanelSeT SFN, PanelSeT SF, W600
Schneider Electric

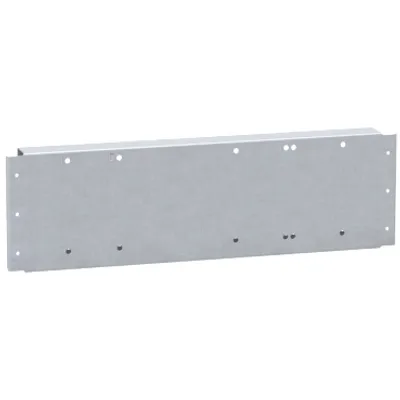

NSYFXMNW80WWithdrawable suppport for Masterpact MTZ2 & NW, PanelSeT SFN, PanelSeT SF, galvanized steel, W800
Schneider Electric

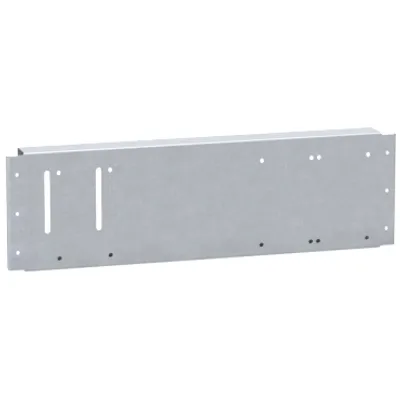

NSYFXMNW80FFixed support for Masterpact MTZ2 & NW, PanelSeT SFN, PanelSeT SF, galvanized steel, W800
Schneider Electric

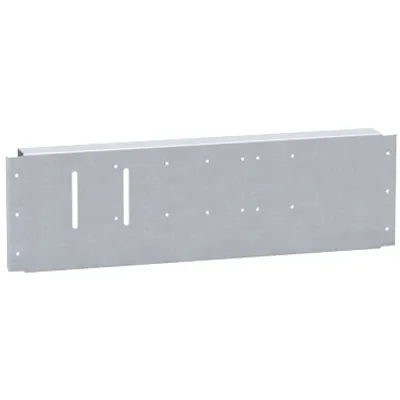

NSYFXMNT80WWithdrawable support for Masterpact MTZ1 & NT, PanelSeT SFN, PanelSeT SF, galvanized steel, W800
Schneider Electric

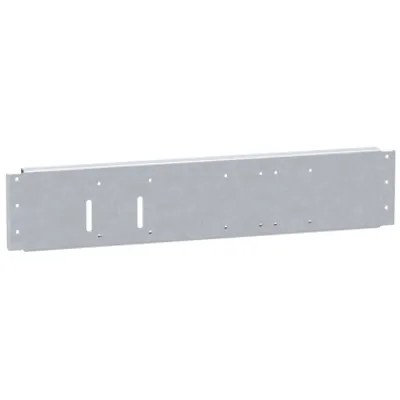

NSYFXMNT80FFixed support for Masterpact MTZ1 & NT, PanelSeT SFN, PanelSeT SF, galvanized steel, W800
Schneider Electric
NSYFXMNT60FFixed support for Masterpact MTZ1 & NT, PanelSeT SFN, PanelSeT SF, galvanized steel, W600
Compare PanelSet SF
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product or component type | Depth | Accessory / separate part category | Enclosure nominal dimensions | Mounting plate description |
|---|---|---|---|---|---|
| NSYSBTB | Fixing bracket | 185 mm | — | — | — |
| NSYMP224 | Mounting plate | 27 mm | Mounting accessory | - H: 2200 mm W: 400 mm | Plain |
| NSYMP204 | Mounting plate | 27 mm | Mounting accessory | - H: 2000 mm W: 400 mm | Plain |
| NSYMP184 | Mounting plate | 27 mm | Mounting accessory | - H: 1800 mm W: 400 mm | Plain |
| NSYSIMP22 | Mounting plate | — | Mounting accessory | - | Intermediate plain |
| NSYSIMP20 | Mounting plate | — | Mounting accessory | - | Intermediate plain |
| NSYSIMP18 | Mounting plate | — | Mounting accessory | - | Intermediate plain |
| NSYSIMP16 | Mounting plate | — | Mounting accessory | - | Intermediate plain |
| NSYSIMP14 | Mounting plate | — | Mounting accessory | - | Intermediate plain |
| NSYSIMP12 | Mounting plate | — | Mounting accessory | - | Intermediate plain |
| NSYMP228 | Mounting plate | 27 mm | Mounting accessory | - H: 2200 mm W: 800 mm | Plain |
| NSYMP226 | Mounting plate | 27 mm | Mounting accessory | - H: 2200 mm W: 600 mm | Plain |
| NSYMP2212 | Mounting plate | 27 mm | Mounting accessory | - | Plain |
| NSYMP2210 | Mounting plate | 27 mm | Mounting accessory | - H: 2200 mm | Plain |
| NSYMP126 | Mounting plate | 27 mm | Mounting accessory | - H: 1200 mm W: 600 mm | Plain |
| NSYBVS800L | Busbar support | 39 mm | Busbar accessory | - | — |
| NSYAS800L | Bar support | 39 mm | Support accessory | - | — |
| NSYFXMNWT60FW | Mounting plate | 230 mm | Mounting accessory | — | Pre-punched |
| NSYFXMNW80W | Mounting plate | 230 mm | Mounting accessory | — | Pre-punched |
| NSYFXMNW80F | Mounting plate | 230 mm | Mounting accessory | — | Pre-punched |
| NSYFXMNT80W | Mounting plate | 230 mm | Mounting accessory | — | Pre-punched |
| NSYFXMNT80F | Mounting plate | 155 mm | Mounting accessory | — | Pre-punched |
| NSYFXMNT60F | Mounting plate | 155 mm | Mounting accessory | — | Pre-punched |
| NSYBVS800 | Busbar support | 39 mm | Busbar accessory | - | — |
Common to all listed parts
| Quantity per set | Set of 1 |
